Telecom Behnke 20-0095 GSM set 1
|
on request |
|
| Delivery time from supplier's stock (ca.) 10 workdaysinfo_outline | |
| Lieske Part No.: | 158502 |
|---|---|
| Mfg Part No: | 20-0095 |
| Weight: | 0.5 kg |
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke 20-0095:

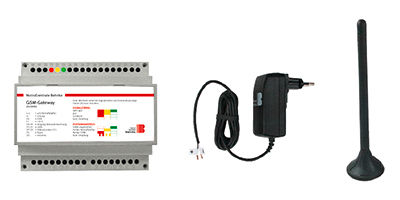

20-0092 GSM Gateway • for DIN rail mounting (6 modules) • 1 A / B port (27 mA / 24 V) for the emergency telephone • 2 a / b ports (together 27 mA / 24 V) for the engine room cabin telephone and the fire brigade interface • Connected via screw terminals • Antenna connector: SMA • Supply voltage: 12 VDC (9 V to 18 V), min. 4 W, max. 1.25 A • Adjustable stopping relay: max. 30 VDC, max. 2 A, 60 W;
Max.30 VAC, max. 2 A 6.5 VA
• Automatic shutdown of the elevator at the GSM network failure or power outage
• Emergency supply: 27 mA loop current, ringing voltage 31 VAC, 50 Hz
• LED display for signal strength and error codes
• 1 alarm input for battery monitoring
• voice message for internal message
• GSM network: Quadband 20-0093 antenna for GSM gateway • Includes connection cable (2 m). • SMA connector • with magnetic 20-9585 mains adapter • AC adapter • Input voltage: 240V AC • Output voltage: 15V DC • Output current: 1200mA • Dimensions (L x W x D): 113 x 87 x 60 mm
Max.30 VAC, max. 2 A 6.5 VA
• Automatic shutdown of the elevator at the GSM network failure or power outage
• Emergency supply: 27 mA loop current, ringing voltage 31 VAC, 50 Hz
• LED display for signal strength and error codes
• 1 alarm input for battery monitoring
• voice message for internal message
• GSM network: Quadband 20-0093 antenna for GSM gateway • Includes connection cable (2 m). • SMA connector • with magnetic 20-9585 mains adapter • AC adapter • Input voltage: 240V AC • Output voltage: 15V DC • Output current: 1200mA • Dimensions (L x W x D): 113 x 87 x 60 mm
