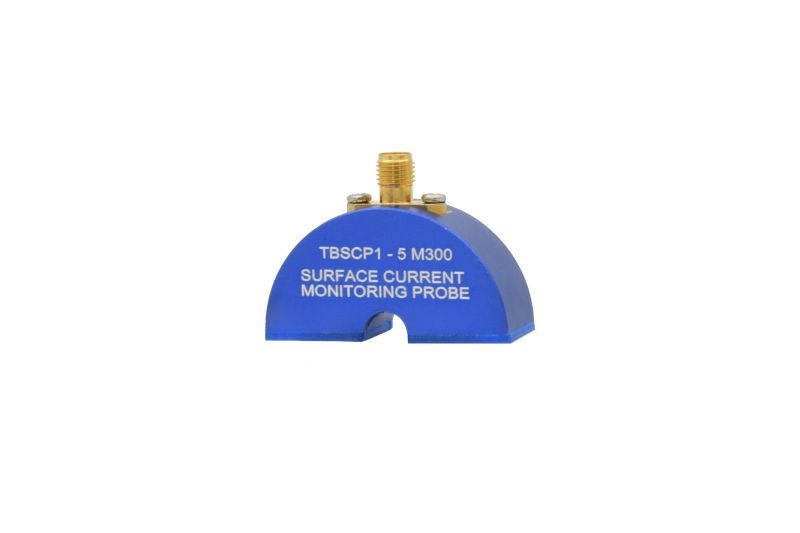

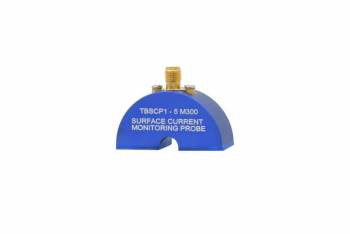

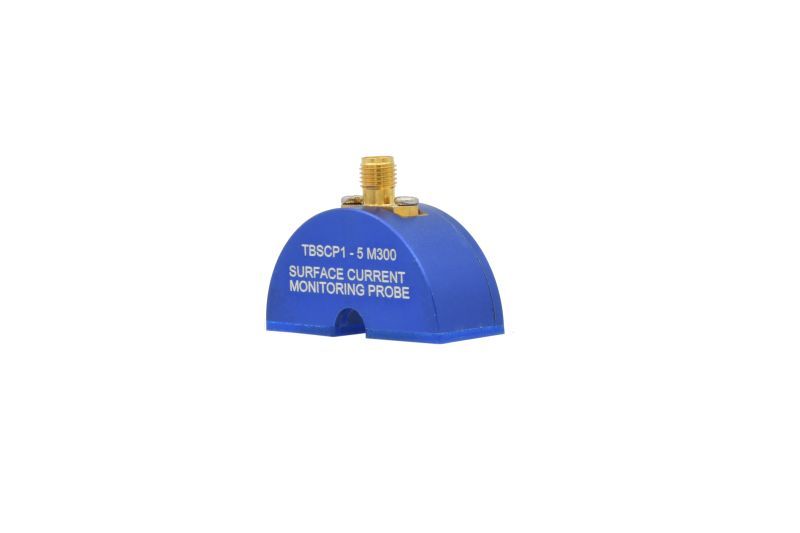

TBSCP1-5M300 RF Surface Current Monitoring Probe
The TBSCP1-5M300 is an RF surface current monitoring sensor that extends the Tekbox range of low-cost EMC preamplifiers.
The probe has a very flat response from 5 MHz to 300 MHz and is characterized over the frequency range of 30 kHz to 400 MHz. The TBSCP1-5M300 is for RF current monitoring applications that need to measure RF currents flowing on surfaces such as PCB ground planes or traces, metal planes or wires.
The footprint of the RF current monitoring probe is 40 mm x 15 mm. The transfer impedance is -7 dB Ohms with a typical 3 dB bandwidth from 5 MHz to 300 MHz.
SPECIFICATIONS Characteristic frequency range: 30 kHz to 400 MHz Transmission impedance: -7 dB Ohm with 3 dB bandwidth from 5 MHz to 300 MHz Suppression of the orthogonal field: Typ. > 15 dB to 100 MHz Footprint: 40 mm x 15 mm Connector type: SMA female Primary current (DC - 400 Hz): 150 A Maximum primary current (RF): 12 A Max. core temperature: 125 °C
