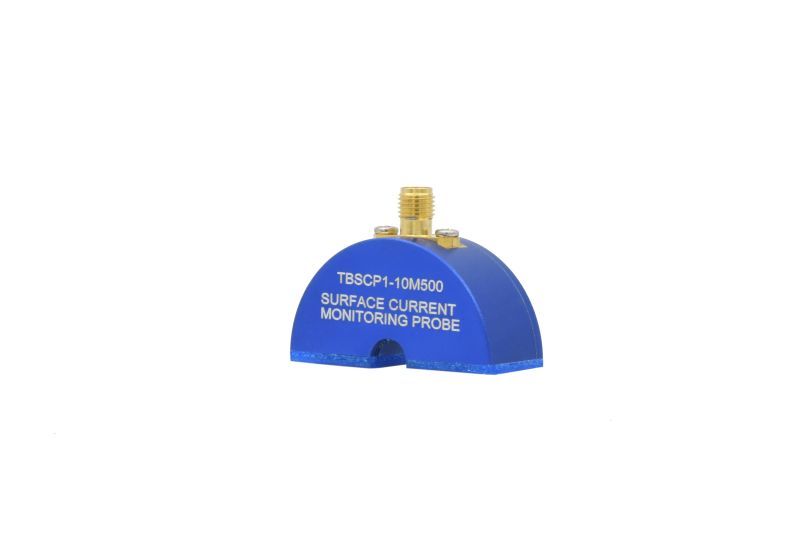

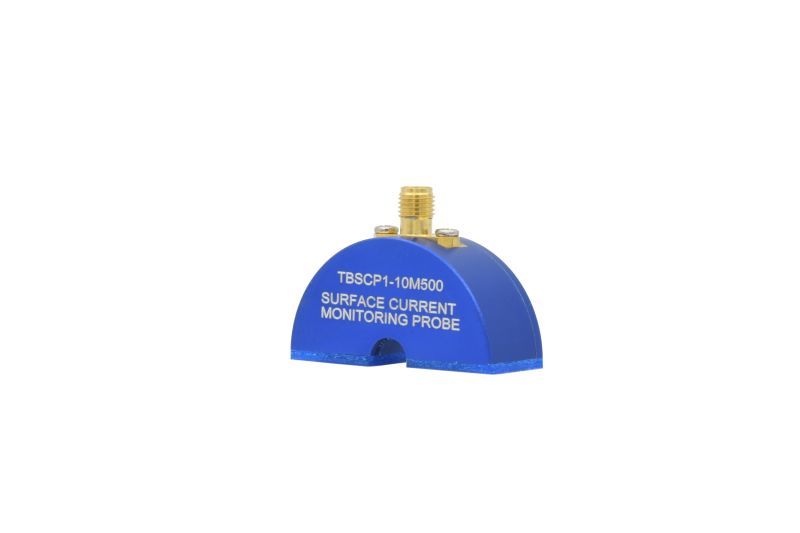

TekBox TBSCP1-10M500 RF Surface Current Monitoring Probe
|
-5% 542,34 EUR 570,89 EUR |
|
|
( 645,38 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1156142 |
|---|---|
| Mfg Part No: | TBSCP1-10M500 |
| Weight: | 0.5 kg |
Product information for Tekbox TBSCP1-10M500:
The TBSCP1-10M500 is an RF surface current monitoring sensor that extends the Tekbox range of low-cost EMC preamplifiers.
The probe has a very flat response from 10MHz to 500MHz and is characterized over the frequency range of 9kHz to 600MHz. The TBSCP1-10M500 is for RF current monitoring applications that need to measure RF currents flowing on surfaces such as PCB ground planes or traces, metal planes or wires.
The footprint of the RF current monitoring probe is 40mm x 15mm. The transfer impedance is -5dB Ohms with a typical 3dB bandwidth from 10MHz to 500MHz.
SPECIFICATIONS Characteristic frequency range: 30 kHz to 600 MHz Transmission impedance: -5 dB Ohm with 3 dB bandwidth from 10 MHz to 500 MHz Suppression of the orthogonal field: typ. > 15 dB to 100 MHz Footprint: 40 mm x 15 mm Connector type: SMA female Primary current (DC - 400 Hz): 150 A Maximum primary current (RF): 12 A Max. core temperature: 125 °C
Questions & answers
What is the delivery time of TekBox TBSCP1-10M500 RF Surface Current Monitoring Probe?
The article TekBox TBSCP1-10M500 RF Surface Current Monitoring Probe is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Tekbox TBSCP1-10M500 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TekBox TBSCP1-10M500 RF Surface Current Monitoring Probe always at the best possible price. We can give you a discount of 2% on TekBox TBSCP1-10M500 RF Surface Current Monitoring Probe if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
