Tekbox TBMA6-P
9 kHz - Passive Loop Antenna according to CISPR 16
|
1.087,44 EUR |
|
|
( 1.294,05 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2113273 |
|---|---|
| Mfg Part No: | TBMA6-P |
| Weight: | 1.8 kg |
Product information for Tekbox TBMA6-P:
The TBMA6-P is a passive loop antenna that expands the Tekbox range of cost-effective EMC pre-connection testers.

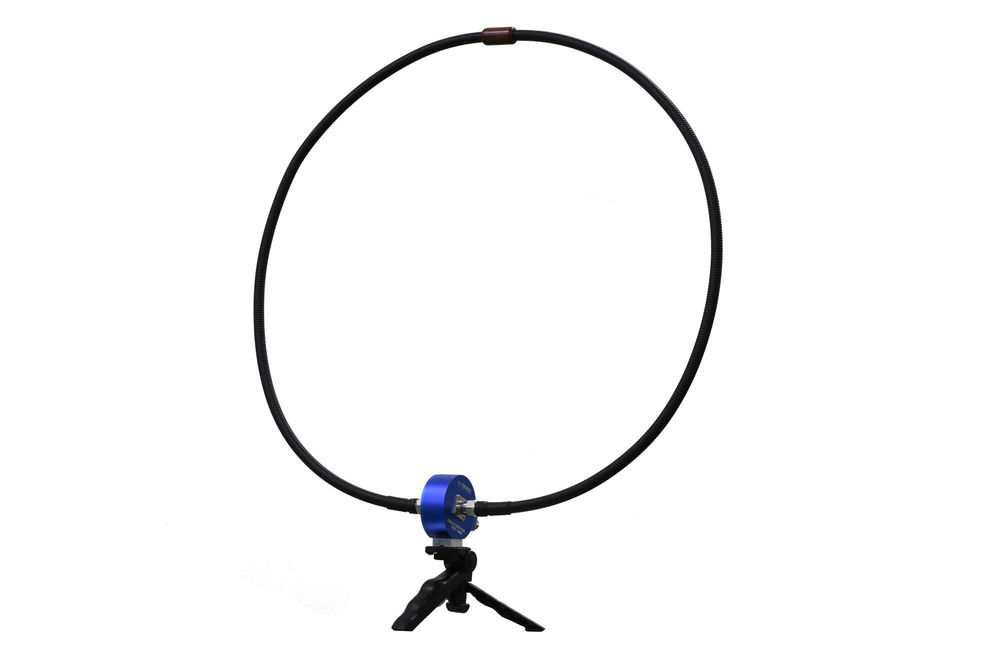

The loop antenna is designed for radiated emission measurements in the frequency range 9 kHz - 30 MHz in accordance with CISPR 16. The loop antenna has a diameter of 60 cm and provides sufficient sensitivity to perform all relevant measurements specified in the relevant CISPR standards for the frequency range 9 kHz - 30 MHz.

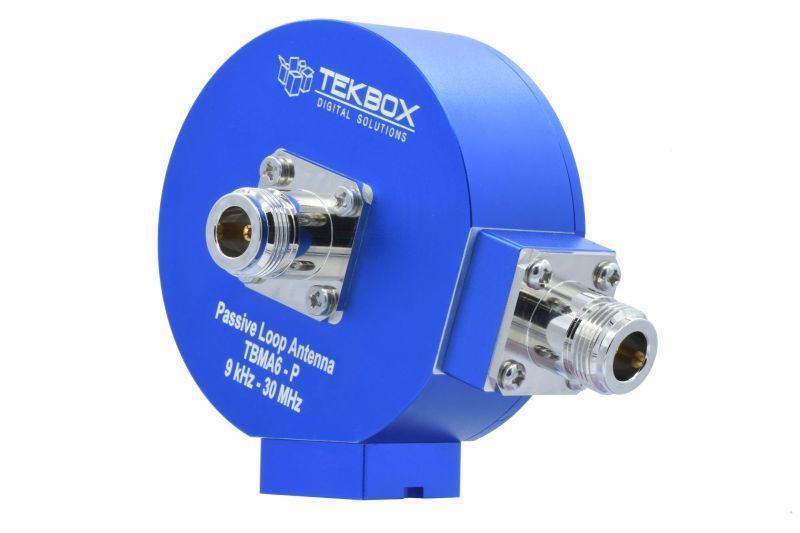

The loop is constructed from a corrugated coaxial cable and attached to the transducer with N connectors. This design provides flexibility for use with different loop diameters. An attachment with a ™" thread allows connection to standard tripods.
SPECIFICATIONS
Characteristic frequency range: 9 kHz to 30 MHz
Magnetic field antenna factor: -20 dB/Om @ 30 MHz, typ.
Electric field antenna factor: 31.5 dB/m@ 30 MHz, typ.
Sensitivity: -24 dBµA/m@ 30 MHz
Dimensions: ? 60 cm
Weight: 800 g
Connection type: N female
Fastening: s" thread
Questions & answers
What is the delivery time of Tekbox TBMA6-P 9 kHz - Passive Loop Antenna according to CISPR 16?
The article Tekbox TBMA6-P 9 kHz - Passive Loop Antenna according to CISPR 16 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Tekbox TBMA6-P to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Tekbox TBMA6-P 9 kHz - Passive Loop Antenna according to CISPR 16 always at the best possible price. We can give you a discount of 2% on Tekbox TBMA6-P 9 kHz - Passive Loop Antenna according to CISPR 16 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Tekbox TBMA6-P 9 kHz - Passive Loop Antenna according to CISPR 16
 |
TekBox TBMA6-CC30CM-D Slotted coaxial cable for 30 cm loop
TekBox TBMA6-CC30CM-D Slotted coaxial cable for 30cm loop Crimped slotted coaxial cable for a 30cm loop. For use with the TBMA6-P converter. Accessories for the TBMA6-P Lieske Part No.: 2113284 Mfg Part No: TBMA6-CC30CM-D |
