Tekbox TBMA1
Biconical Antenna 30 MHz to 1 GHz
|
641,78 EUR |
|
|
( 763,72 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 5 pieces | |
| Lieske Part No.: | 2037483 |
|---|---|
| Mfg Part No: | TBMA1 |
| Weight: | 4.5 kg |
Product information for Tekbox TBMA1:
Biconical antenna TBMA1
The TBMA1 is a small, lightweight, broadband biconical measurement antenna. With its moderate price, it is ideal for EMC pre-conformity tests with radiated noise and for generating defined field strengths.
It is characterized from 30 MHz to 1 GHz and has a directional characteristic similar to a dipole.

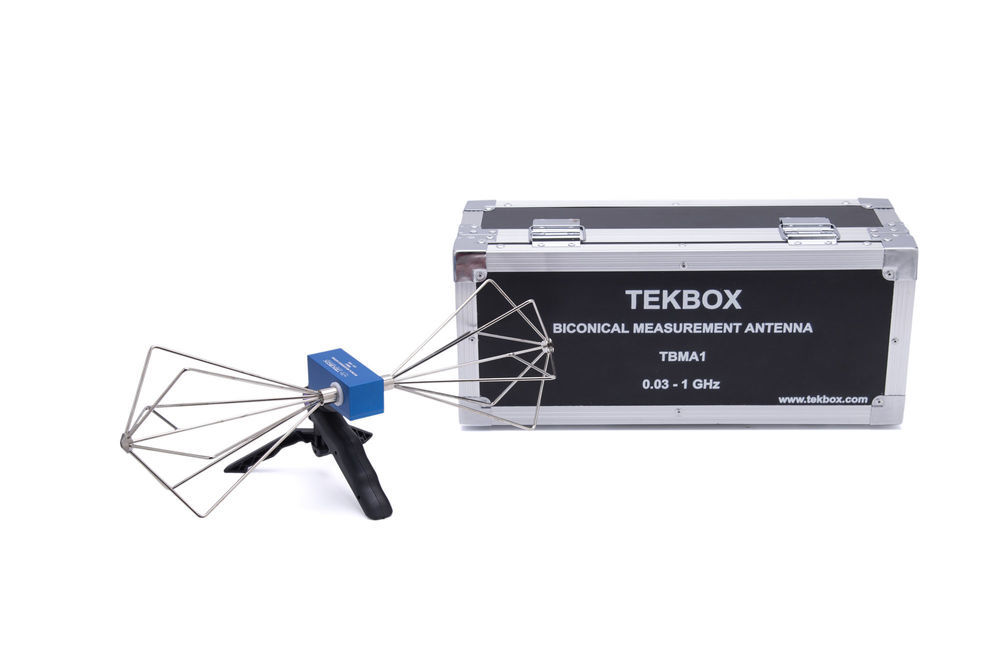

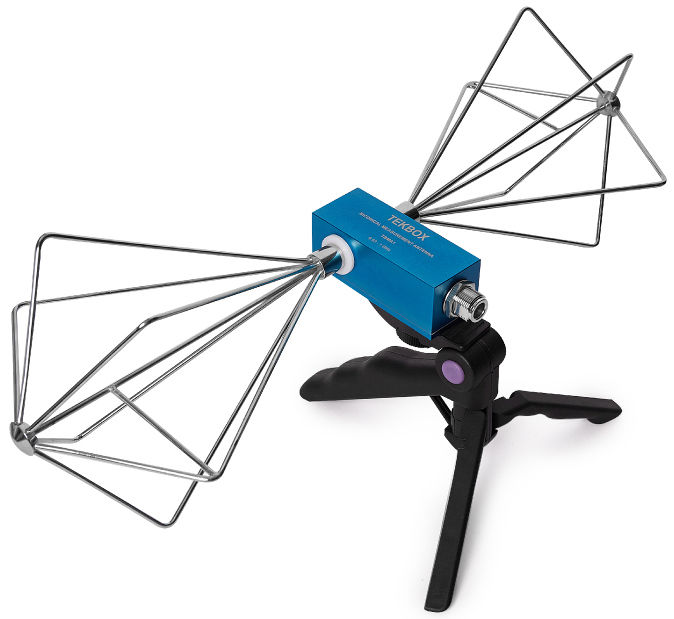

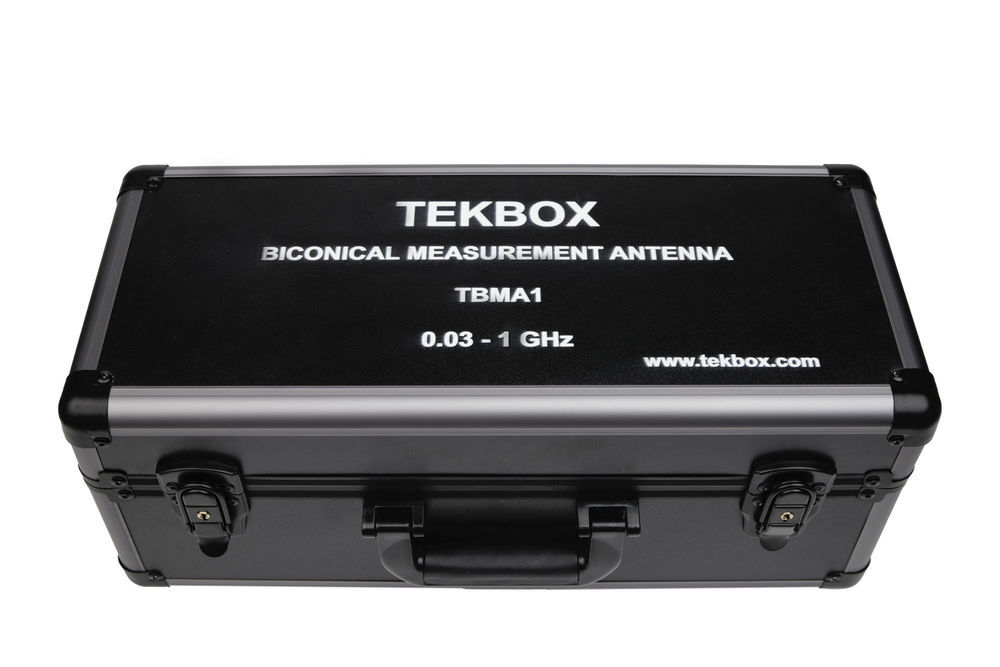

The TBMA1 comes in an aluminum case along with a pistol grip" tripod. A ¼ standard thread facilitates connection to most standard tripods.
The elements are corrosion-resistant and structurally secured against rotation. They are powered via a broadband balun with a load capacity of 2 W. They are also protected against static electricity.
SPECIFICATIONS
Type: passive biconical
Frequency range: 30 MHz - 1000MHz
Nominal impedance: 50 O
Maximum continuous RF input power: 2 W
Connection: N-type socket
Isotropic gain: -42.15 ... 1.78 dBi
Antenna factor: 16.30 ... 41, 91 dB/m
Voltage Standing Wave Ratio (VSWR) Max < 2.8

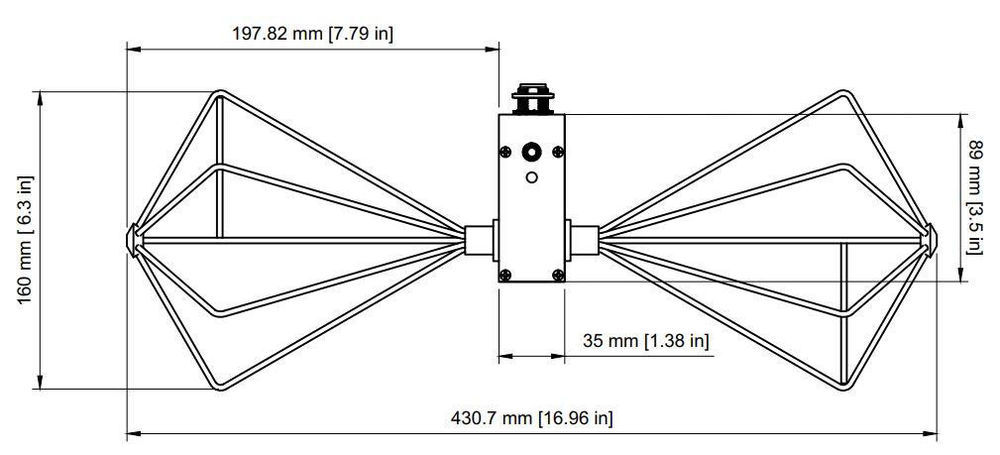

Length: 430 mm (43,2 cm ( 17 inch )) Tip-to-Peak
Diameter: 160 mm (16 cm ( 6,3 inch ))
Depth: 163 mm (16,3 cm ( 6,4 inch )) including housing
Weight: 0.46 kg (1.01 lbs)
Tripod adapter thread size: ¼"
The TBMA1 is a small, lightweight, broadband biconical measurement antenna. With its moderate price, it is ideal for EMC pre-conformity tests with radiated noise and for generating defined field strengths.
It is characterized from 30 MHz to 1 GHz and has a directional characteristic similar to a dipole.
The TBMA1 comes in an aluminum case along with a pistol grip" tripod. A ¼ standard thread facilitates connection to most standard tripods.
The elements are corrosion-resistant and structurally secured against rotation. They are powered via a broadband balun with a load capacity of 2 W. They are also protected against static electricity.
SPECIFICATIONS
Type: passive biconical
Frequency range: 30 MHz - 1000MHz
Nominal impedance: 50 O
Maximum continuous RF input power: 2 W
Connection: N-type socket
Isotropic gain: -42.15 ... 1.78 dBi
Antenna factor: 16.30 ... 41, 91 dB/m
Voltage Standing Wave Ratio (VSWR) Max < 2.8
Length: 430 mm (43,2 cm ( 17 inch )) Tip-to-Peak
Diameter: 160 mm (16 cm ( 6,3 inch ))
Depth: 163 mm (16,3 cm ( 6,4 inch )) including housing
Weight: 0.46 kg (1.01 lbs)
Tripod adapter thread size: ¼"
