Tekbox TBLPA1
1W high linear power amplifier, frequency range: 10MHz..1GHz

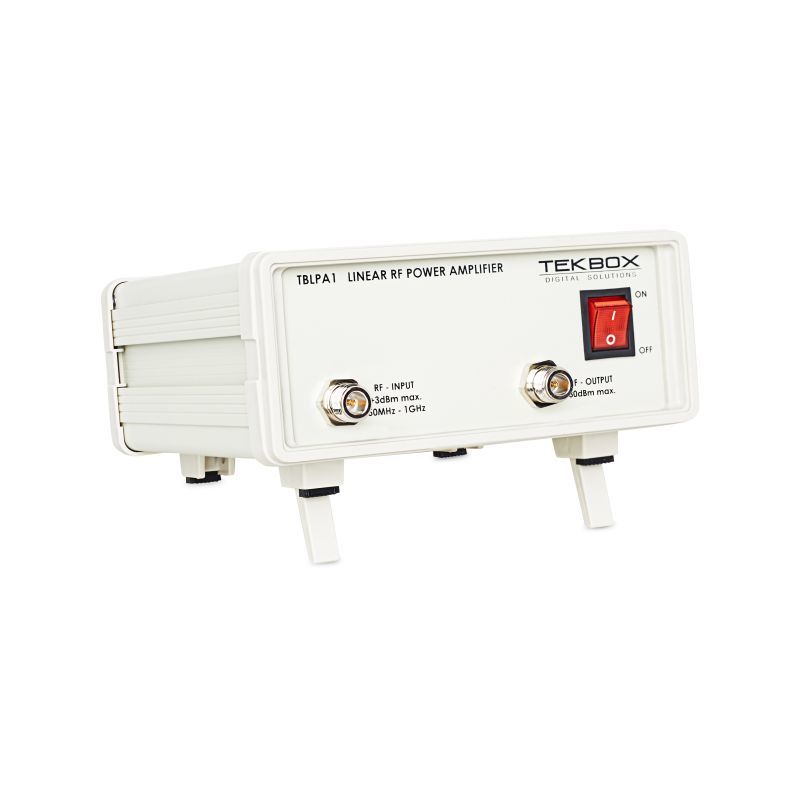

TBLPA1 Broadband Linear RF Power Amplifier
The TBLPA1 Broadband Linear Power Amplifier is a general purpose RF amplifier for test and measurement applications. It has an output power of up to 1 W and can be used in the frequency range from 10 MHz to 1 GHz and even beyond with reduced output power.
SPECIFICATIONS
Input / Output: 50 Ohm, N socket

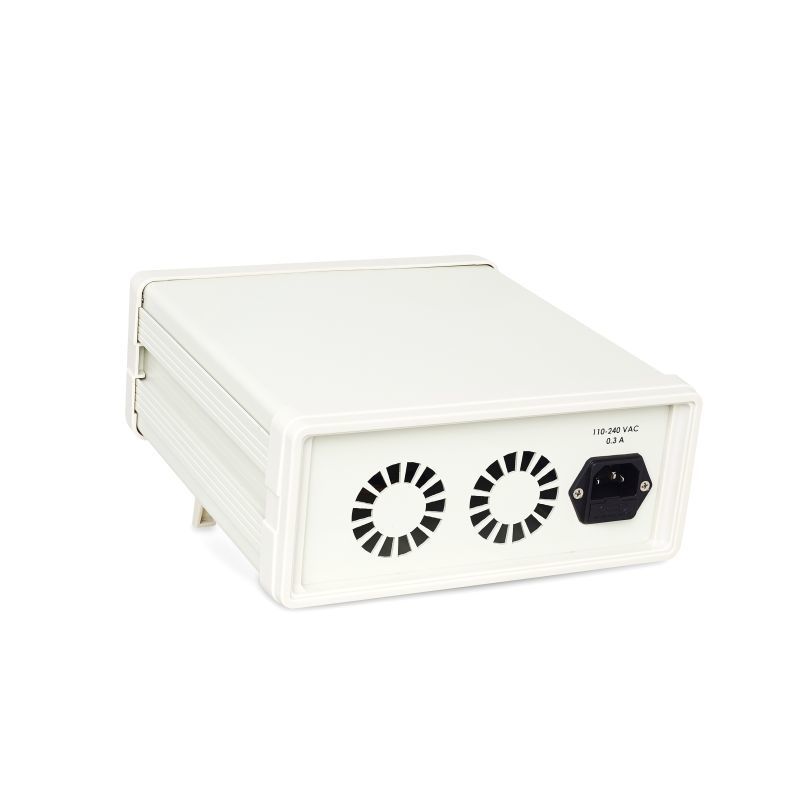

Supply voltage range: 110 V...240 V
Power consumption of the supply: 15 W
Operating temperature range: -20°C to 60°C
Frequency range: 50 MHz - 1 GHz, (3MHz - 1.3GHz with reduced output power)
Gain: 36dB typical, see Table 1 for details
1dB output compression point @ 10MHz: +29.5 dBm typ.
1dB output compression point at 100 MHz: +30.9 dBm typ.
1dB output compression point at 500 MHz: +31.3 dBm typ.
1dB output compression point at 1 GHz: +28.7 dBm typ. Noise
figure: 2.5 dB typ.
2nd harmonic, 50MHz, Pout=30dBm: 3 MHz 5 MHz 10 MHz 25 MHz 50 MHz 100 MHz 200 MHz 300 MHz 400 MHz 16 dB 34 dB 43 dB 42 dB 41 dB 40 dB 39 dB 38.5 dB 38.3 dB 500 MHz 600 MHz 700 MHz 800 MHz 900 MHz 1 GHz 1.1 GHz 1.2 GHz 1.3 GHz 38 dB 37.8 dB. 37dB 35.4dB 36.5dB 36.2 dB 35.5 dB 33.7 dB 32.1 dB APPLICATION
General purpose power amplifier
