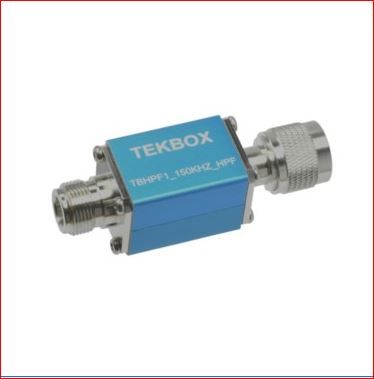

Tekbox TBHPF1-150kHz / high pass filter
|
100,44 EUR 103,91 EUR |
|
|
( 119,52 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Lieske Part No.: | 2082268 |
|---|---|
| Mfg Part No: | TBHPF1-150kHz |
| Weight: | 0.2 kg |
Product information for Tekbox TBHPF1-150kHz:
150 kHz high pass filter for protecting the RF inputs of spectrum analyzers or EMC receivers against high amplitude subharmonics and 50 Hz residual voltage in conducted emissions measurement setups.
SPECIFICATIONS
High pass filter, reflective, 50 Ohm
3dB bandwidth: 150 kHz - 3 GHz
Maximum input voltage: 100V 250V for < 5 sec.
Maximum allowable input current at frequencies < 150kHz and open output: 650 mA
Maximum input power at frequencies 300 kHz - 1 GHz: 10W
Connector: N plug / N socket
SPECIFICATIONS
High pass filter, reflective, 50 Ohm
3dB bandwidth: 150 kHz - 3 GHz
Maximum input voltage: 100V 250V for < 5 sec.
Maximum allowable input current at frequencies < 150kHz and open output: 650 mA
Maximum input power at frequencies 300 kHz - 1 GHz: 10W
Connector: N plug / N socket
Questions & answers
What is the delivery time of Tekbox TBHPF1-150kHz / high pass filter?
The article Tekbox TBHPF1-150kHz / high pass filter is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Tekbox TBHPF1-150kHz to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Tekbox TBHPF1-150kHz / high pass filter always at the best possible price. We can give you a discount of 2% on Tekbox TBHPF1-150kHz / high pass filter if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
