Tekbox TBCP3-1000
/ HF current converter up to 1GHz
|
-7% 630,90 EUR 675,96 EUR |
|
|
( 750,77 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 2113245 |
|---|---|
| Mfg Part No: | TBCP3-1000 |
| Weight: | 1 kg |
Product information for Tekbox TBCP3-1000:

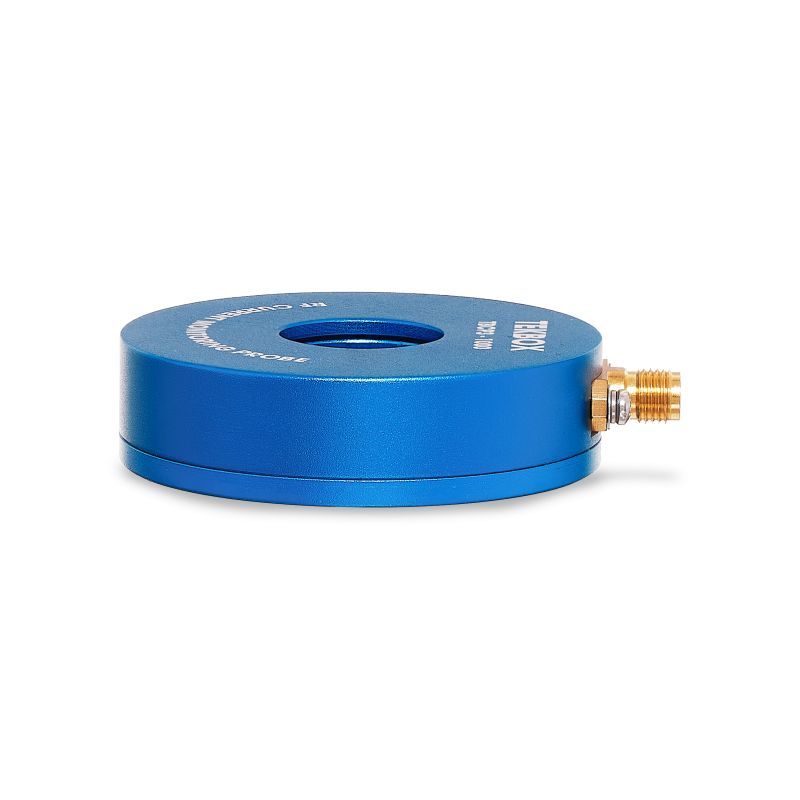

TBCP3-1000 RF Current Transducer The TBCP3-1000 is a fixed aperture RF current monitoring sensor. It has a very flat response with a 3dB bandwidth of 1 GHz and is characterized and usable over the frequency range from 30kHz to 1 GHz.
The aperture of the HF current measuring probe is 17 mm. Their transmission impedance is in the range from 3 MHz to 1 GHz, close to 20 dB Ohm.

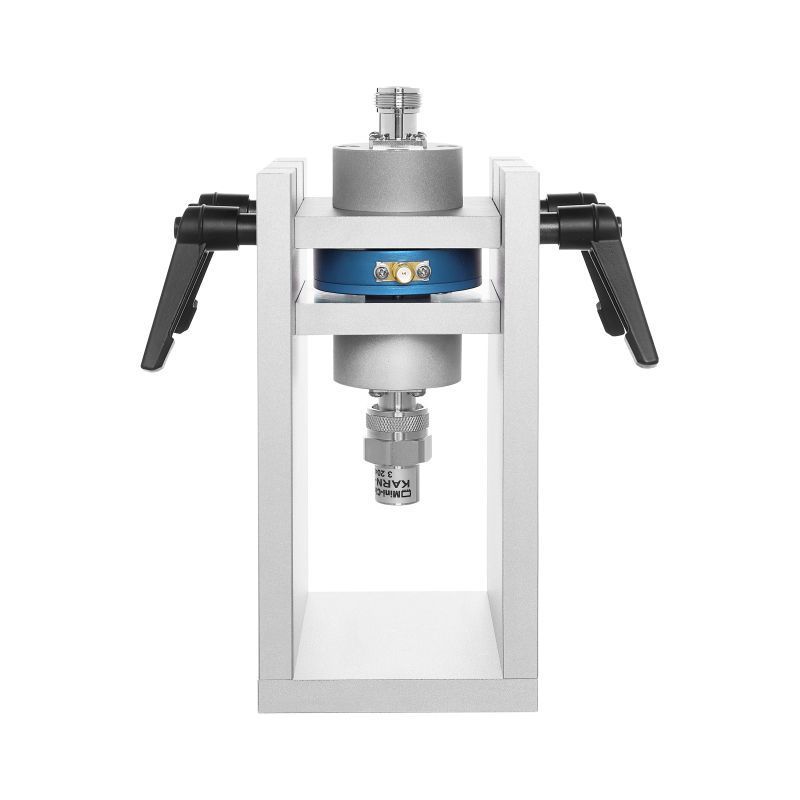

Tekbox supplies a calibration device that corresponds to the TBCP3 series of fixed aperture current sensors.
SPECIFICATIONSCharacteristic frequency range: 30 kHz to 1 GHz Opening diameter: 17 mm External diameter: 52 mm Height: approx. 14 mm Weight: 55 g Connector type: SMA female Transmission impedance: 20 dBO Primary current (DC - 400 Hz): 30 A Maximum primary current ( RF): 4 A Max. core temperature: 125 °C
The aperture of the HF current measuring probe is 17 mm. Their transmission impedance is in the range from 3 MHz to 1 GHz, close to 20 dB Ohm.
Tekbox supplies a calibration device that corresponds to the TBCP3 series of fixed aperture current sensors.
SPECIFICATIONSCharacteristic frequency range: 30 kHz to 1 GHz Opening diameter: 17 mm External diameter: 52 mm Height: approx. 14 mm Weight: 55 g Connector type: SMA female Transmission impedance: 20 dBO Primary current (DC - 400 Hz): 30 A Maximum primary current ( RF): 4 A Max. core temperature: 125 °C
