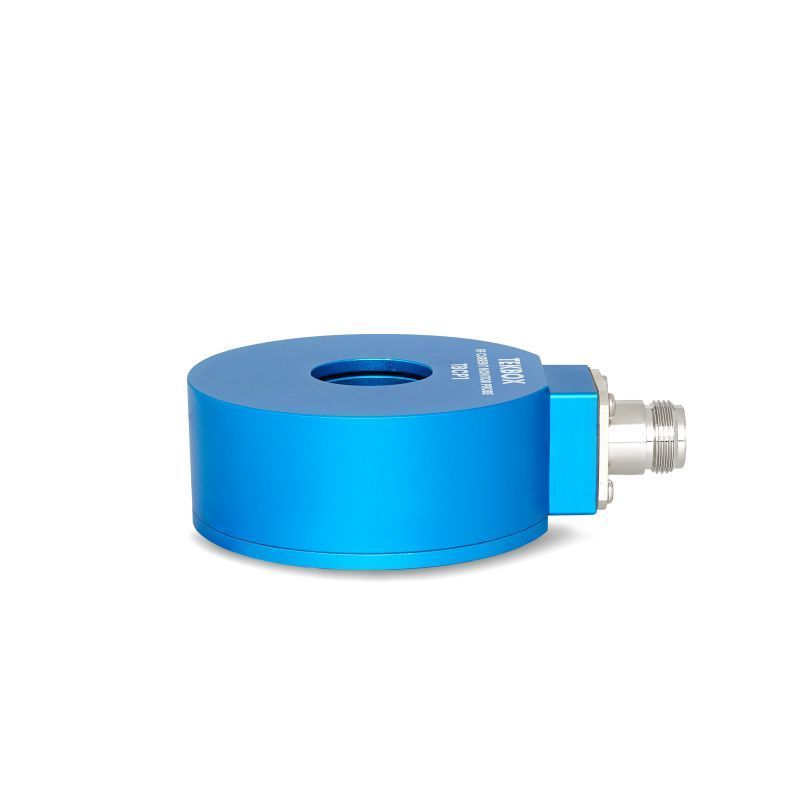

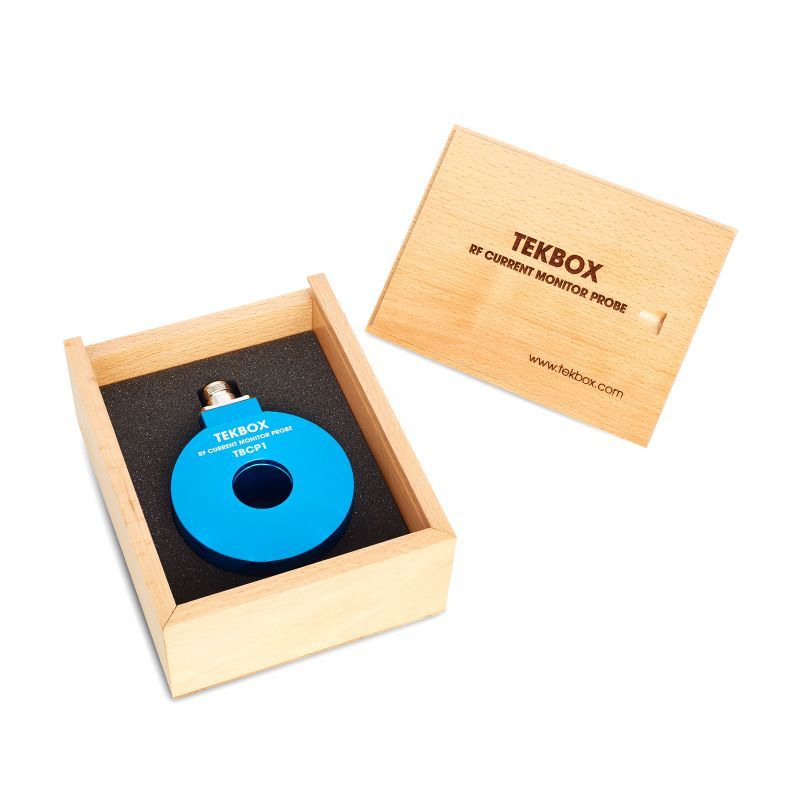

Tekbox TBCP1-500
/ HF current transformer up to 500MHz
|
-5% 442,53 EUR 465,82 EUR |
|
|
( 526,61 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 2037491 |
|---|---|
| Mfg Part No: | TBCP1-500 |
| Weight: | 1 kg |
Product information for Tekbox TBCP1-500:
The probe has a 3dB bandwidth of approximately 200 MHz and is marked and usable over the frequency range of 30 kHz to 500 MHz. Characterized frequency range: 10 kHz to 500 MHz
Opening diameter: 25 mm
Outer diameter: 76 mm
Height: 31 mm
Weight: 320 g
Connector type: N female
Transmission impedance: -6 to 20 dBO
Max. primary current (DC - 400 Hz): 80 A
Max. primary current (RF): 3A
Max. core temperature: 125°C
