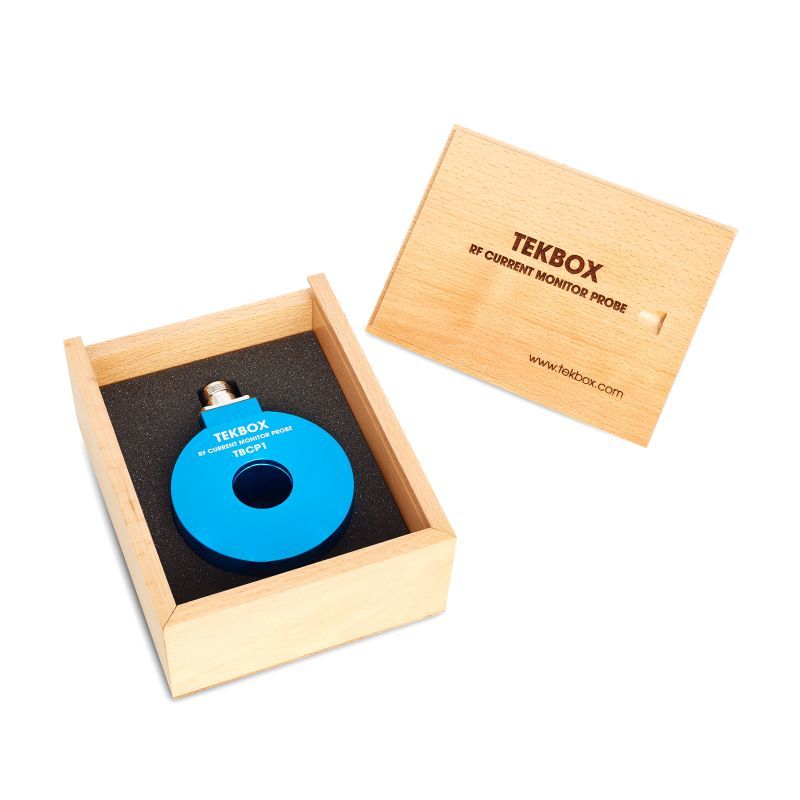

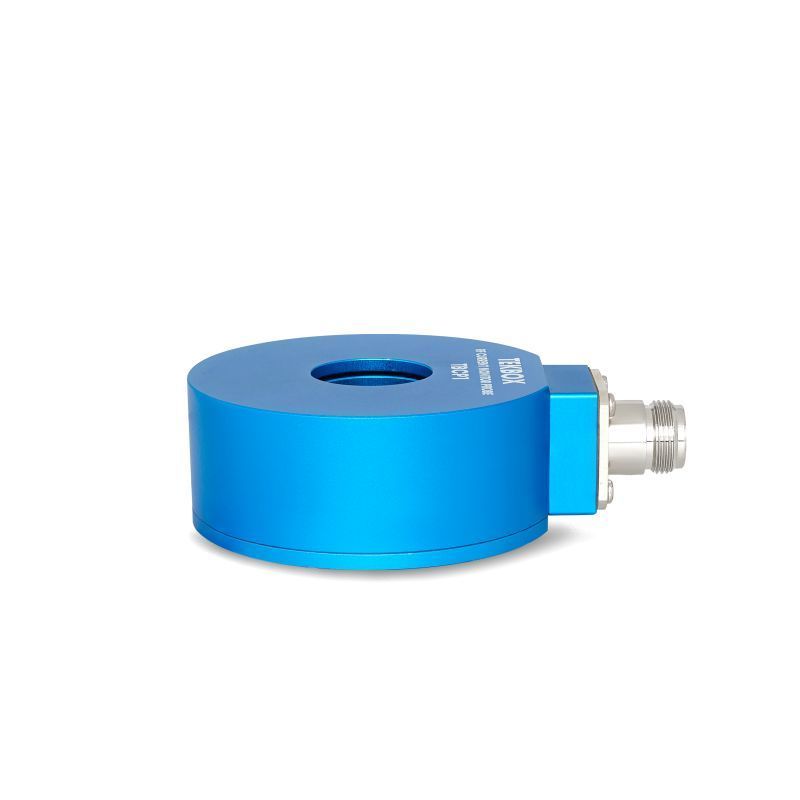

Tekbox TBCP1-250
/ HF current transformer up to 250MHz
|
-5% 331,61 EUR 349,07 EUR |
|
|
( 394,62 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2113238 |
|---|---|
| Mfg Part No: | TBCP1-250 |
| Weight: | 1 kg |
Product information for Tekbox TBCP1-250:

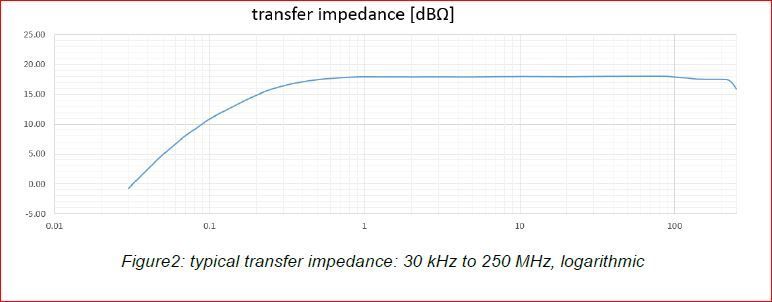

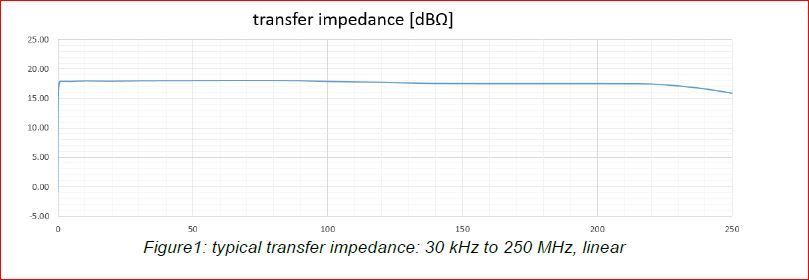

The probe has a very flat response with a 3dB bandwidth of 250 MHz and is characterized and usable over the frequency range from 30kHz to 250 MHz. The aperture of the RF current monitoring probe is 25mm. Its transmission impedance is

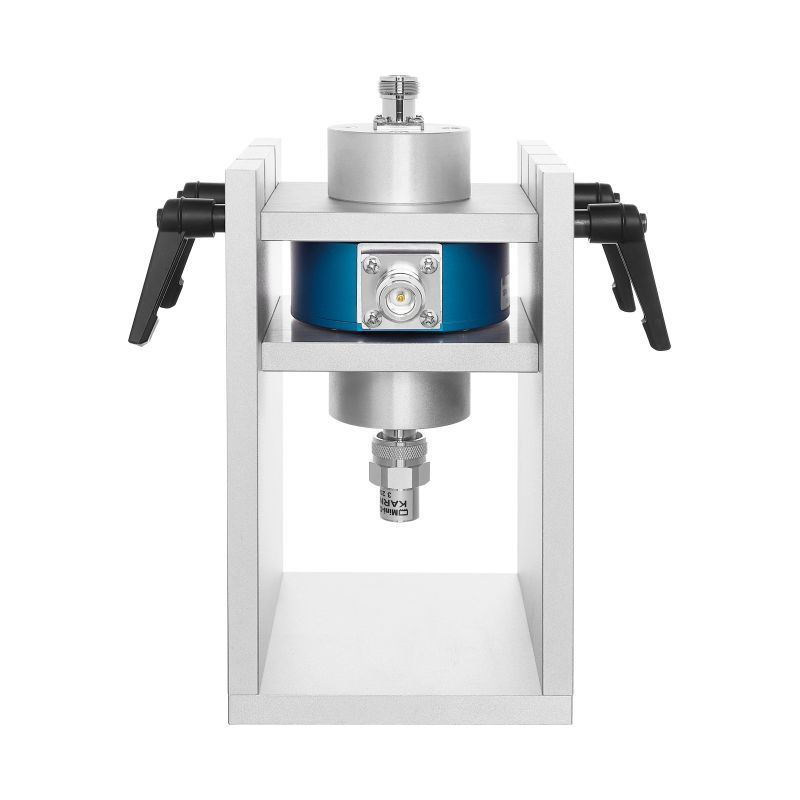

16 dB Ohm in the range of 300 kHz to 250 MHz Tekbox supplies a calibration device that corresponds to the TBCP1 current probe series.
SPECIFICATIONS Characteristic frequency range: 30 kHz to 250 MHz Opening diameter: 25 mm External diameter: 76 mm Height: approx. 31 mm Connection type: N female Transmission impedance: 0 to 18 dBO Primary current (DC - 400 Hz): 80 A Maximum primary current (RF) : 3 A Max. core temperature: 125 °CQuestions & answers
