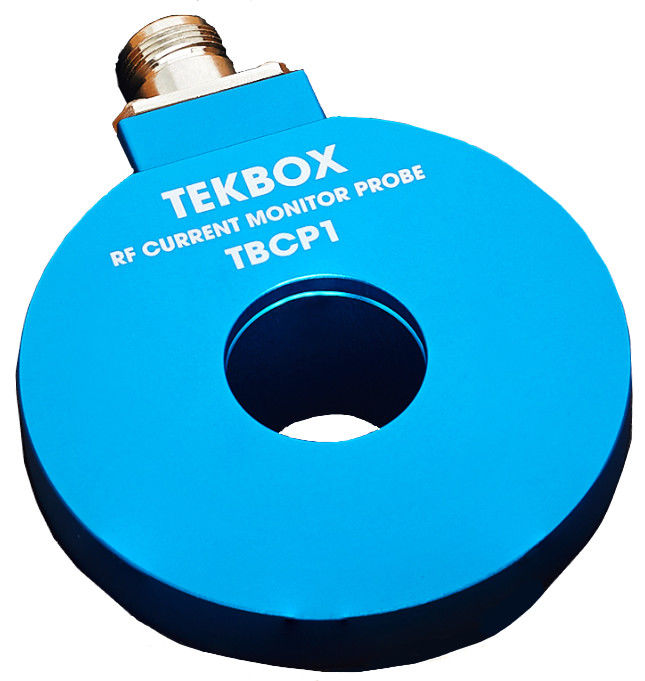

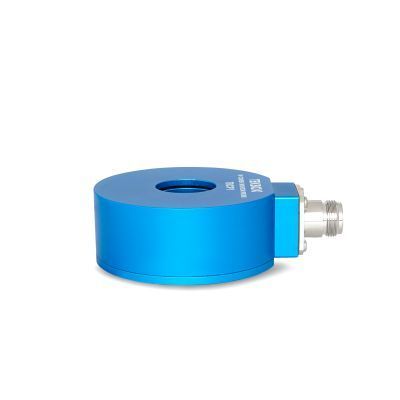

Tekbox TBCP1-200
/ RF current transformer up to 500MHz
|
-5% 331,61 EUR 349,07 EUR |
|
|
( 394,62 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 2122723 |
|---|---|
| Mfg Part No: | TBCP1-200 |
| Weight: | 1 kg |
Product information for Tekbox TBCP1-200:

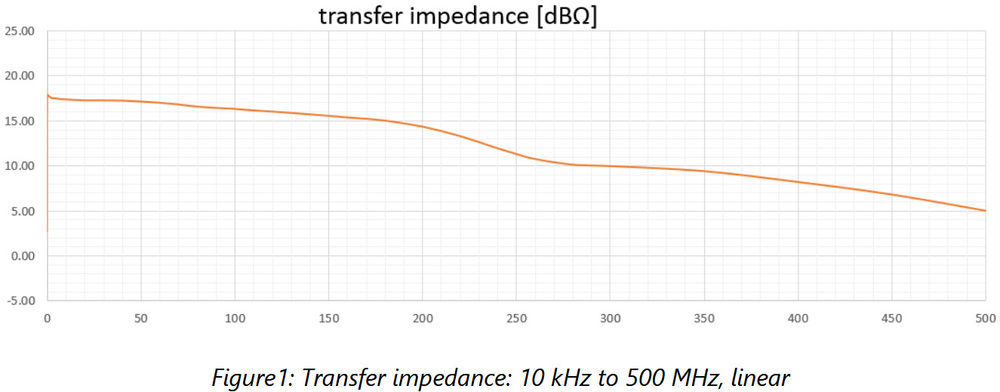

The probe has a 3dB bandwidth of approximately 200 MHz. The aperture of the RF current monitoring probe is 25 mm. Its transmission impedance is
14 dB Ohm in the range from 40 kHz to 200 MHz.

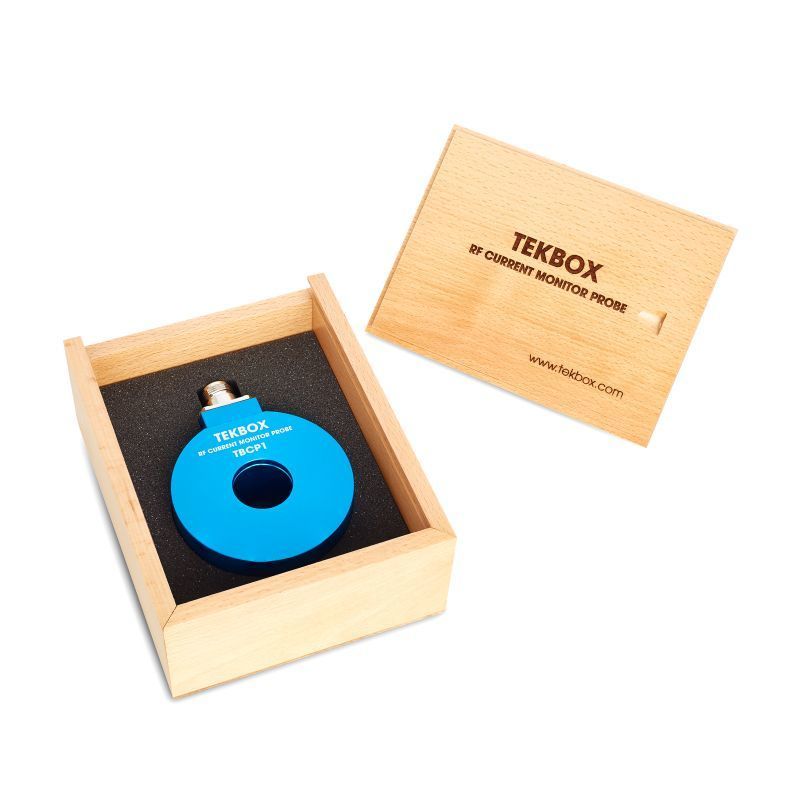

Tekbox supplies a calibration device that corresponds to the TBCP1 current probe series. SPECIFICATIONS Characteristic frequency range: 10 kHz to 200 MHz Outside diameter: 76 mm Aperture diameter: 25 mm Height: approx. 31 mm Connection type: N female Transmission impedance: 3 to 17 dBO Primary current (DC - 400 Hz): 80 A Maximum primary current (RF): 3 A Max. core temperature: 125 °CQuestions & answers
What is the delivery time of Tekbox TBCP1-200 / RF current transformer up to 500MHz?
The article Tekbox TBCP1-200 / RF current transformer up to 500MHz is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Tekbox TBCP1-200 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Tekbox TBCP1-200 / RF current transformer up to 500MHz always at the best possible price. We can give you a discount of 2% on Tekbox TBCP1-200 / RF current transformer up to 500MHz if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
