Tekbox TBCG2
/ comb generator/frequency multiplier passive, comb spectrum 1 MHz to 2.5 GHz

This image may differ from the desired article.

111,72 EUR 115,57 EUR
( 132,95 EUR incl. VAT ) plus delivery charges

2025-10-13Delivery time from supplier's stock (ca.) 6 workdays
In Stock: >5 pieces
1x Tekbox TBCG2 / comb generator/frequency multiplier passive, comb spectrum 1 MHz to 2.5 GHz 132,95 €
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:	2037474
Mfg Part No:	TBCG2
Weight:	0.4 kg

All products of Tekbox

Product information for Tekbox TBCG2:

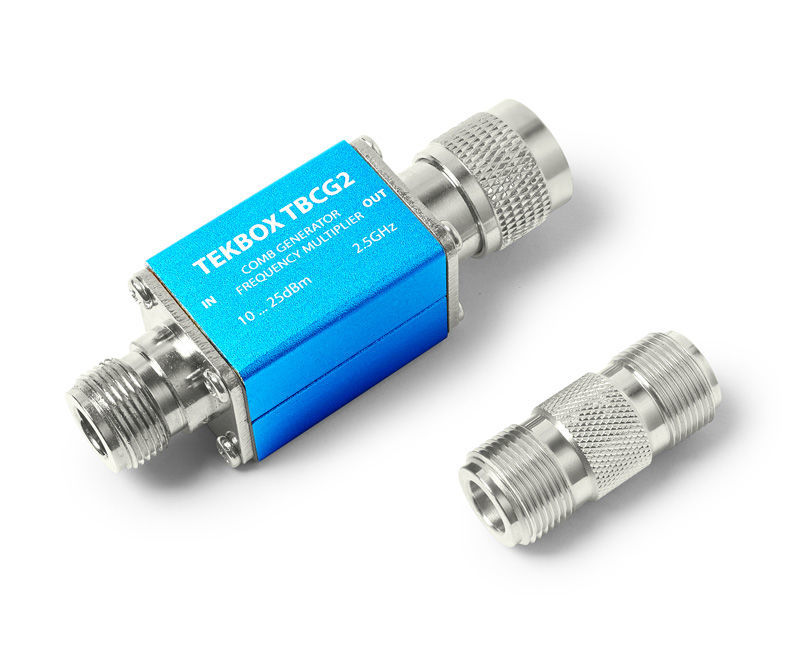

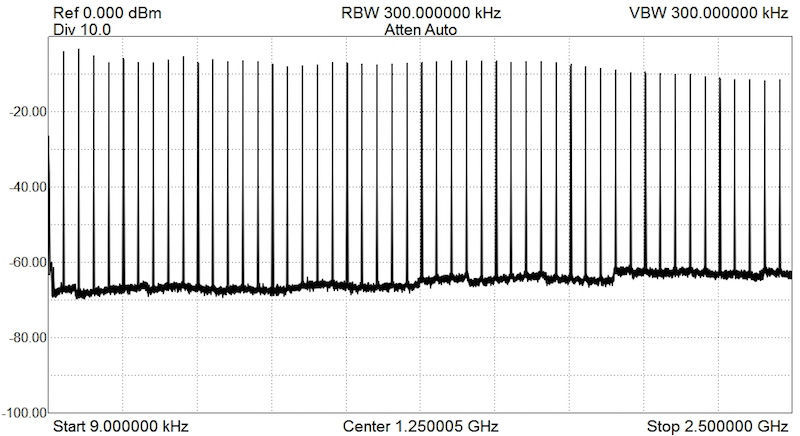

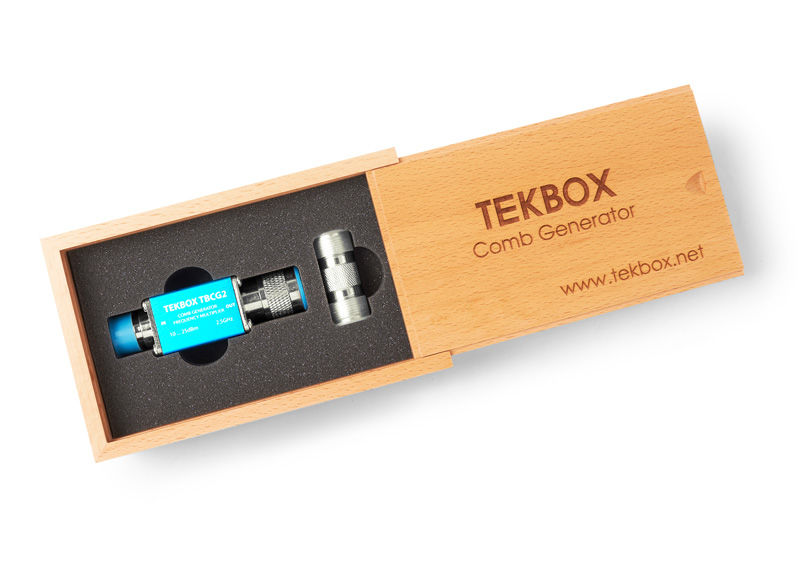

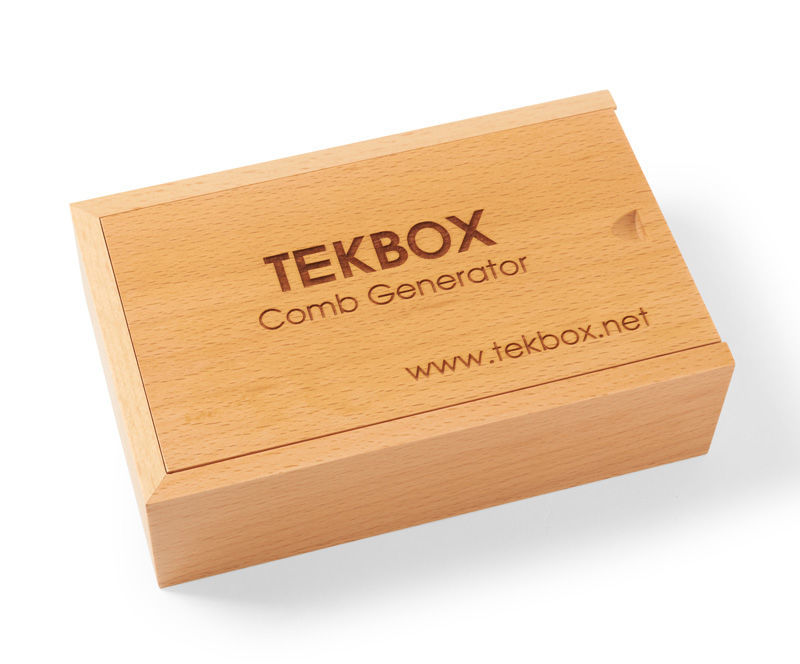

The TBCG2 is a passive, comb generator/frequency multiplier based on a memory switching diode (SRD = step recovery diode). It generates pulses with a very high edge steepness and a very even spectrum. This makes it easy to generate signals in the 1 MHz to 2.5 GHz range. For example, as a simple replacement for a non-existent tracking generator (of course not with the same resolution, dynamics and accuracy). The pulses can be used, for example, to measure the rise time of an oscilloscope. In conjunction with current clamps, the resonance frequency of cables can be measured and much more. The recommended input power is between +10 dBm and +20 dBm.Input power: +10 dBm to +20 dBm max. 25 dBm! Input frequency: 1 MHz to 350 MHz Comb spectrum: 1 MHz to 2.5 GHz Connection input: N socket Connection output: N plug Dimensions: 81 mm x 26 mm x 26 mm Weight: 96 g Scope of delivery: Passive comb generator/frequency multiplier Coaxial adapter N socket to N socket Complete in beech wood box

Questions & answers

What is the delivery time of Tekbox TBCG2 / comb generator/frequency multiplier passive, comb spectrum 1 MHz to 2.5 GHz?

The article Tekbox TBCG2 / comb generator/frequency multiplier passive, comb spectrum 1 MHz to 2.5 GHz is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Tekbox TBCG2 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Tekbox TBCG2 / comb generator/frequency multiplier passive, comb spectrum 1 MHz to 2.5 GHz always at the best possible price. We can give you a discount of 2% on Tekbox TBCG2 / comb generator/frequency multiplier passive, comb spectrum 1 MHz to 2.5 GHz if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
