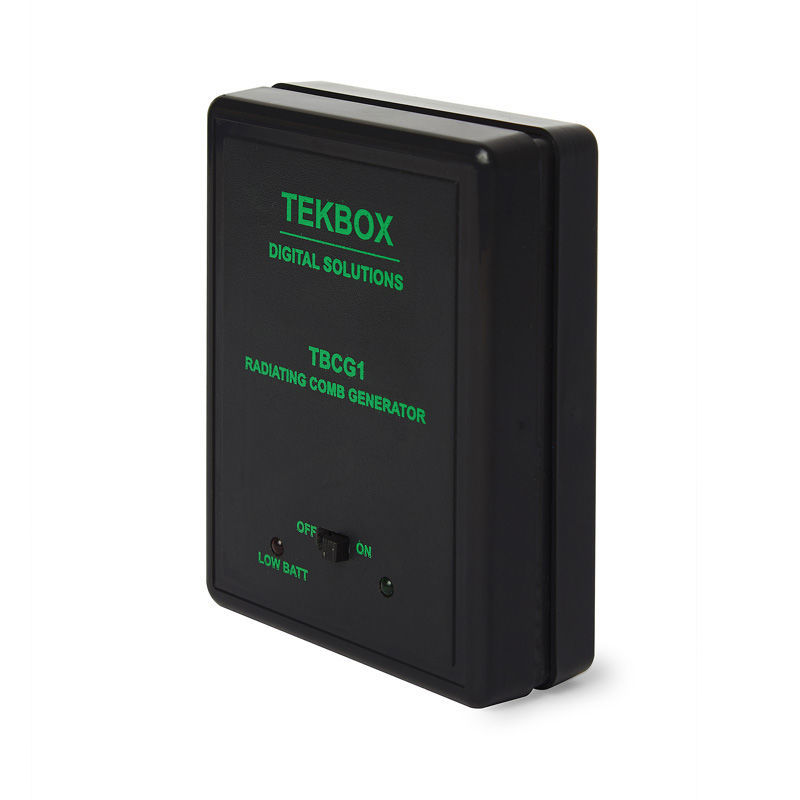

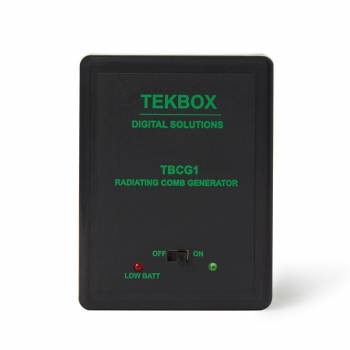

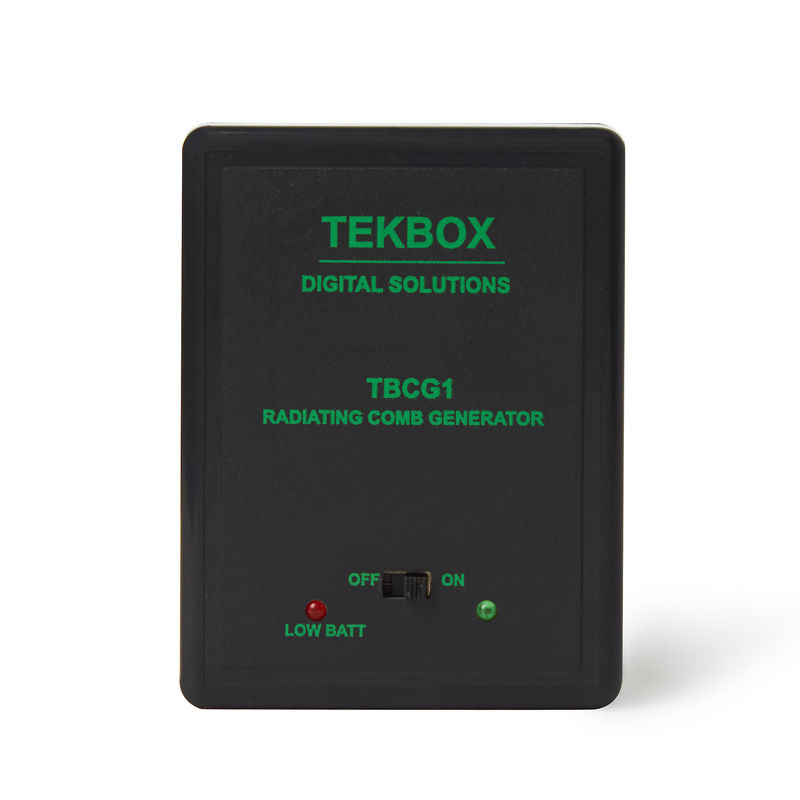

Tekbox TBCG1 comb generator active, basic frequency 100MHz, comb spectrum: 30MHz..6GHz content_copy

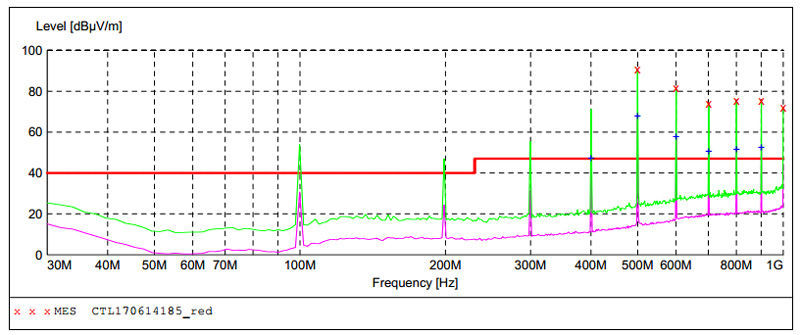

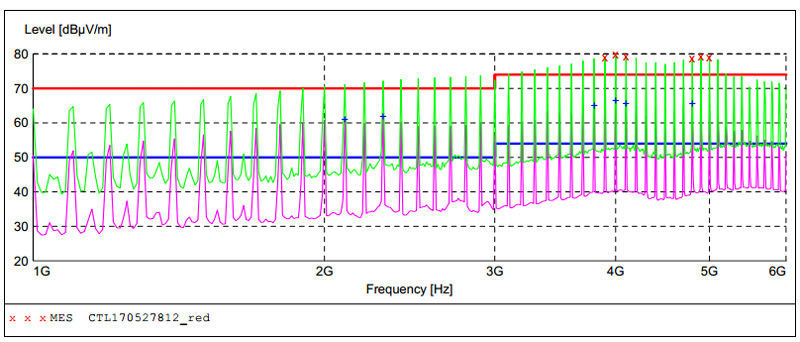

The TBCG1 is an active radiating comb generator with an integrated antenna. It emits a specified frequency comb spectrum up to 6 GHz. The TBCG1 is designed as a rough reference as part of tests for interference emissions in anechoic rooms, TEM/GTEM cells, umbrella tents, etc. Due to its high number of equidistant modes, TEM cells, for example, can be easily measured with a mode spacing of 100 MHz. The compact device is powered by a 9V battery and can therefore be used very flexibly.Basic frequency: 100 MHz Specified comb spectrum: 100 MHz..6 GHz Tolerance: ±2.5 dB Supply: 9V block (PP3), alkaline Battery current consumption: 175 mA Dimensions: 80 mm x 61 mm x 27 mm Weight including battery: 76 g Warning:
The TBCG1 emits over a wide spectrum that significantly exceeds the limits in the CISPR standards for emitted interference radiation. Only use the device in a shielded environment to avoid interference with other electronic devices.
Switch the device off again immediately after use to avoid excessive battery drain (I = 175 mA).
Scope of delivery:
Comb generator (9 V block battery must be ordered separately, see accessories).
