TekBox TBCDN-M3 Coupling-Decoupling Networks (CDN) M3

TBCDN-M3 Coupling decoupling networks M3

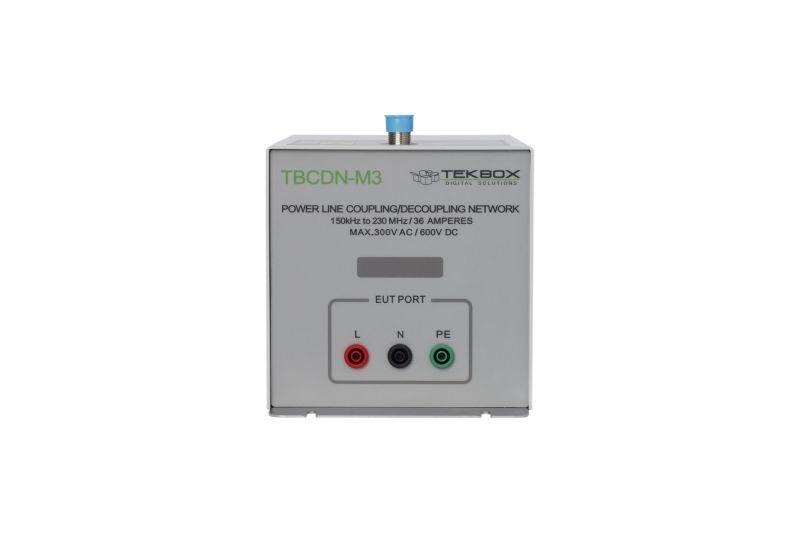

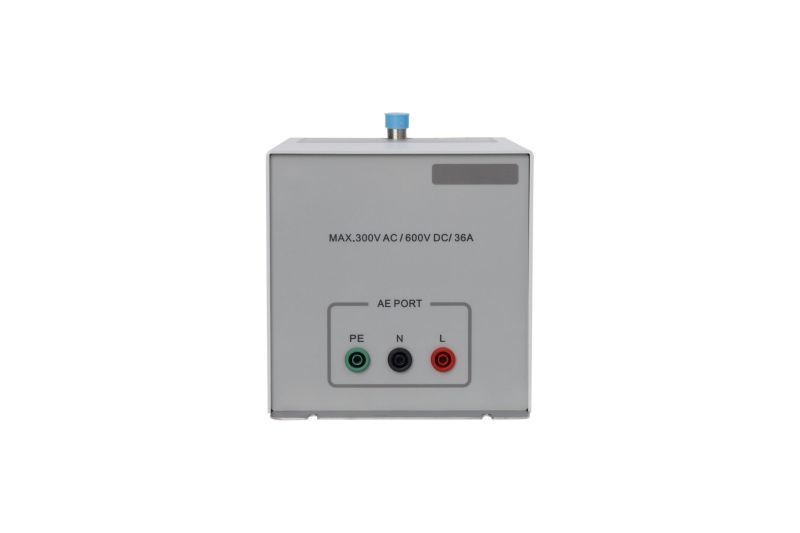

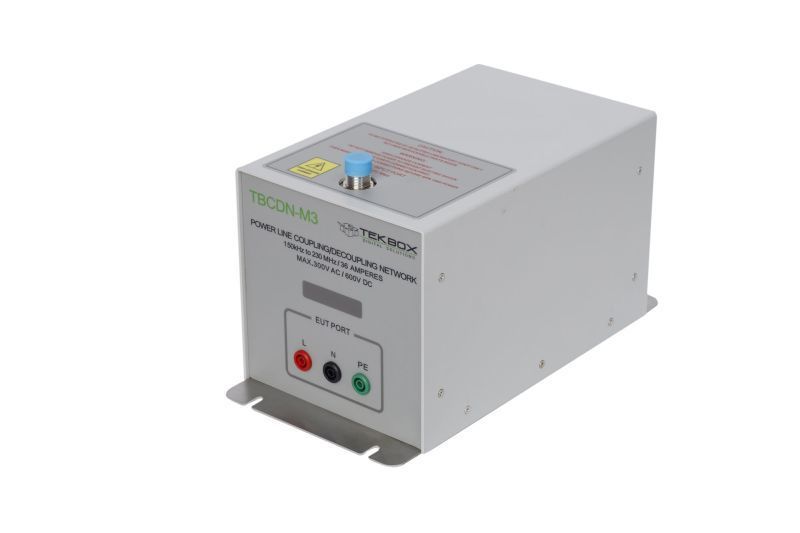

The TBCDN-M3 is a coupling-decoupling network for conducted interference immunity testing according to IEC 61000-4-6.
The TBCDN-M3 complies with IEC 61000-4-6 Annex D2. It is designed to inject common mode interference signals in the frequency range of 150 kHz to 230 MHz into unshielded AC and DC power supply lines.
SPECIFICATIONSMaximum supply voltage: 300V AC, 600V DC Maximum current: 36A Frequency range: 150 kHz - 230 MHz Maximum RF input power: 6.5 W CW Maximum RF input voltage: 32 V Common mode impedance: 150 kHz - 24 MHz: 150 O 20 O 24 MHz - 80 MHz: 150 O + 60 O / - 45 O 80 MHz - 230 MHz: 150 O 60 O Voltage division ratio: 150 kHz - 80 MHz: 9.5 dB 1 dB 80 MHz - 230 MHz: 9.5 dB + 3 dB / - 2 dB RF input: N - female EUT / AE Connections: 4 mm banana fuse sockets, 4 mm slots in base plate for GND connection Housing material: powder-coated aluminum, stainless steel base plate Included: individual test report with voltage division ratio and common mode impedance Optional accessories : 30mm adapter plate with short-circuit strips and BNC plug 50 O to 150 O N plug to N socket adapter calibration set - TBCDN-M3-AP
