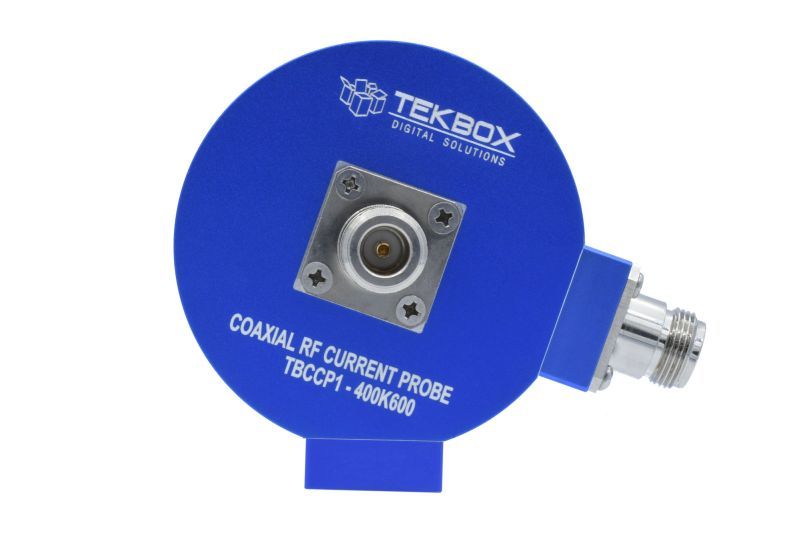

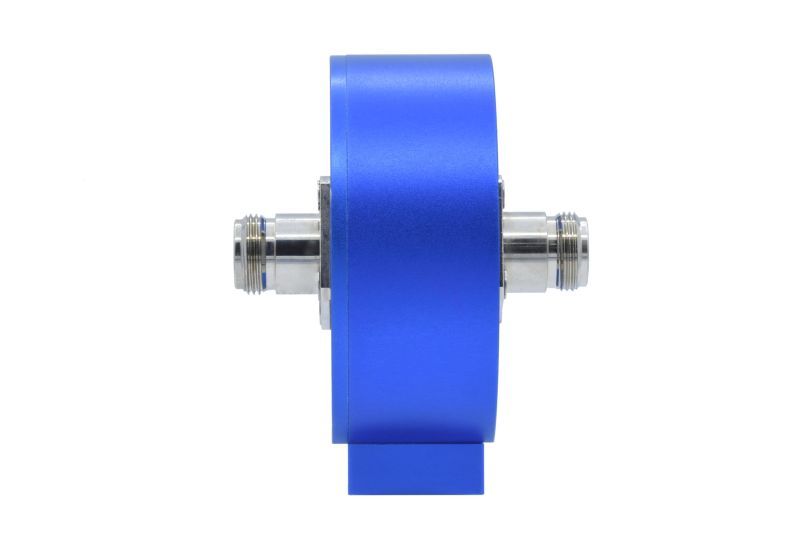

TekBox TBCCP1-400K600 Coaxial RF Current Monitoring Probe
|
on request |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1156140 |
|---|---|
| Mfg Part No: | TBCCP1-400K600 |
| Weight: | 1 kg |
Product information for Tekbox TBCCP1-400K600:
The probe has a bandwidth of 3 dB from 400 kHz to 600 MHz and a very flat response from 1 MHz to 200 MHz. The transimpedance is characterized over the frequency range from 10 Hz to 100 MHz. The TBCCP1-400K600 is primarily designed for measuring RF currents in coaxial cables. In addition, it can be used as a pickup for passive loop antennas. The probe is equipped with N-connectors. An attachment with ™" thread enables connection to standard tripods.
SPECIFICATIONS Characteristic frequency range: 10 Hz to 600 MHz Transmission impedance: 23 dB Ohm 3 dB Bandwidth: 400 kHz to 600 MHz, typ. Connection type: N female Maximum primary current (RF): 12 A Max. core temperature: 125 °C
Questions & answers
What is the delivery time of TekBox TBCCP1-400K600 Coaxial RF Current Monitoring Probe?
The article TekBox TBCCP1-400K600 Coaxial RF Current Monitoring Probe is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Tekbox TBCCP1-400K600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TekBox TBCCP1-400K600 Coaxial RF Current Monitoring Probe always at the best possible price. We can give you a discount of 2% on TekBox TBCCP1-400K600 Coaxial RF Current Monitoring Probe if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
