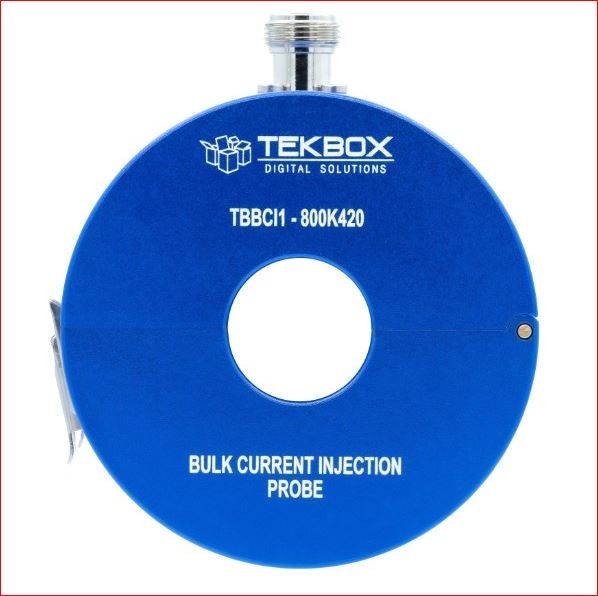

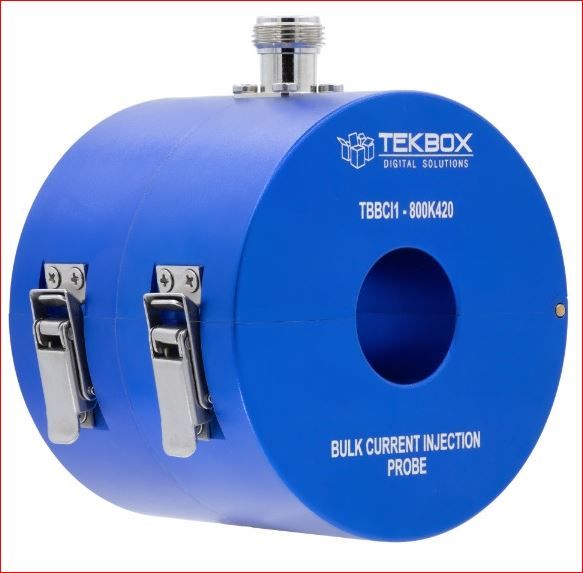

TBBCI1-800K420 Snap-on Bulk Current Injection Probe
The TBBCI1-800K420 is a snap-on bulk current injection sensor that extends the Tekbox range of cost-effective EMC pre-connection testers.
The BCI probe is primarily designed for conducted immunity testing of automotive products in the frequency range 1 MHz to 400 MHz according to ISO11452-4. The insertion loss is 5 dB for most of its bandwidth. In the frequency range 250 kHz to 230 MHz it meets the insertion loss according to ISO11452-4. The probe is individually characterized and can be used in the frequency range 10 kHz - 450 MHz. The probe can be used to inject severity levels I (60mA), II (100mA, III (150mA), IV (200mA) and custom severity levels V up to 350 mA.
The probe can also be used for RF current monitoring applications.
The aperture of the RF current monitoring probe is 27 mm. The typical insertion loss is 5 dB and the typical transmission impedance is 26 dB Ohm.
SPECIFICATIONS Conformity: ISO 11452-4 IEC / EN 61000-4-6 Insertion loss specification for BCI clamps above 250 kHz Characterized frequency range: 10 kHz to 500 MHz Insertion loss: 5 dB typ. 50 Ohm system (100 Ohm loop impedance) Transmission impedance: 29 dB Ohm typ. 50 Ohm system (100 Ohm loop impedance) Nominal power: Injection capable in severity levels I, II, III, IV according to ISO 11452 and customer-specific level V up to 350 mA Max. core temperature: 80 °C Connection type: N female Diameter opening: 27 mm Outside diameter: 92 mm
