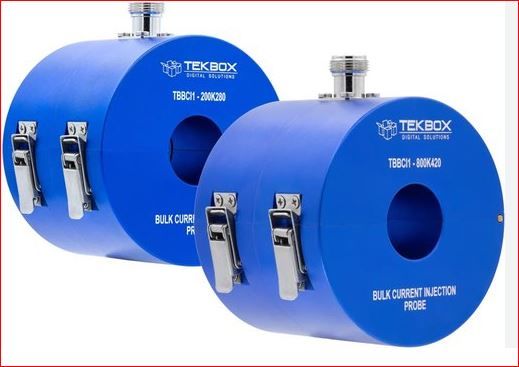

TekBox TBBCI1-200K280 Snap-on Bulk Current Injection Probe
|
1.609,04 EUR |
|||||||||||
|
( 1.914,76 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1156130 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | TBBCI1-200K280 | ||||||||||
| Weight: | 1.6 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Tekbox TBBCI1-200K280:
The TBBCI1-200K280 is a snap-on bulk current injection sensor that extends the Tekbox range of cost-effective EMC pre-connection test equipment.
The BCI probe is primarily designed for conducted immunity testing in the frequency range 150 kHz to 230 MHz according to the IEC/EN 61000-4-6 standard. The insertion loss is 8 dB for most of its bandwidth and is fully compliant with the insertion loss specification of IEC/EN 61000-4-6. The probe is individually characterized and can be used in the frequency range 10 kHz - 300 MHz. It can inject severity levels 1, 2, 3 and level X up to 30V into a conducted immunity test according to IEC/EN 61000-4-6.
The probe can also be used for RF current monitoring applications.
The aperture of the RF current monitoring probe is 27 mm.
The typical insertion loss is 8 dB and the typical transmission impedance is 26 dB Ohm.
SPECIFICATIONS Conformity: IEC / EN 61000-4-6 Insertion loss specification for BCI terminals Characteristic frequency range: 10 kHz to 300 MHz Insertion loss: 8 dB typ. 50 Ohm system (100 Ohm loop impedance) Transmission impedance: 26 dB Ohm typ. 50 Ohm system (100 Ohm loop impedance) Nominal power: Injection capable for level 1, 2, 3 and stress level X up to 30V, 150 Ohm Test setup according to IEC/EN 61000-4-6 Max. core temperature: 80 °C Connection type: N female Diameter opening: 27 mm Diameter outside: 92 mm
Questions & answers
What is the delivery time of TekBox TBBCI1-200K280 Snap-on Bulk Current Injection Probe?
The article TekBox TBBCI1-200K280 Snap-on Bulk Current Injection Probe is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Tekbox TBBCI1-200K280 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TekBox TBBCI1-200K280 Snap-on Bulk Current Injection Probe always at the best possible price. We can give you a discount of 2% on TekBox TBBCI1-200K280 Snap-on Bulk Current Injection Probe if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 50 pieces of TekBox TBBCI1-200K280 Snap-on Bulk Current Injection Probe we can offer you a price of 1.584,90 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
