The Tekbox EMV software EMCview for PC is a user-friendly EMC preliminary test for radiated and conducted interference emissions. It is the perfect complement to automated testing with our LISNs, HF current probes, measuring antennas and TEM cells.
Built-in amplitude correction allows correction and conversion of coefficients for cables, amplifiers, attenuators, LISNs, TEM cells, antennas, RF current probes, filters and any other component in the signal chain.

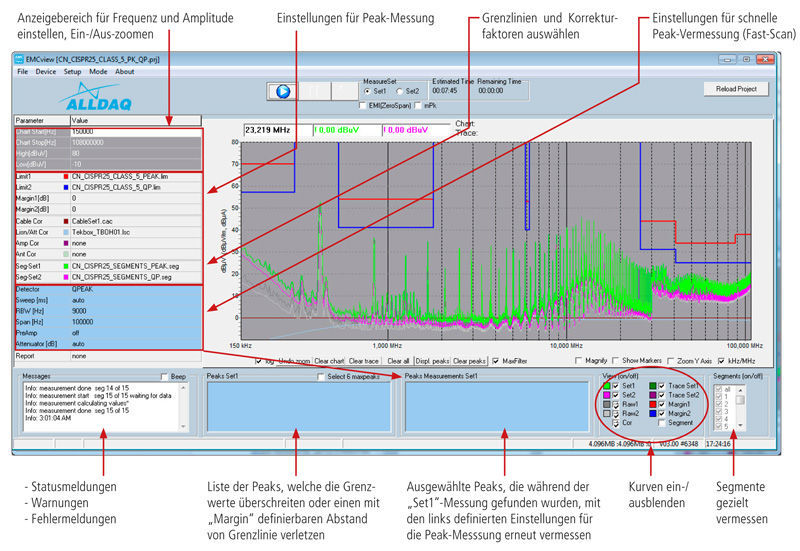

No time-consuming setup is required. The SW is ready for measurement immediately after installation. All emissions-relevant standards and some automobile manufacturer standards are preconfigured in corresponding project files. The project files contain all the necessary settings to be able to carry out standard-compliant measurements. In addition to using the preconfigured projects, the user can also create their own projects using the built-in editor or a simple text editor.

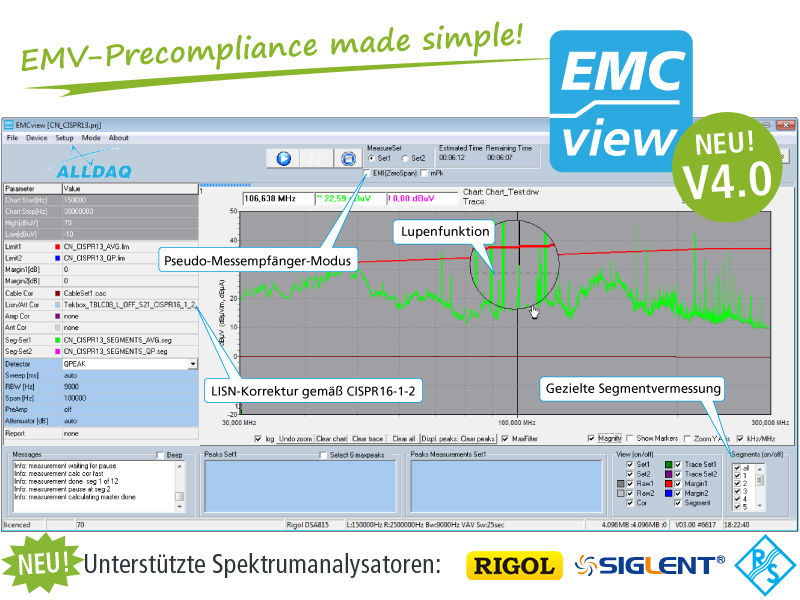

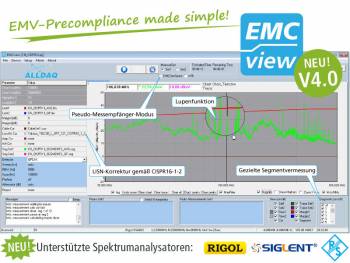

The graph supports two complete measurement sequences such as Average / Quasi-Peak or Peak / Quasi-Peak and also a fast quasi-peak scan of critical peaks. The charts can be saved and overlaid with more recent measurements to track and document design changes.
Additionally, EMCview can be used together with our GPS receiver for RF coverage measurements. An export function creates KML files that link the results to Google Maps.
Immunity measurements are supported by special menus that control the spectrum analyzer tracking generator.
EMCview PRO supports real-time measurements with real-time capable spectrum analyzers. Additionally, EMCview PRO offers advanced conducted immunity testing capabilities for spectrum analyzers with tracking generators. Customers can choose between an EMCview Standard license and an EMCview PRO license. Users with an EMCview Standard license have the option to upgrade to EMCview Pro.
Please specify the desired option in the comment field during the ordering process or in an email to service@batronix.com and we will then send you the license file within one working day.
The free trial version of EMCview is limited to the measuring range up to 10 MHz. All supported devices Rigol (DSA and RSA) Siglent (SSA/SSA plus/SSA -R and SVA) Siglent EU, Siglent USA R< (FPC and FPH ) OWON
FeaturesNumerous preconfigured project files for CISPR-xx (EN550xx) emission measurements Supports two complete measurement runs, as in the EMC test house Fast quasi-peak scan of critical peaks, immune to frequency drift of the selected peaks Configurable limit lines and segment files Configurable correction files for cables, network simulation (LISN), amplifiers , antenna, etc. Configurable limit distances for identification and selection of critical peaks Supports import and overlay of reference measurements for comparison purposes Linear or logarithmic frequency axis Automatic creation of test reports Many import/export functions ApplicationsEarly measurement of EMC behavior during the product design phase EMC pre-compliance Testing products before submitting them to the test laboratory Cost reduction Faster market readiness EMC training in laboratories, schools and universities
