TCS PAAF041/001 audio:pack AP for 4 residential units with outdoor station PAK 4

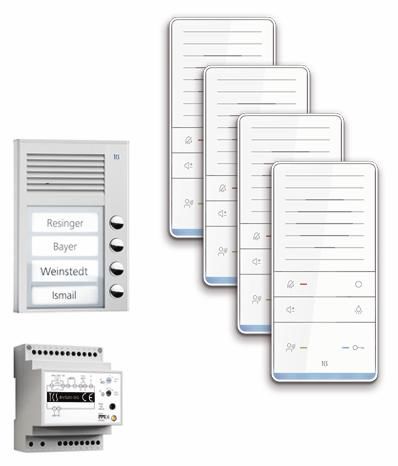

audio:pack PAAF041/001 for 4 residential units, Article number: PAAF041/001, Package description, audio:pack for 4 residential units, indoor station for hands-free calling, outdoor station for surface mounting, pre-configured TCS system components, Scope of delivery, 1x outdoor station PAK03-EN, 4x hands-free speakers ISW5031-0145, 1x control unit BVS20-SG, hands-free speakers ISW5031-0145, Product features, Device type: TASTA hands-free speaker AUDIO PLUS WS, Communication technology: TCS:BUS and video 2-wire:BUS, Mounting type: Surface mounting with TASTA mounting shell AP and via flush-mounted box, Table mounting with separate table accessory ZIT5000-0030, Number of acoustic call distinctions: Acoustic call distinction between 2 front door, apartment door and internal calls, automatic call shutdown, automatic hands-free calling after Internal call: Can be activated/deactivated with configo, hands-free talking / manually controlled two-way communication can be activated, Call volume: Volume button for adjusting the voice volume when a voice connection is established and for adjusting the ringtone volume when there is no voice connection, Voice volume can be set by the user in 4 levels, Busy indicator: Optical busy indicator when a voice connection is established., Audio privacy feature, Call display: Configurable. Optical display and short-term storage of door calls, Ringtone mute: Call off button for switching off the ringtone with optical display and for ringtone selection mode and call forwarding display, Ringtones: Selection from 13 ringtones, adjustable by the user. Ringtone volume can be set by the user in 4 levels, internal call (number can be configured), number of parallel calls (indoor stations per door call): 1 parallel call can be set with configo, floor call possible: connection for floor button available on the device, light switching: light button, alternative to ringtone selection floor call and (de-)activation of ambient lighting, alternative programmable control function 9 or internal call 2, door opening: door opener button plus optical display, alternative to ringtone selection door call 1 from the outdoor station, with activatable floor door opener function, automatic door opener, floor door opener function: can be de-/activated with configo, error display: acoustic and optical error display for time-saving commissioning, functionally expandable: side slot with radio transmitter board for controlling radio signal device, commissioning and configuration: configo configuration software can be used for convenient system configuration on the PC with automatic recognition of device type and serial number, mounting plate: lower shell with plugged screw terminal can be pre-installed, activation of additional functions: function button from Factory assigned with control function / activatable alternative assignment internal call, automatic door opener, call forwarding and ring tone selection internal call / adjustable with configo, ambient lighting: as orientation light, can be deactivated or activated, as call display can be deactivated or activated, LED display: door opener display LED blue, LED (red): ring tone deactivation active (lit up),Call forwarding active (flashes), LED (green): call and speaking active (lights up), voice channel busy (flashes 3x), technical data, dimensions HxWxD (mm): 195x94x21, material/color: housing made of antistatic and recyclable plastic. Color: glossy white, UV resistance, permissible ambient temperature (°C): -5 °C to +40 °C, Protection class: IP30, Current consumption, at rest (mA): 2-wire: I(a at rest) = 2.00 mA, 3-wire: I(a at rest) = 0.15 mA, I(P at rest) = 1.80 mA, Current consumption, maximum (mA): '2-wire: I(a max) = 74 mA, 3-wire: I(Pmax) = 74.5 mA', Note, Tested according to EN 50486, Outdoor station PAK03-EN, Device properties, Audio outdoor station, Number of bell buttons: 3, Mounting type: Surface mounting, Housing shape: Surface-mounted housing, integrated loudspeaker, Housing material: Aluminum, Housing color: anodized natural, Material of bell buttons: Metal with maintenance-free contacts, shatter-proof nameplate glass, energy-saving LED nameplate lighting, opening principle: win:clip, voice output volume: one
Type: PAAF041/001
