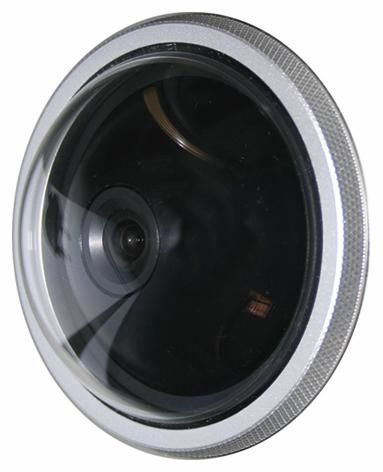

TCS FVK4225-0 combination EB dome camera color on-site plates

Basic features: Device type: video camera, Communication technology: TCS:BUS, Mounting type: installation in on-site front panels with a thickness of 2 to 3 mm, the dome camera does not fit into a flush-mounted or hollow wall box, Video, Camera design: built-in color dome camera, Pan and tilt range (°): 3-axis swivel frame for easy alignment, Auto Electronic Shutter (AES), Automatic electronic shutter speed (AES), Auto Gain Control (AGC), Auto White Balance (AWB), Day/night switching, Technical data: HOUSING: vandal-proof metal housing, Dimensions HxWxD (mm): Ø 92 mm x 69 mm, Installation Ø 71 mm, (incl. FVW2000: approx. H 119 x W 92 D 79), Material / color: aluminum, dome glass PC, permissible ambient temperature (°C): -10 °C to 50 °C, Protection class: IP66, Number of integrable modules: already exists, Supply voltage: 12 V DC via FVW2000-0600, Current consumption, maximum (mA): I(Pmax) = 63 mA with FVW2000, Resolution (TVL): 700 H TVL Color, Resolution, maximum (pixels x pixels): PAL: 1020 H x 596 V pixels, Image sensor: 8.5 mm (1/3 ') SONY SUPER HAD II CCD, Horizontal detection angle: 65 degrees, Vertical detection angle: 51 degrees, Diagonal detection angle: 92 degrees, Light sensitivity (lux): 0.005 lx, Lens: 3.6 mm, Scope of delivery:, Coax connection cable: BNC / 75 Ohm / 1 m, Two-wire video transmitter: FVW2000-0600 + supply cable 2m, Note: Attention. The camera must not be exposed to or pointed at direct sunlight
Type: FVK4225-0
