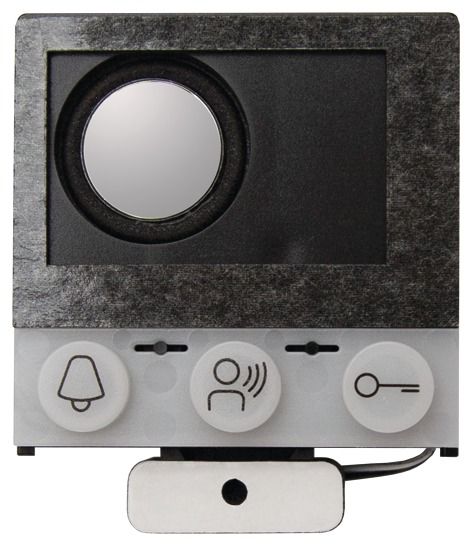

Device type: Built-in door loudspeaker, Communication technology: TCS:BUS, Installation type: Can be integrated, installed behind on-site front panels, the design of the existing front panel should be clarified in advance., Audio transmission: Hands-free (standard), two-way communication (can be activated), full-duplex hands-free for indoor stations with handset possible, can be activated in configo, Number of bell buttons: up to 16 can be connected., Number of bell button extensions: up to 6 built-in bell button extensions (ASI21000-0000 with a maximum of 32 bell buttons each) can be connected, Removable microphone (mm): Length of microphone cable: 250 mm / removable for acoustic decoupling, Volume of acknowledgement / advisory tone: adjustable, Conversation volume: adjustable, Number of door calls (indoor stations per bell button): 2 indoor stations can be assigned to each on-site bell button., Light switching: Light switching function on unprogrammed bell button, Connection of bell buttons: on plug-in screw terminals., Module integration: 4-pin connector for 4-pin connection cable, connection and operation of modules of the AMI series, error display: error display: optical/acoustic, error flashing time (t = 0 - 255 s) adjustable with configo, operating display: via LED pictograms: calling, speaking, door opening, error and programming mode, commissioning and configuration: commissioning and configuration: manual, with service device, with configuration software, slot: 1 slot for exchangeable memory of the system configuration (ASI12000 or ASI11000). , 1 slot for data transfer from TCU2 memories, activation of additional functions: accessibility, buzzer function (acoustic door opener simulation for DC door openers), delay ex works: OFF, adjustable 1 s to 8 s, button delay (t = 0 to 25.5 s) can be activated and adjusted with configo, talk time ex works: 56 s / adjustable, slave mode., LED display: LED pictograms 'accessibility', can be activated in configo, if not required, the pictogram cover can be removed and hidden behind the front panel, when the 'accessibility' function is activated, the optical door opener signal can be delayed (t = 0 to 25.5 s), dimensions HxWxD (mm): 67x68x38, design: built-in housing, mounting dimensions HxW (mm): 75x85x40, material / color: plastic / black, permissible ambient temperature (degrees C): -25 to +55 degrees C, use indoors or in protected outdoor areas, protection class:
IP24, supply voltage: +24 V plus/minus 8% (supply and control unit), current consumption, idle (mA): Ia= 0.2 mA, IP= 3 mA, current consumption, maximum (mA): 24.3 mA, number of wires: 3-wire required, length of microphone cable: 250 mm
Type:
ASI12000-0000
Questions & answers
What is the delivery time of TCS ASI12000-0000 built-in door loudspeaker for up to 16 residential units?
The article TCS ASI12000-0000 built-in door loudspeaker for up to 16 residential units is currently
in stock
According to our experience the article is ready for dispatch within 2 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of TCS ASI12000-0000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TCS ASI12000-0000 built-in door loudspeaker for up to 16 residential units always at the best possible price. We can give you a discount of 2% on
TCS ASI12000-0000 built-in door loudspeaker for up to 16 residential units if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of TCS ASI12000-0000 built-in door loudspeaker for up to 16 residential units we can offer you a price of 198,54 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of TCS ASI12000-0000 built-in door loudspeaker for up to 16 residential units via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
