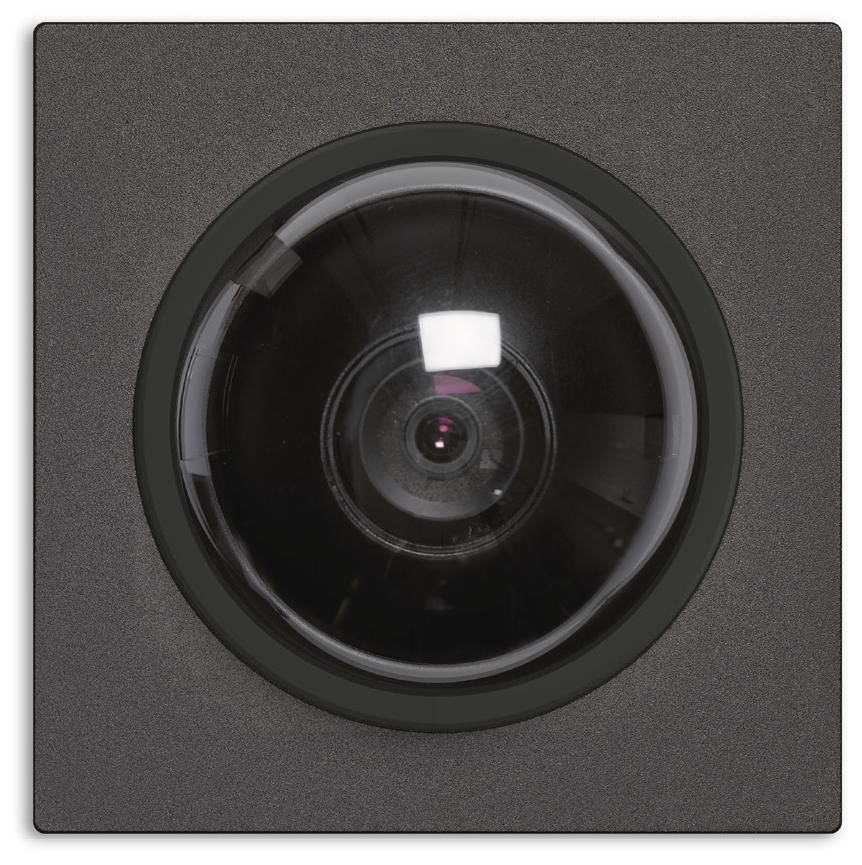

Basic features: Device type: dome camera module, communication technology: TCS:BUS, mounting type: flush-mounted mounting, can be integrated behind 3 mm front panels, flush-mounted installation for front panels from 1.5 mm to 2.5 mm using the enclosed spacer plates. Module grid spacing 120 mm, Video, Camera design: Dome camera module, Pan and tilt range (°): Axis swivel frame for easy alignment, Auto Electronic Shutter (AES): , Electronic shutter speed automatic (AES), Auto Gain Control (AGC), Auto White Balance (AWB), Day/night switching:, Installer interface, Connection to display module / TCS:BUS speech module: , AMI10105-0710 / AMI11110-0010, Technical data: Mechanical properties, HOUSING: Vandal-proof metal housing, Dimensions HxWxD (mm): incl. dome and FW2000-0600, H 125 x W 105 x D 77.5, , Visible front dimension (cutout) 82 mm x 82 mm, Design: Module for outdoor stations with individual configuration, Material / color: Front panel aluminum anodized black, dome glass PC, permissible ambient temperature (°C): -10 °C to 50 °C, protection class:
IP66, number of integrable modules: already exists, electrical properties, supply voltage: 12 V DC via FVW2000-0600, current consumption, maximum (mA): I(Pmax) = 63 mA with FVW2000, camera properties, resolution (TVL): 700 H TVL Color, resolution, maximum (pixels x pixels): PAL: 1020 H x 596 V pixels, image sensor: 8.5 mm (1/3 ') SONY SUPER HAD II CCD, horizontal detection angle: 65 degrees, vertical detection angle: 51 degrees, diagonal detection angle: 92 degrees, light sensitivity (lux): 0.005 lx, lens: 3.6 mm, number of usable gateways: 4, indoor station line, short circuit detection between: , ax-bx, ax-Px, bx-Px, indoor station line, maximum number: 1, scope of delivery: video two-wire transmitter: FVW2000-0600, screwdriver, mounting accessories: 4x fastening nut M4, 3x spacer film 0.5 mm', note: Attention. The camera must not be exposed to direct sunlight or aimed at it.
Type:
AMI10620-0057
Questions & answers
What is the delivery time of TCS AMI10620-0057 EB dome camera module series AMI black?
The article TCS AMI10620-0057 EB dome camera module series AMI black is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of TCS AMI10620-0057 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TCS AMI10620-0057 EB dome camera module series AMI black always at the best possible price. We can give you a discount of 2% on
TCS AMI10620-0057 EB dome camera module series AMI black if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of TCS AMI10620-0057 EB dome camera module series AMI black we can offer you a price of 929,90 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
