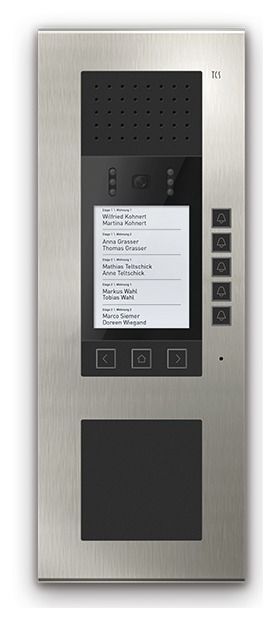

TCS ADA59210-0030 Video AP outdoor station series ADX5 with display

BCM video outdoor station with display for surface mounting with call buttons. As an automatically managed TCS:BUS display outdoor station, the AD5 series is part of the BCM system. The central administration uses the WEB-based user interface of the BCM system (application manager) and ensures that resident data and serial numbers are up to date in the event of a device replacement. The BCM system can be dynamically adapted to requirements - and from almost any location. The user interface of the AD5 consists of five digitally labeled bell buttons. The outdoor station has a fully graphic, monochrome display with a resolution of H298 x V384 pixels. White backlight in the display guarantees readability under all light and temperature conditions. Icons support user guidance. Five name records are always displayed at the same time, with each name record consisting of an information line and two name text lines for labeling. A maximum of 30 name records can be saved. Navigation through the name data sets is done in steps of 5 name data sets using three buttons (BACK, HOME, FORWARD). The outdoor station is connected to the BCM system via MODBUS. The start screen can be customized. Technical data: Half-shell housing made of stainless steel with an internal function module made of black anodized aluminum. Dimensions: H 375.5 x W 140 x D 25 mm.
Type: ADA59210-0030
