LED track spotlight VLF white – 3-phase | Synergy 21 S21-LED-NB2500030 content_copy

The LED track spotlight of the VLF series from Synergy 21 is a 48V spotlight for track systems, specifically designed for use in indoor lighting systems. The device features a white housing made of aluminium and plastic and is equipped with LED technology that produces a light colour temperature of 3000 Kelvin (warm white). The light output is 1550 lumens at an energy consumption of 15 watts, corresponding to a luminous efficacy of 105 lumens per watt. The beam angle is 36 degrees, creating a targeted, focused light cone suitable for illuminating products or work areas. Light quality is ensured by a CRI value of over 90, providing natural and accurate colour rendering. The protection class IP20 protects against contact with fingers and larger solid objects, but is not intended for outdoor use or in damp environments.

Applications

The spotlight is designed for use in commercial and industrial spaces such as retail stores, exhibition rooms, offices or workshops, where flexible and precise lighting is required. Compatibility with 48V track systems allows for easy integration into existing lighting systems. The warm white light colour creates a pleasant, inviting atmosphere, which is particularly advantageous in retail environments.

Functions and Equipment in Detail

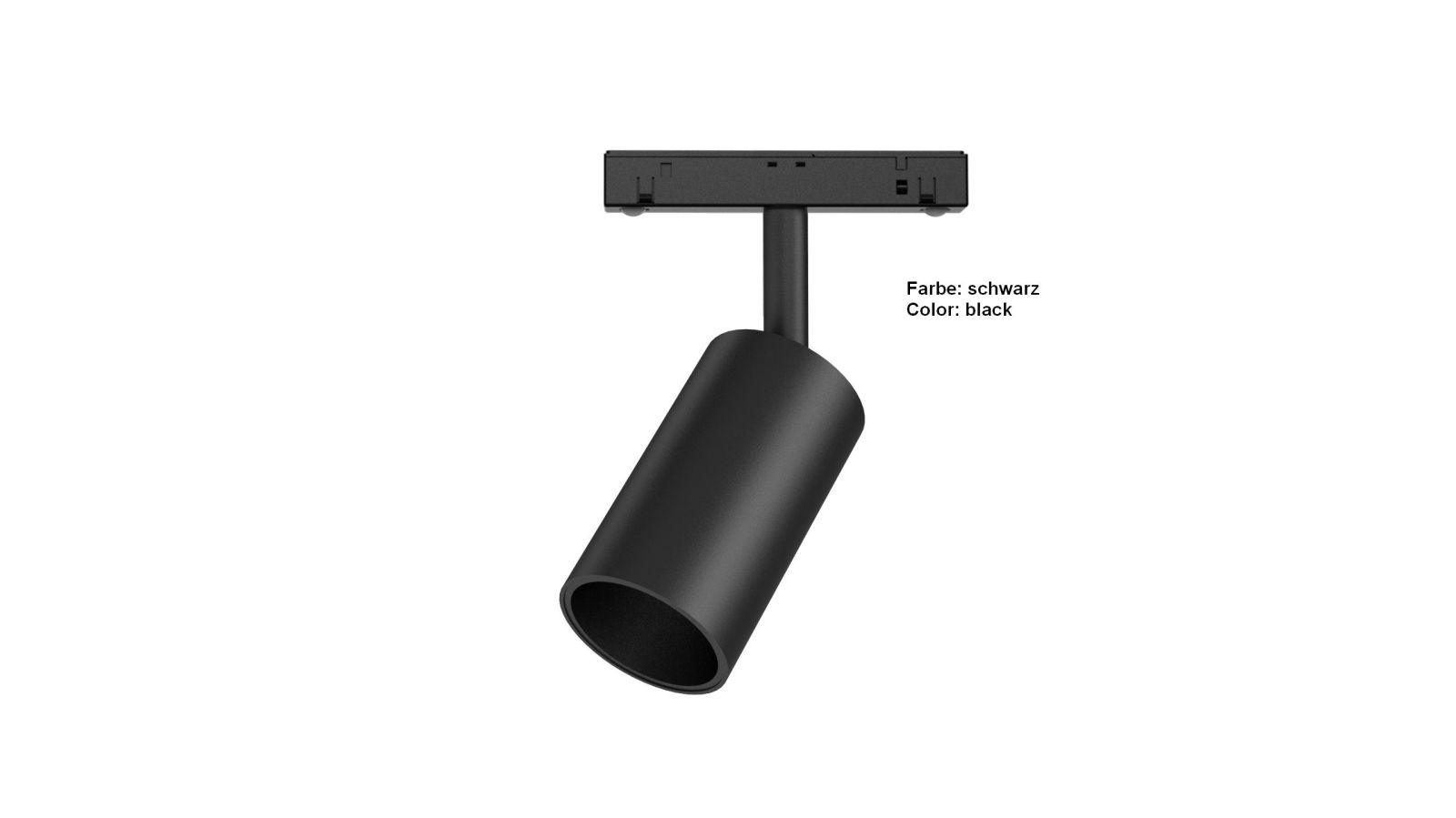

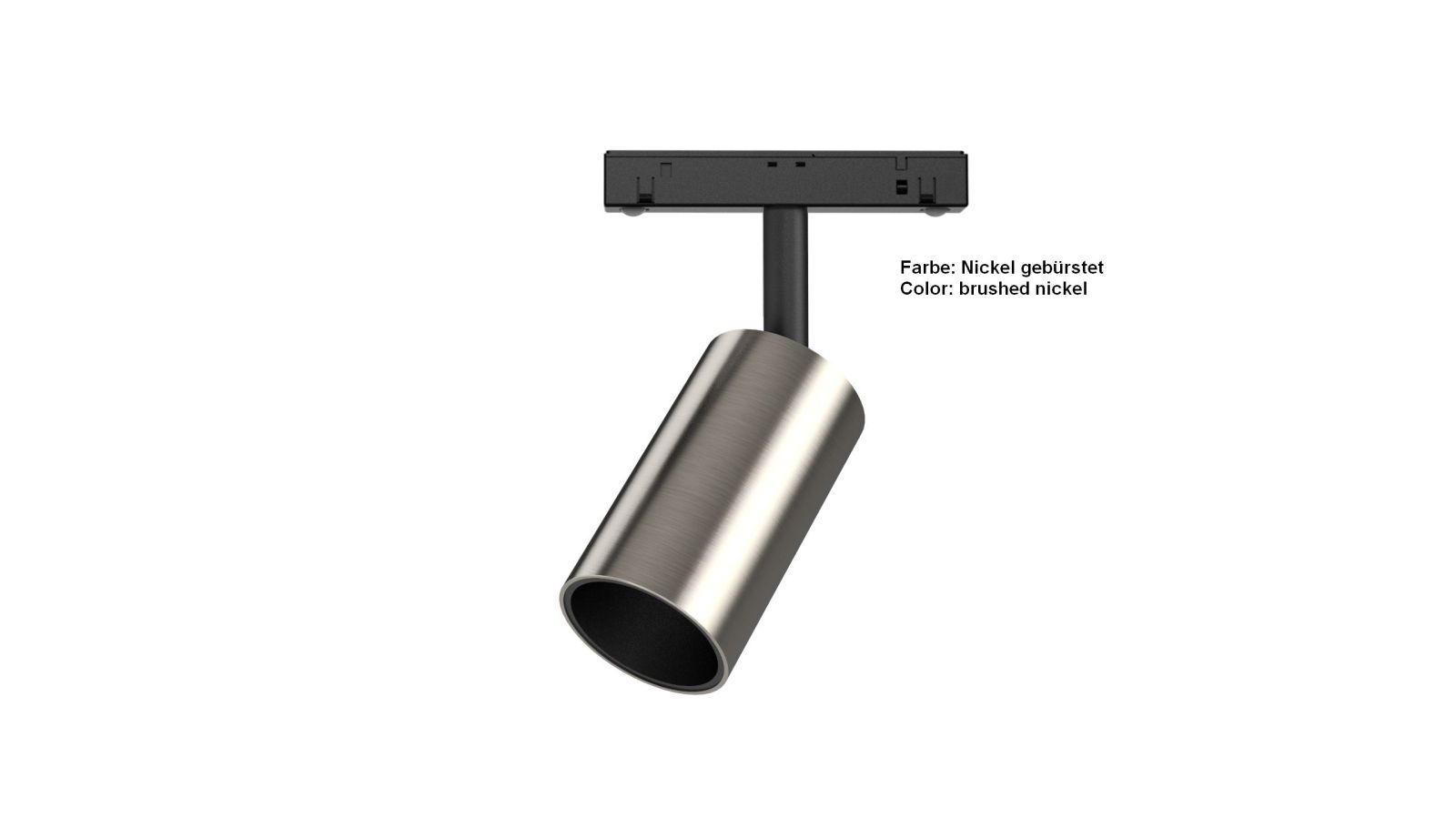

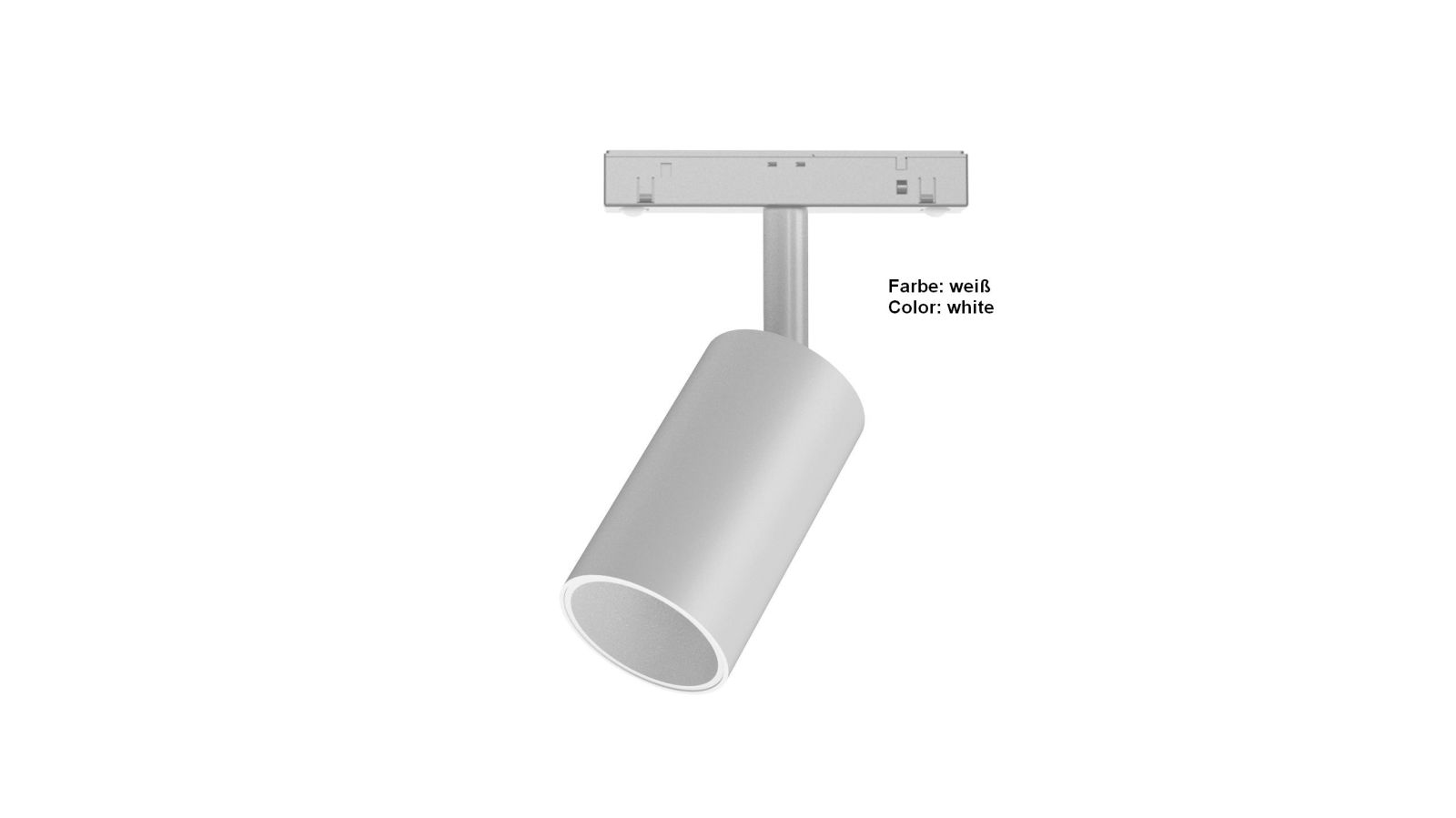

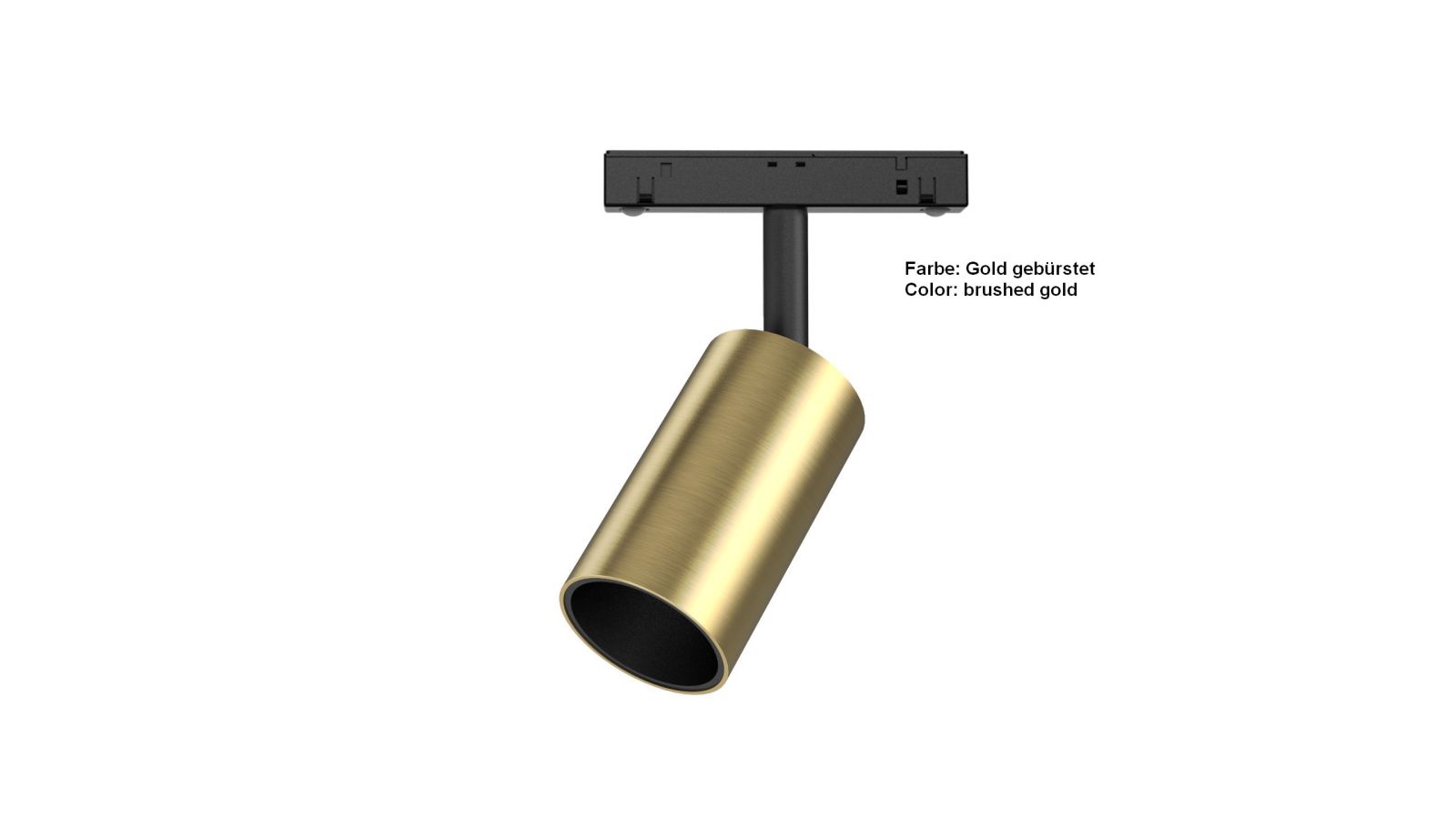

The device is equipped with an on/off driver, meaning dimming is not available. Mounting is done on a 48V track, with swivel and tilt functions (359° and 90°) enabling flexible adjustment of the light beam. The housing is interchangeable and available in seven colours, including White, Black, Brushed rose gold, Brushed gold, Brushed bronze, Electroplated titanium and Electroplated nickel. This allows for individual design of lighting systems. Additionally, various beam angles are available as interchangeable lens sets (15°, 24°, 50°), as well as Honeycomb options, to further optimise light distribution.

Technology Explained Simply

The LED technology of the spotlight ensures high light output at low energy consumption. The luminous efficacy of 105 lumens per watt exceeds the average for LED lighting and demonstrates the efficiency of the technology used. The UGR value below 5 guarantees low glare, which is beneficial for eye strain during operation. The nominal lifespan is 35,000 hours, indicating high reliability and long service life. The operating voltage is 230 volts, with power supplied via the 48V track.

Compatibility and Accessories

The spotlight is compatible with 48V track systems and can be mounted on various track types, including surface-mounted track, recessed track and deep surface-mounted track, in the colours White and Black, in lengths of 1, 2 and 3 metres. The tracks are also available in the range and allow for flexible arrangement of the lighting. Compatibility with Stucchi systems expands the range of applications.

Mounting and Installation

Mounting is done on a 48V track, with swivel and tilt functions enabling precise adjustment of the light beam. Installation should be carried out by qualified professionals, with the power switched off before mounting to avoid electrical hazards. The ambient temperature should be 25 °C to ensure optimal performance. Ventilation of the device is important to prevent overheating.

Advantages in Operation

The spotlight offers high light output at low energy consumption, resulting in low operating costs. The long lifespan of 35,000 hours reduces maintenance frequency. The flexible adjustment and availability of various housing colours and lens sets allow for individual lighting design. The warm white light colour creates a pleasant atmosphere, particularly suitable for retail environments. Compatibility with various track types increases installation flexibility.

Technical data
Volt	230 Volt
Colour housing	White
Light colour in Kelvin	3000 K
Light colour name	Warm white
LED - housing material	Aluminium
Protection class	IP20
CRI	>90 CRI
Beam angle	36 degrees
Watt	15 W
Lumens	1550 LM
UGR	&lt5
Luminous efficacy	105 LM/W

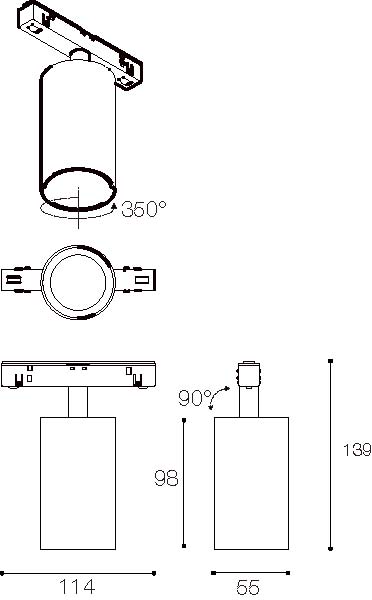

Size	114*139*55 mm
Socket	48V
Dimmable

---
