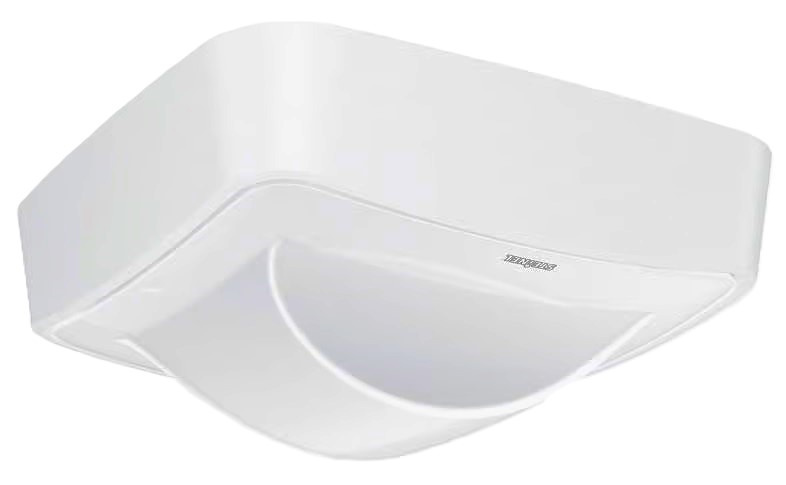

Steinel 086299 Hallway DALI-2 APC - surface mount presence detector high frequency AP
|
185,09 EUR |
|
|
( 220,26 EUR incl. VAT ) ≈ £154.74 | ≈ $204.52 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 253273 |
|---|---|
| Mfg Part No: | 086299 |
| UPC/EAN: | 4007841086299 |
| Weight: | 0.39 kg |
| Type: | Hallway DALI-2 APC - Aufputz |
Further Motion Detectors from SteinelFurther products in category Motion Detectors
All products of Steinel
Product information for Steinel 086299:
The Steinel Hallway DALI-2 APC - surface mount (manufacturer number 086299) is a presence detector designed for use in long corridors, hallways, and similar linear spaces. It enables automatic detection of motion and allows intelligent control of lighting systems via the DALI-2 APC interface. The device is designed for surface mounting and features a modern Control PRO II design, which integrates visually into contemporary interior concepts. Integrated Bluetooth technology enables remote control and configuration via the Steinel Connect App, allowing adaptation to specific requirements without additional hardware.
Applications
This presence detector is specifically designed for use in long, straight hallways, corridors, and similar spaces where radial detection over a distance of up to 25 meters is required. The detection range can be adjusted independently in both directions, allowing precise configuration of detection zones according to room geometry and usage. The 360° detection ensures comprehensive coverage of the space, minimizing the likelihood of detection gaps. The device is particularly suitable for office buildings, schools, hospitals, and other facilities with long corridors, where energy-efficient and automated lighting control is required.
Functions and Equipment in Detail
The Hallway DALI-2 APC acts as a control unit in DALI-2 APC systems and enables power supply and control of up to 64 DALI participants via the DALI bus. Lighting units can be controlled either via broadcast control or individually addressed, enabling flexible and precise control of individual luminaires or groups. The luminaires can be divided into up to four groups, allowing differentiated control within a room. Additional functions such as the room separator function, multizone formation, and neighbor group function expand control options and support complex lighting scenarios. Control can be automatic, time-based, or individual, via connected DALI switches or via the Steinel Connect App.
Technology Explained Simply
The presence detector operates using high-frequency technology, enabling precise and reliable motion detection. The radial detection up to 25 meters is achieved through 360° coverage, with the detection range adjustable independently in both directions. The DALI-2 APC interface allows integration into intelligent lighting systems, where the device functions as a central control unit. Bluetooth technology enables wireless communication with the Steinel Connect App, allowing configurations to be made, settings adjusted, and device status monitored. Control is performed via the DALI bus, enabling direct addressing of lighting units or control via broadcast.
Compatibility and Accessories
The device is designed for use in DALI-2 APC systems and can communicate with up to 64 DALI participants. Control is performed via the DALI bus, ensuring compatibility with standard-compliant DALI luminaires and switches. Integration into existing systems is possible, provided the DALI-2 APC interface is supported. Control via the Steinel Connect App requires a Bluetooth connection, limiting usage to devices with Bluetooth functionality. Control via connected DALI switches enables manual or supplementary lighting control.
Mounting and Installation
The Hallway DALI-2 APC is designed for surface mounting, allowing installation on walls or ceilings without deep embedding. Installation requires connection to the DALI bus, enabling both power supply and data transmission via the same cable. Exact mounting should follow the manufacturer’s technical specifications, with device positioning chosen to ensure optimal coverage of detection zones. Configuration is performed via the Steinel Connect App or the DALI interface, allowing adjustments to settings such as detection range, timing behavior, and group division.
Advantages in Operation
Automatic lighting control reduces energy consumption, as luminaires are only switched on when presence in the room is detected. Flexible group division and support for multizones and neighbor group functions enable precise adaptation to usage scenarios. Remote control via the Steinel Connect App provides additional flexibility for configuration and system monitoring. Integration into DALI-2 APC systems enables centralized control and a scalable solution for larger installations. The 360° detection and adjustable range ensure reliable and comprehensive coverage of the space.
Applications
This presence detector is specifically designed for use in long, straight hallways, corridors, and similar spaces where radial detection over a distance of up to 25 meters is required. The detection range can be adjusted independently in both directions, allowing precise configuration of detection zones according to room geometry and usage. The 360° detection ensures comprehensive coverage of the space, minimizing the likelihood of detection gaps. The device is particularly suitable for office buildings, schools, hospitals, and other facilities with long corridors, where energy-efficient and automated lighting control is required.
Functions and Equipment in Detail
The Hallway DALI-2 APC acts as a control unit in DALI-2 APC systems and enables power supply and control of up to 64 DALI participants via the DALI bus. Lighting units can be controlled either via broadcast control or individually addressed, enabling flexible and precise control of individual luminaires or groups. The luminaires can be divided into up to four groups, allowing differentiated control within a room. Additional functions such as the room separator function, multizone formation, and neighbor group function expand control options and support complex lighting scenarios. Control can be automatic, time-based, or individual, via connected DALI switches or via the Steinel Connect App.
Technology Explained Simply
The presence detector operates using high-frequency technology, enabling precise and reliable motion detection. The radial detection up to 25 meters is achieved through 360° coverage, with the detection range adjustable independently in both directions. The DALI-2 APC interface allows integration into intelligent lighting systems, where the device functions as a central control unit. Bluetooth technology enables wireless communication with the Steinel Connect App, allowing configurations to be made, settings adjusted, and device status monitored. Control is performed via the DALI bus, enabling direct addressing of lighting units or control via broadcast.
Compatibility and Accessories
The device is designed for use in DALI-2 APC systems and can communicate with up to 64 DALI participants. Control is performed via the DALI bus, ensuring compatibility with standard-compliant DALI luminaires and switches. Integration into existing systems is possible, provided the DALI-2 APC interface is supported. Control via the Steinel Connect App requires a Bluetooth connection, limiting usage to devices with Bluetooth functionality. Control via connected DALI switches enables manual or supplementary lighting control.
Mounting and Installation
The Hallway DALI-2 APC is designed for surface mounting, allowing installation on walls or ceilings without deep embedding. Installation requires connection to the DALI bus, enabling both power supply and data transmission via the same cable. Exact mounting should follow the manufacturer’s technical specifications, with device positioning chosen to ensure optimal coverage of detection zones. Configuration is performed via the Steinel Connect App or the DALI interface, allowing adjustments to settings such as detection range, timing behavior, and group division.
Advantages in Operation
Automatic lighting control reduces energy consumption, as luminaires are only switched on when presence in the room is detected. Flexible group division and support for multizones and neighbor group functions enable precise adaptation to usage scenarios. Remote control via the Steinel Connect App provides additional flexibility for configuration and system monitoring. Integration into DALI-2 APC systems enables centralized control and a scalable solution for larger installations. The 360° detection and adjustable range ensure reliable and comprehensive coverage of the space.
| General | |
| Product type | Presence detector |
| Manufacturer | Steinel |
| Detection range | 25 m |
| Field of view | 360 ° |
| Interface | DALI-2 APC |
| Communication technology | Bluetooth |
| Mounting method | Surface mounted (plaster) |
| Technology | High frequency |
| Control functions | Broadcast, addressed control, group assignment, room separator function, multizone, neighbor group function |
| Number of controllable DALI devices | 64 |
| Control options | automatic, time-based, via DALI switch, via Steinel Connect App |
