Spelsberg ZVi 9030-S-eHZ meter distribution 900x300x210 75941001

This image may differ from the desired article.

666,27 EUR

( 792,86 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

1328040

Mfg Part No:

75941001

UPC/EAN:

4013902409495

Weight:

0.12 kg

Graduated prices net

From pieces	Price per pieces
3	626,29 EUR
6	586,32 EUR
9	546,34 EUR
12	506,37 EUR

Further Meter Cabinets from Spelsberg Further products in category Meter Cabinets All products of Spelsberg

Product information for Spelsberg 75941001:

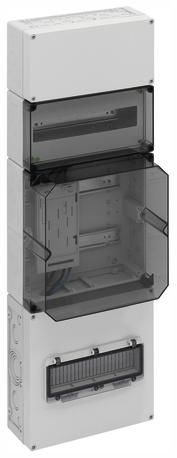

Meter distribution in multiple box design according to DIN EN 61439-2/-3, sealable as standard, for surface mounting in unmetered areas, device installation surfaces according to DIN 43870-1, 5-pole meter connection cables. Use after individual approval by the responsible network operator, with sealing plug, with insulating plug, with enclosed ventilation plug IP44 to reduce condensation, upper connection compartment, 150mm, equipped with 35mm standard rail to accommodate the main line branch terminal HA 25-53 (accessory), space for additional applications, 150mm, 12TE, equipped with 35mm standard rail to accommodate additional equipment of the network operator, meter operator or metering service provider, with sealable contact protection cover and transparent cover, meter field, 300mm, with transparent cover, with 1 BKE-I for eHZ, expandable by another BKE-I (in compliance with the specifications of VDE AR-N 4100), lower connection compartment, 300mm, sealable as standard, with 5-pole busbar system, 40mm busbar spacing, CU12x5mm, rated current 160A, Icw= 25kA(0.2s), busbar terminals, for N and PE conductors, for CU conductors 16-35mm², with hinged window 12TE for layperson operation of the main circuit breakers and additional space for surge protection devices, cable entry through cable gland IP44, accessory) or stepped nipple M40 IP44, enclosed)Dimensions: 300 x 900 x 210mm
Type: ZVi 9030-S-eHZ
