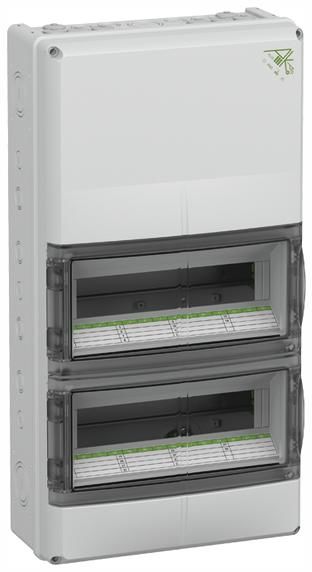

Spelsberg AK 28 Plus NT small distributor 73362811

Small distributor, with protection class IP65, 2-row, 28 available division units, with integrated ventilation elements to reduce the formation of condensation, rated operating voltage: 400V AC, rated insulation voltage: 1000V AC, 1500V DC, certified by DLG (ammonia resistance), metric knockouts at the top and bottom for universal cable entries with cable glands and / or double membrane nozzles, pre-equipped with elastic entries DMS M20 at the top, for installation in industrial environments and in protected outdoor areas, with additional connection space including 35mm standard railDimensions: 315 x 155 x 600mmIncluded accessories: WAGO TOPJOB(R) S terminal blocks with push-in connections for installation in the additional connection space, 1x feed 76A, 5-pin L1 / L2 / L3 / N / PE, 3-conductor terminals, connectable conductors 0.5-16mm², 2x output terminal block pre-assembled with neutral conductor isolating terminals for: 1x three-phase output, connectable conductors 0.5-6mm² via installation level terminals NT / L1 / L2 / L3 / PE 9x alternating current output via installation level terminals NT / L / PE conductors 0.5-4mm², double membrane connectors: 2x M16, 10x M20, 4x M25, 2x M32, 2x M40, sealing plugs, cover and labeling strips
Type: AK 28 Plus NT
