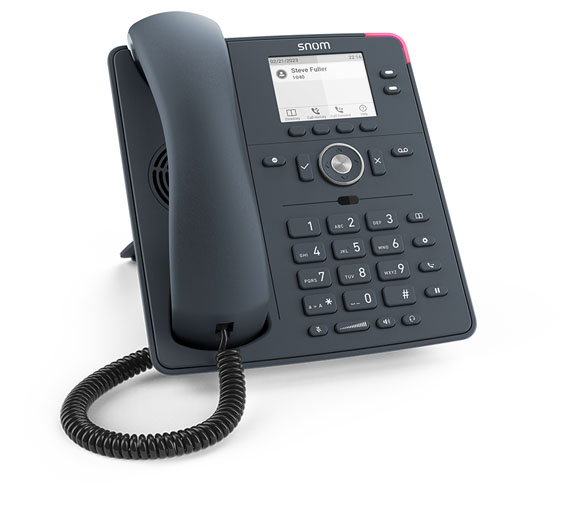

snomD140

The D140 is suitable for all work environments where cost-effective but high-quality communication is required. The device, which has a slate gray housing, offers all the important telephony functions. Two freely programmable SmartLabel keys, six dedicated and four context-dependent function keys are available for simple and intuitive operation. The D140 is ideal for large installations, e.g. in public administrations.

Highlights

• 360° notification display
• 6.7 cm (2.8 inch) TFT LCD - Grayscale display
• 4 context-related function keys
• 2 freely programmable SmartLabel keys
• Power supply via power supply unit or PoE (IEEE 802.3af, Class 1)
• Ethernet 10/100 Mbit/s: 2 × RJ45-8P8C sockets
• Headset: RJ9-4P4C socket
• Handset with cable is hearing aid compatible (HAC)

Product type

• Corded device
• ear category (ElektroG): relevant, Category 6: small IT and TK devices, Small IT and TK devices B2C

Specifications

• Mounting: Table mounting
• Other dimensions: 205 mm × 185 mm × 220 mm (high installation angle 46°); 205 mm × 185 mm × 200 mm (low installation angle 28°); Weight: 830 g with stand

Shipping

• WEEE: 53501255

Phone features

• Headset connectivity: RJ9
• Hands-free function
• Hearing aid compatible
• Phone type: IP
• Number of function keys: 4
• Number of phone book entries: 1000
• optical call signaling

Connections

• Number of LAN ports: 2
• Handset connection: spiral cord

Display

• Display diagonal inches: 7,1 cm ( 2,8 inch ) -
Display diagonal cm: 0 cm

• Display technology: LCD-TFT
• Display type: monochrome
• Display lighting

Power supply

• PoE standard: PoE - 802.3af
• Power supply: external
• mains, PoE

Basic properties

• Color: black
• Height: 40 mm
• Length/depth: 205 mm
• Width: 185 mm
• Weight: 710 g

Scope of delivery

• IP desk phone D140
• Stand
• Handset with cable
• Network cable
• Quick start guide
• Note on delivery: Power is supplied via PoE. A power supply unit is not included in delivery.
