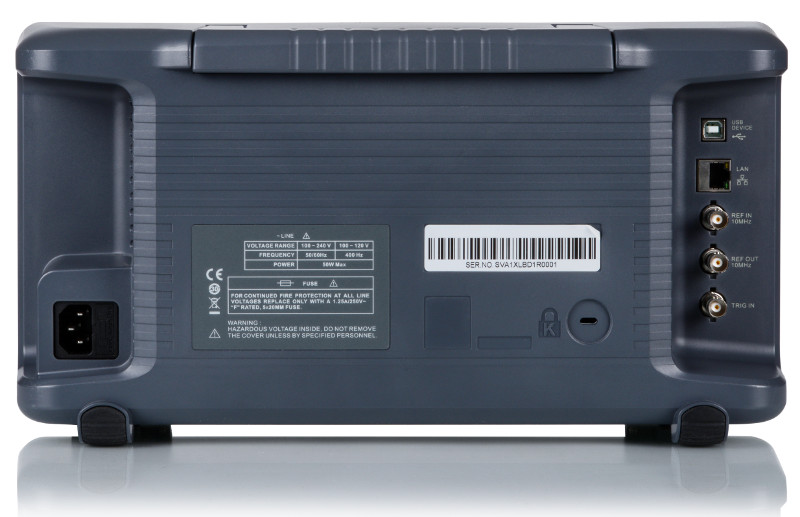

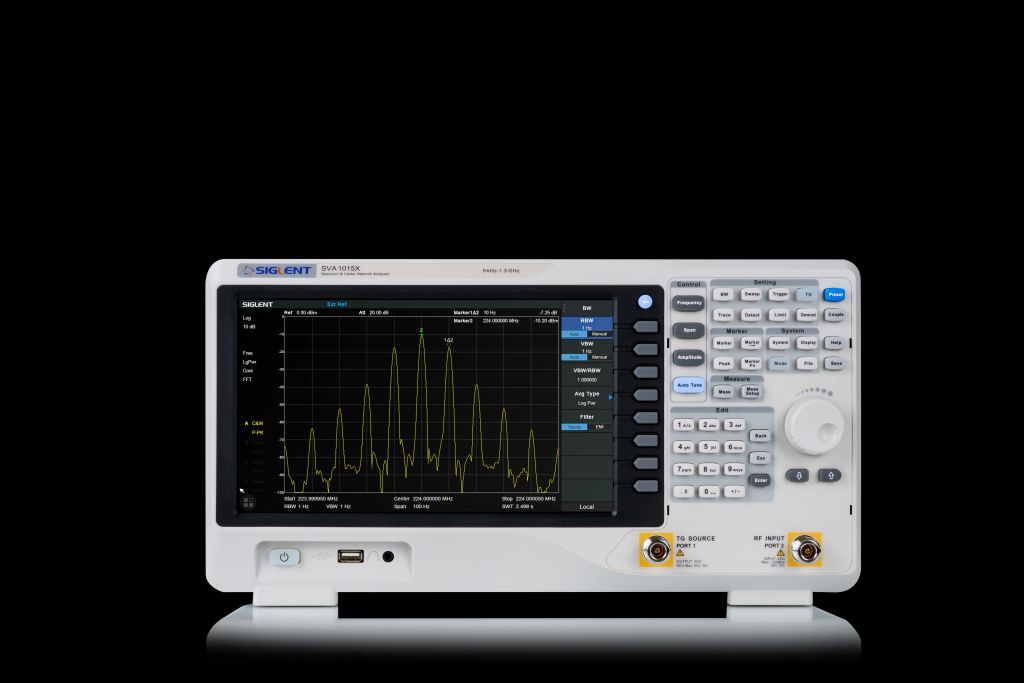

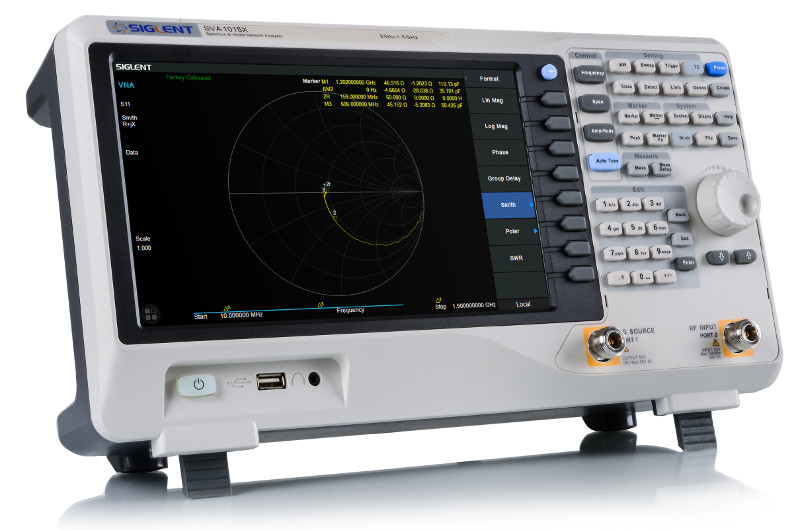

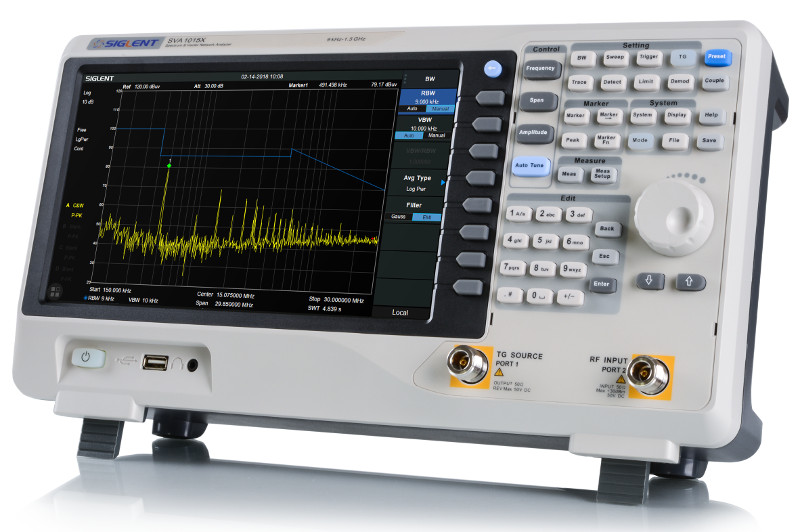

Siglent SVA1075X
Network and Spectrum Analyzer / The SVA1075X is a network and spectrum analyzer and offers a bandwidth of 7.5 GHz
|
7.351,98 EUR 7.351,98 EUR |
|
|
( 8.748,86 EUR incl. VAT ) ≈ £6,249.18 | ≈ $8,256.27 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 15. Aug 2025 |
|---|---|
| Lieske Part No.: | 1154392 |
| Mfg Part No: | SVA1075X |
| Weight: | 5 kg |
Product information for Siglent SVA1075X:
The SVA1075X is a network and spectrum analyzer and offers a bandwidth of 7.5 GHz, as well as a reliable and automatic measurement.Features Vector network analysis from 100 kHz – 7.5 GHz Distance to fault (optional) Frequency range from 9 kHz to 7.5 GHz -165 dBm/Hz Displayed average noise level (typ.) -98 dBc/Hz at 10 kHz Offset phase noise (1 GHz, typ.) 1 Hz Minimum resolution bandwidth (RBW) Tracking generator (Std.) EMI filter and quasi-peak detector kit (Opt.) Advanced measurement kit (optional) 10.1 inch multi-touch screen, mouse and keyboard supported Web browser remote control on PC and mobile devices and file operation Technical data Model comparison
SVA1015X
SVA1032X
SVA1075X Maximum bandwidth 1.5 GHz 3.2 GHz 7.5 GHz Resolution Bandwidth (RBW) 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence Display of Average Noise Level (DANL), min. -156 dBm/Hz Displayed Average Noise Level -161 dBm/Hz Displayed Average Noise Level -165 dBm/Hz Displayed Average Noise Level Preamplifier Yes Yes Yes Tracking generator Yes Yes Yes Vector network analysis Yes Yes Yes Distance To Fault Optional Optional Optional Modulation analysis Optional Optional Optional EMI Pre-compliance Test Kit (EMI) Optional Optional Optional Extended Measurement Kit (AMK) Optional Optional Optional Touch display Yes Yes Yes
SVA1015X
SVA1032X
SVA1075X Maximum bandwidth 1.5 GHz 3.2 GHz 7.5 GHz Resolution Bandwidth (RBW) 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence Display of Average Noise Level (DANL), min. -156 dBm/Hz Displayed Average Noise Level -161 dBm/Hz Displayed Average Noise Level -165 dBm/Hz Displayed Average Noise Level Preamplifier Yes Yes Yes Tracking generator Yes Yes Yes Vector network analysis Yes Yes Yes Distance To Fault Optional Optional Optional Modulation analysis Optional Optional Optional EMI Pre-compliance Test Kit (EMI) Optional Optional Optional Extended Measurement Kit (AMK) Optional Optional Optional Touch display Yes Yes Yes
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
