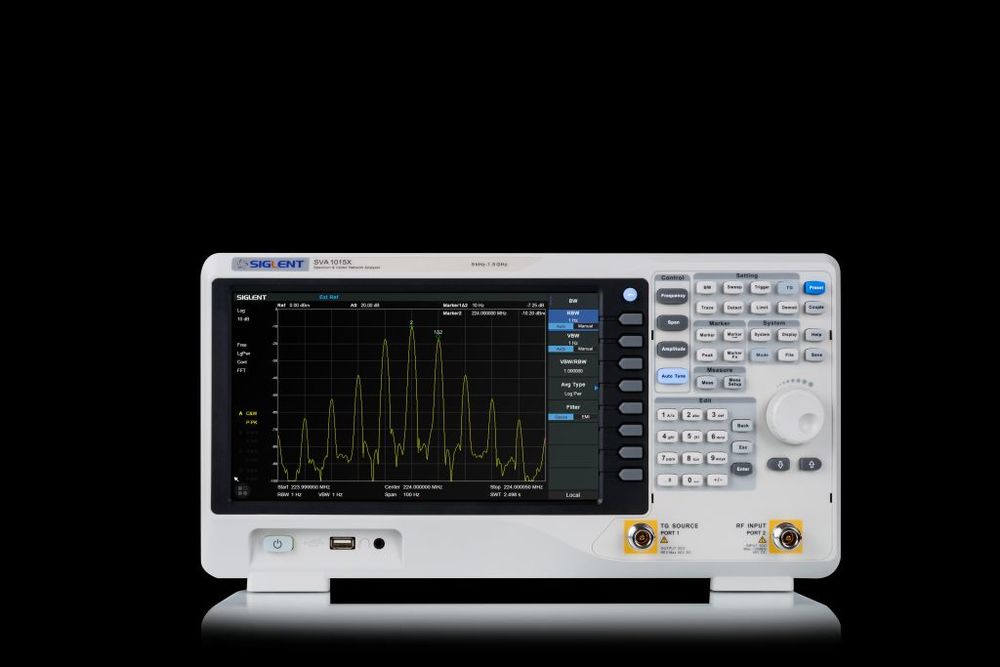

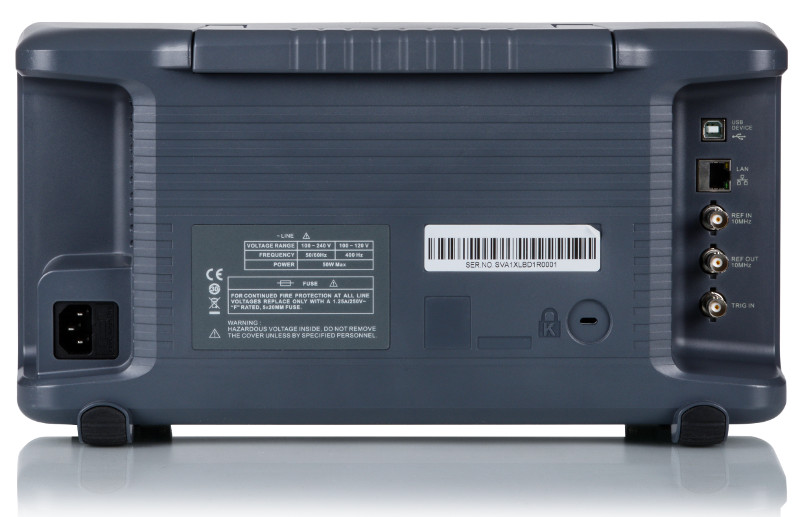

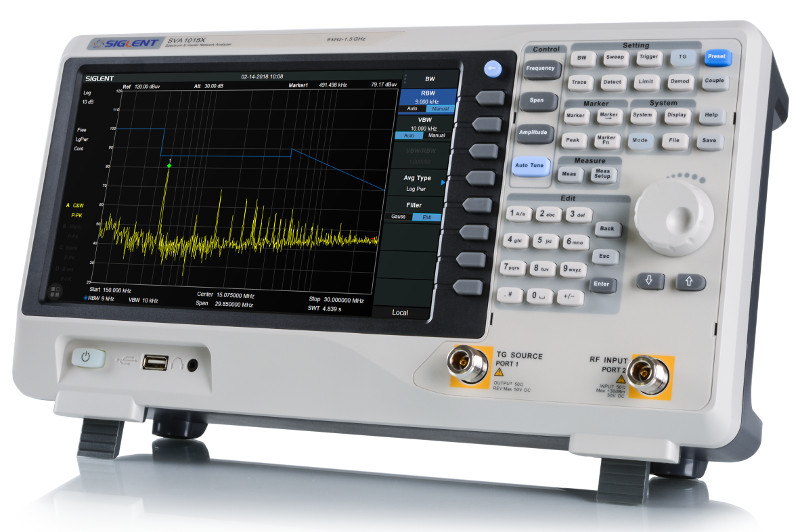

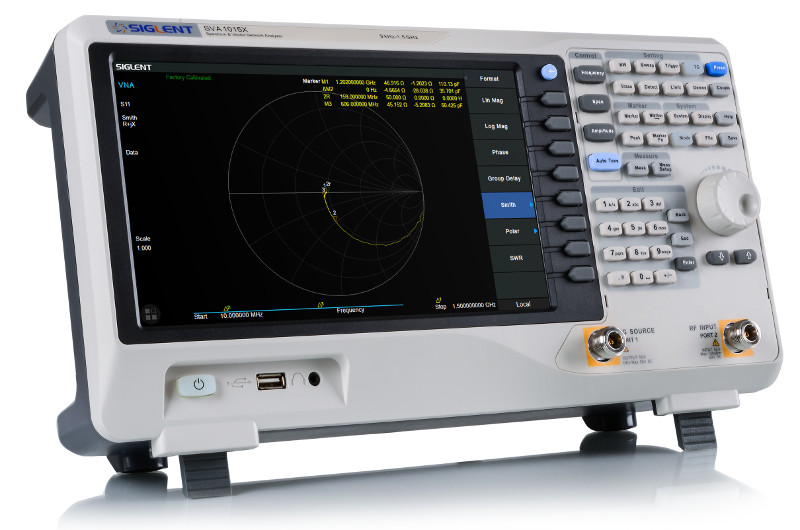

Siglent SVA1032X
Network and Spectrum Analyzer / The SVA1032X is a network and spectrum analyzer and offers a bandwidth of 3.2 GHz
|
2.895,28 EUR |
|
|
( 3.445,38 EUR incl. VAT ) ≈ £2,460.99 | ≈ $3,251.40 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1154322 |
|---|---|
| Mfg Part No: | SVA1032X |
| Weight: | 5 kg |
Product information for Siglent SVA1032X:
The SVA1032X is a network and spectrum analyzer and offers a bandwidth of 3.2 GHz, as well as reliable and automatic measurement.Features Vector network analysis from 100 kHz – 3.2 GHz Distance to fault (optional) Frequency range from 9 kHz to 3.2 GHz -165 dBm/Hz Displayed average noise level (typ.) -98 dBc/Hz at 10 kHz Offset phase noise (1 GHz, typ.) 1 Hz Minimum resolution bandwidth (RBW) Tracking generator (Std.) EMI filter and quasi-peak detector kit (Opt.) Advanced measurement kit (optional) 10.1 inch multi-touch screen, mouse and keyboard supported Web browser remote control on PC and mobile devices and file operation Technical data Model comparison
SVA1015X
SVA1032X
SVA1075X Maximum bandwidth 1.5 GHz 3.2 GHz 7.5 GHz Resolution Bandwidth (RBW) 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence Display of Average Noise Level (DANL), min. -156 dBm/Hz Displayed Average Noise Level -161 dBm/Hz Displayed Average Noise Level -165 dBm/Hz Displayed Average Noise Level Preamplifier Yes Yes Yes Tracking generator Yes Yes Yes Vector network analysis Yes Yes Yes Distance To Fault Optional Optional Optional Modulation analysis Optional Optional Optional EMI Pre-Compliance Test Kit (EMI) Optional Optional Optional Advanced Measurement Kit (AMK) Optional Optional Optional Touch display Yes Yes Yes
SVA1015X
SVA1032X
SVA1075X Maximum bandwidth 1.5 GHz 3.2 GHz 7.5 GHz Resolution Bandwidth (RBW) 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence Display of Average Noise Level (DANL), min. -156 dBm/Hz Displayed Average Noise Level -161 dBm/Hz Displayed Average Noise Level -165 dBm/Hz Displayed Average Noise Level Preamplifier Yes Yes Yes Tracking generator Yes Yes Yes Vector network analysis Yes Yes Yes Distance To Fault Optional Optional Optional Modulation analysis Optional Optional Optional EMI Pre-Compliance Test Kit (EMI) Optional Optional Optional Advanced Measurement Kit (AMK) Optional Optional Optional Touch display Yes Yes Yes
Questions & answers
What is the delivery time of Siglent SVA1032X Network and Spectrum Analyzer / The SVA1032X is a network and spectrum analyzer and offers a bandwidth of 3.2 GHz?
The article Siglent SVA1032X Network and Spectrum Analyzer / The SVA1032X is a network and spectrum analyzer and offers a bandwidth of 3.2 GHz is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siglent SVA1032X to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siglent SVA1032X Network and Spectrum Analyzer / The SVA1032X is a network and spectrum analyzer and offers a bandwidth of 3.2 GHz always at the best possible price. We can give you a discount of 2% on Siglent SVA1032X Network and Spectrum Analyzer / The SVA1032X is a network and spectrum analyzer and offers a bandwidth of 3.2 GHz if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
