Siglent SSG3032X-IQE
Signal Generator / The SSG3032X-IQE signal generator offers normal analog modulation such as AM, FM and PM.

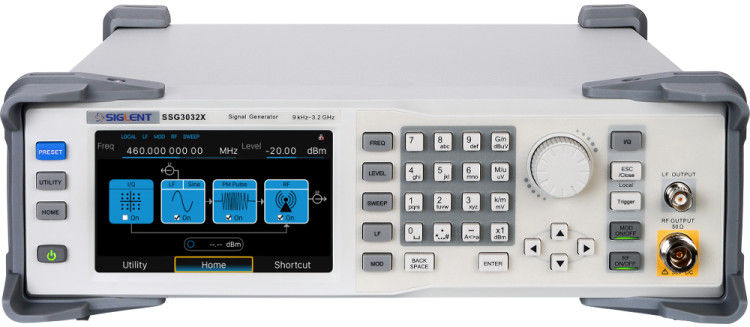

The SSG3032X-IQE signal generator from Siglent offers a frequency range of 9 kHz to 3.2 GHz and a level output of -110 dBm to +13 dBm. This model has a 5-inch TFT touch screen.Features Frequency up to 2.1 GHz/3.2 GHz 0.01 Hz resolution of frequency setting Level output from -110 dBm to +13 dBm Maximum level up to +20 dBm (typ.) Phase noise: -110 dBc/Hz at 1 GHz, 20 kHz offset (typ.) Level accuracy =0.7 dB (typ.) Provides analog AM, FM and PM modulation with internal, external or Int+Ext source Pulse modulation, on/off ratio =70 dBc Pulse train generator (option) External IQ modulation with SDG6000X as baseband IQ signal USB power meter measurement kit 5-inch TFT capacitive touch screen, mouse and keyboard supported Web browser remote control on PC and mobile devices Standard interfaces include USB host, USB device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB Technical data Model comparison
SSG3021X
SSG3032X
SSG3021X-IQE
SSG3032X-IQE Frequency range 9 kHz~2.1 GHz 9kHz~3.2GHz 9 kHz~2.1 GHz 9kHz~3.2GHz Amplitude resolution 0.01dB 0.01dB 0.01dB 0.01dB Phase noise -110 dBc/Hz @1 GHz, offset 20 kHz (typ.) -110 dBc/Hz @1 GHz, offset 20 kHz (typ.) -110 dBc/Hz @1 GHz, offset 20 kHz (typ.) -110 dBc/Hz @1 GHz, offset 20 kHz (typ.) External I/Q modulation No No Yes Yes
