Siglent SHS820X
Handheld Oscilloscope / The SHS820X handheld oscilloscope has two channels and offers a bandwidth of up to 200 MHz, as well as a memory

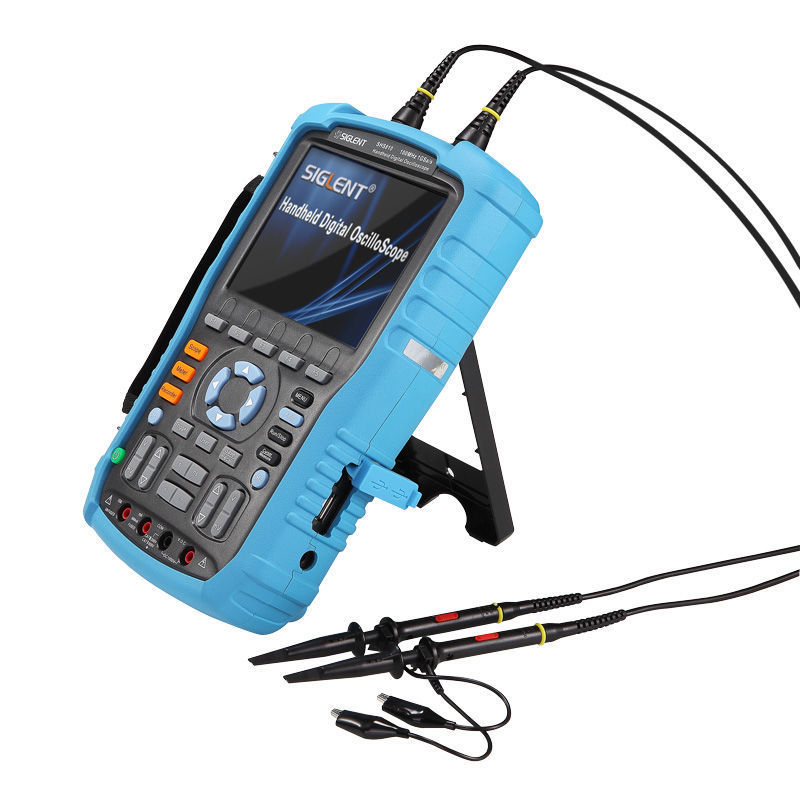

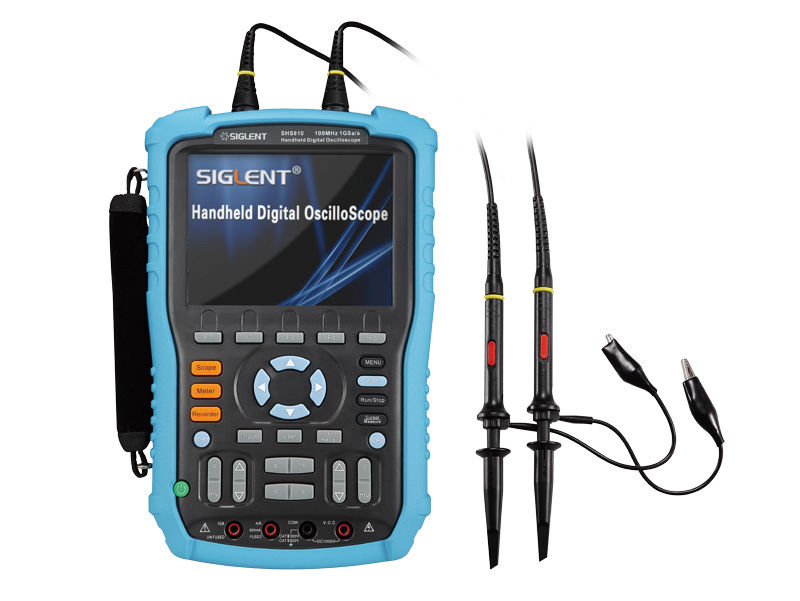

The handheld oscilloscope SHS820X is a high-quality two-channel storage oscilloscope that enables mobile use due to the existing battery. The device has a sampling rate of 1 GSa/s, a bandwidth of up to 200 MHz and a memory depth of 12 Mpts. Features Integrated oscilloscope, serial trigger and decoder, spectrum analysis, data logger and multimeter functions in a practical and portable design Models with 100 MHz or 200 MHz bandwidth Sampling rate of 1 GSa/s (single channel), 500 MSa/s (dual channel) Recording length up to 12 Mpts Waveform recording up to 22 hours IP protection rating: IP51 Intelligent trigger: edge, slope, pulse width, window, runt, interval, Timeout (Dropout), Pattern Digital Multimeter with 6000 Counts, Supports DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity Test. 1 Mpts FFT. Support tips and markers 5.6 inch TFT LCD display with 640*480 resolution UL2054 certified lithium battery pack, 6900 mAh capacity, external charger Intelligent triggers
The following trigger types are available for the SHS820X oscilloscope Edge Slope Pulse Width Window History Interval Timing Sample Technical data Model comparison
SHS810X
SHS820X
SHS1102X
SHS1202X Channels 2 2 2 2 Max. bandwidth 100 MHz 200 MHz 100 MHz 200 MHz Sampling rate < memory depth 1 GSa/s < 12 Mpts (1 channel)
500 MSa/s < 6 Mpts (2 channels) 1 GSa/s < 12 Mpts (1 channel)
500 MSa/s < 6 Mpts (2 channel) 1 GSa/s < 12 Mpts (1 channel)
500 MSa/s < 6 Mpts (2 channel) 1 GSa/s < 12 Mpts (1 channel)
500 MSa/s < 6 Mpts (2 channel) Dynamic range 400,000 wfms/s 400,000 wfms/s 400,000 wfms/s 400,000 wfms/s Isolated channels XX ? ? Max. input voltage oscilloscope
CAT II 300 Vrms between. BNC signal < earth
CAT II 30 Vrms between. BNC GND < Earth
CAT II 300 Vrms between. BNC signal < BNC GND
multimeter
CAT III 300 Vrms, CAT II 600 Vrms oscilloscope
CAT II 300 Vrms between. BNC signal < earth
CAT II 30 Vrms between. BNC GND < Earth
CAT II 300 Vrms between. BNC Signal < BNC GND
Multimeter
CAT III 300 Vrms, CAT II 600 Vrms Oscilloscope
CAT III 600 Vrms, CAT II 1000 Vrms between BNC Signal < Earth
CAT III 600 Vrms, CAT II 1000 Vrms between BNC GND < Earth
CAT III 300 Vrms between BNC Signal < GND
Multimeter
CAT III 600 Vrms, CAT II 1000 Vrms Oscilloscope
CAT III 600 Vrms, CAT II 1000 Vrms between BNC Signal < Earth
CAT III 600 Vrms, CAT II 1000 Vrms between BNC GND < Earth
CAT III 300 Vrms between BNC signal < GND
multimeter
CAT III 600 Vrms, CAT II 1000 Vrms
