Siglent SDS6204L
Digital Storage Oscilloscope / The SDS6204L is a storage oscilloscope offering a bandwidth of 2 GHz, as well as 4 analog channels and

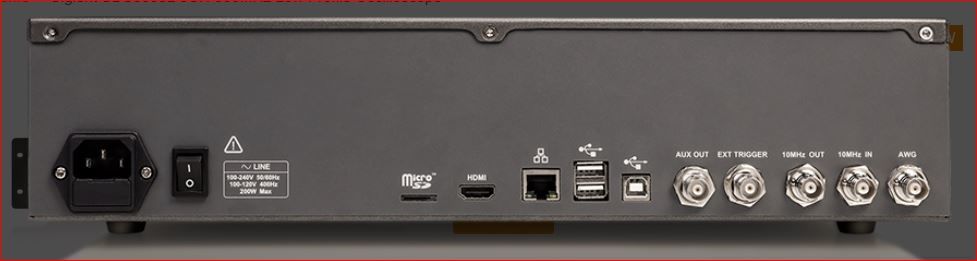

SIGLENT's low-profile SDS6204L digital storage oscilloscope offers 4 analog channels + 16 digital channels in a space-saving package size. This model is available in 2 GHz bandwidth and has a maximum sample rate of 5 GSa/s (10 GSa/s ESR) for each channel, as well as a maximum record length of 500 Mpts/channel.Features 8/4 analog channels + 1 external trigger. Designed for expansion. Combine multiple units to create a high-speed acquisition system with up to 512 channels. Up to 2 GHz bandwidth with 5 GSa/s (10 GSa/s ESR) sampling rate on each channel Low background noise, supports vertical scales from 0.5 mV/div to 10 V/div SPO technology Signal acquisition rates of up to 170,000 wfm/s (normal mode) and 750,000 wfm/s (sequence mode) Supports 256-step intensity gradation and color temperature display modes 500 Mpts total record length for all 4 channels Digital trigger system Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering Serial bus triggering and decoder, supports I 2 C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I 2 S, MIL-STD-1553B, SENT and Manchester protocols Segmented acquisition mode (Sequence), which divides the maximum record length into multiple segments (up to 80,000) according to the trigger conditions set by the user, with a very short dead time between segments to capture the qualifying event History Waveform Record (History) function, the maximum length of the recorded waveform is 80,000 frames Automatic measurements on over 50 parameters, supports statistics with histogram, track, trend, gating measurement and measurements on math, history, memory and ref 4 math tracks (8 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor Extensive data analysis functions such as search, Navigate, digital voltmeter, counter, waveform histogram, power analysis and eye/jitter analysis 16 digital channels (optional) 25MHz function / Arbitrary Waveform Generator, built-in multiple predefined waveforms Interfaces include: 4x USB hosts, USB device (USBTMC), 1000M LAN (VXI-11/ Telnet/ Socket), Micro SD card, Pass/Fail, Trigger output, HDMI, 10MHz input, 10MHz output Built-in web server supports remote control via LAN port using a web browser Supports SCPI remote control commands Supports external mouse and keyboard Specifications Model Comparison
SDS6208L
SDS6204L
SDS6108L
SDS6104L

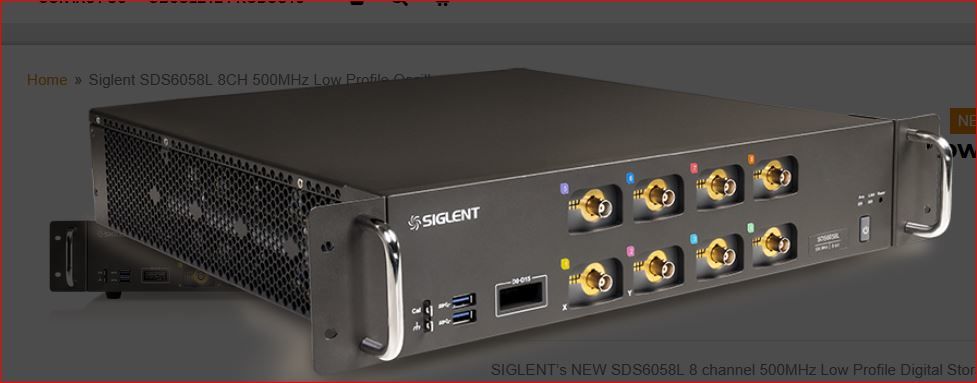

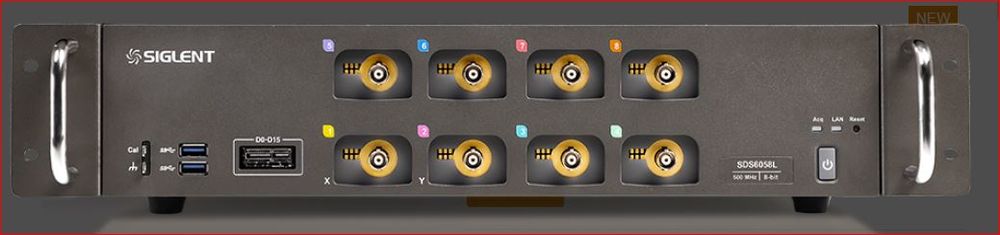

SDS6058L
SDS6054L Bandwidth 2 GHz 2 GHz 1 GHz 1 GHz 500 MHz 500 MHz Channels 8 + ERW 4 + ERW 8 + ERW 4 + ERW 8 + ERW 4 + ERW Real-time sampling rate 5 GSa/s (10 GSa/s ESR) on each channel 5 GSa/s (10 GSa/s ESR) on each channel 5 GSa/s (10 GSa/s ESR) on each channel 5 GSa/s (10 GSa/s ESR) on each channel 5 GSa/s (10 GSa/s ESR) on each channel Acquisition rate 170,000 wfm/s (normal mode), 750,000 wfm/s (sequence mode) 170,000 wfm/s (normal mode), 750,000 wfm/s (sequence mode) 170,000 wfm/s (normal mode), 750,000 wfm/s (sequence mode) 170,000 wfm/s (normal mode), 750,000 wfm/s (sequence mode) 170,000 wfm/s (normal mode), 750,000 wfm/s (sequence mode) 170,000 wfm/s (normal mode), 750,000 wfm/s (sequence mode) Memory depth 500 Mpts/ch (single channel), 250 Mpts/ch (dual channel), 125 Mpts/ch (3 or 4 channels) 500 Mpts/ch (single channel), 250 Mpts/ch (dual channel), 125 Mpts/ch (3 or 4 channels) 500 Mpts/ch (single channel), 250 Mpts/ch (dual channel), 125 Mpts/ch (3 or 4 channels) 500 Mpts/ch (single channel), 250 Mpts/ch (dual channel), 125 Mpts/ch (3 or 4 channels) 500 Mpts/ch (single channel), 250 Mpts/ch (dual channel), 125 Mpts/ch (3 or 4 channels) 500 Mpts/ch (single channel), 250 Mpts/ch (dual channel), 125 Mpts/ch (3 or 4 channels)
