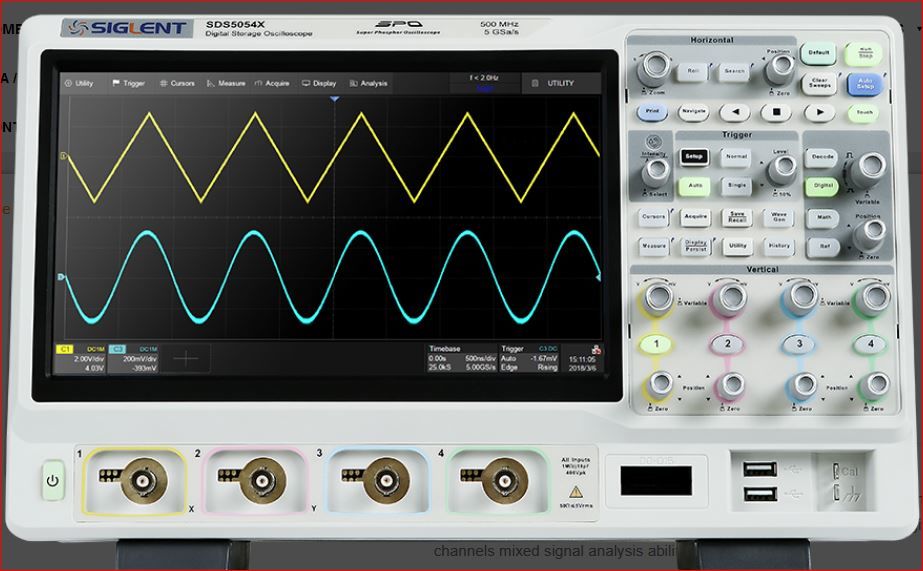

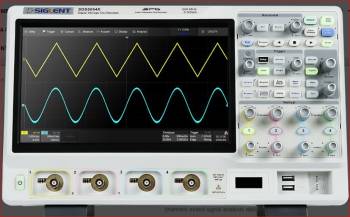

Siglent SDS5054X
Oscilloscope / The SDS5054X oscilloscope from Siglent has a bandwidth of 500 MHz and 4 analog channels

The Siglent SDS5054X storage oscilloscope has a bandwidth of 500 MHz and 4 analog channels. It has a maximum sampling rate of 5 GSa/s and a memory depth of 250 Mpts. The user-friendly design of the control interface allows quick access to the most frequently used functions.Features Model 500 MHz with real-time sampling rate of up to 5 GSa/s 4 channels + EXT SPO technology Signal acquisition rates up to 110,000 Wfm/s (normal mode) and 480,000 Wfm/s (sequence mode) Supports 256 intensity levels and color temperature display modes Record length up to 250 Mpts Digital trigger system Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified and Video (HDTV supported). Trigger zone (Trigger Zone) simplifies advanced triggering Serial Bus Triggering and Decoder, supports I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD-1553B protocols Low background noise, supports voltage scales from 0.5 mV/div to 10 V/div Segmented acquisition mode (Sequence), which divides the maximum data record length into multiple segments (up to 100,000) according to the user-specified trigger conditions with a very short dead time between segments to capture the qualification event History Waveform Record (History) function, the maximum length of the recorded signal curve is 100,000 frames Automatic measurement function for 39 parameters, supports statistics with histogram, gating measurement, math measurement, history measurement and ref measurement 25 MHz function/arbitrary waveform generator, built-in multiple predefined waveforms Large 10.1-inch TFT LCD display with 1024*600 resolution Capacitive touch screen supports multi-touch gestures Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11, Telnet, Jack, Web), Pass/Fail, Trigger Out, 10MHz In, 10MHz Out, VGA Output Built-in web server supports remote control via LAN port using web browser Supports SCPI remote control commands Technical Specifications Device Specification
SDS5054X
SDS5034X
SDS5104X Bandwidth 500MHz 350MHz 1GHz Channels 4+EXT 4+EXT 4+EXT Maximum sampling rate 5 GSa/s (single channel)
2.5 GSa/s (dual channel) 5 GSa/s (single channel)
2.5 GSa/s (dual channel) 5 GSa/s (single channel)
2.5 GSa/s (dual channel) Signal acquisition rate 110,000 wfm/s (normal mode)
480,000 wfm/s (sequence mode) 110,000 wfm/s (normal mode)
480,000 wfm/s (sequence mode) 110,000 wfm/s (normal mode)
480,000 wfm/s (sequence mode) Memory depth 250 Mpts (single channel)
125 Mpts (dual channel) 250 Mpts (single channel)
125 Mpts (dual channel) 250 Mpts (single channel)
125 Mpts (dual channel) Display 10.1 inch LCD 1024*1524 cm ( 600 inch ) 10.1 inch LCD "1024*1524 cm ( 600 inch ) 10.1 inch LCD "1024*600
