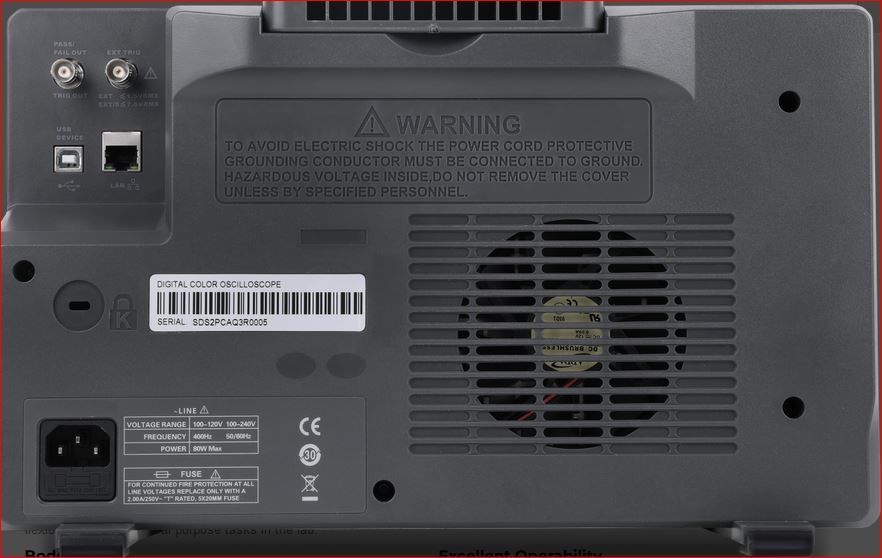

Siglent SDS2104X Plus
4Ch 100MHz 2GSa/s Oscilloscope

The SDS2104X Plus oscilloscope from Siglent impresses with its powerful hardware and a variety of functions. This model offers a bandwidth of 100 MHz, as well as 4 analog and 16 digital channels of mixed-signal analysis capability. The SDS2104X has a maximum sampling rate of 2 GSa/s and a maximum recording length of 200 Mpts/channel. Features Available bandwidths: 350 MHz, 200 MHz and 100 MHz Real-time sampling rate of up to 2 GSa/s. For 350 MHz models A 500 MHz bandwidth upgrade option is available. SPO technology Signal acquisition rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode) Supports intensity gradation and color temperature display modes with 256 levels Recording length up to 200 Mpts/channel, total 400 Mpts for all 4 channels Digital Trigger system Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported). The trigger zone simplifies advanced triggering Serial bus triggering and decoder, supports I 2 C, SPI, UART, CAN, LIN (standard) and CAN FD, FlexRay, I 2 S and MIL-STD-1553B (optional) protocols Low background noise with Voltage scales from 0.5mV/Div to 10V/Div 10-bit mode provides higher resolution and lower noise Segmented acquisition mode (sequence mode) where the maximum data set length is divided into multiple segments (up to 90,000) with a very short dead time between segments for the detection of the qualifying event. History waveform recording function (history) for up to 90,000 triggered waveforms (frames). Automatic measurement function for more than 50 parameters, supports statistics with histogram and trend. Two mathematical traces Support 2 Mpts FFT, +, -, x, ÷, d/dt, ?dt, v, average, ERES and formula editor Numerous data processing and analysis functions such as search, navigation, mask test, Bode plot, power analysis (optional) and counter 16 digital channels (optional) Built-in 50MHz waveform generator (optional) Large 10.1-inch TFT LCD display with 1024×600 resolution Capacitive touch screen supports multi-touch gestures Multiple interfaces: USB host, USB device (USBTMC), LAN (VXI-11 / Telnet / Socket), Pass / Fail, Trigger Out The built-in web server supports remote control via the LAN port using a web browser. Supports SCPI remote control commands Technical data device specification

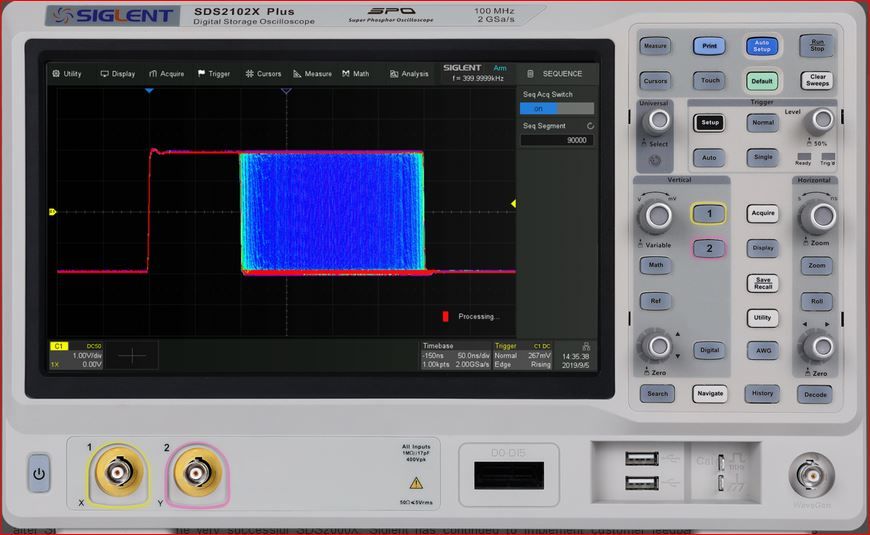

SDS2102x Plus
SDS2204X plus
SDS2354X
plus bandwidth 100 MHz 100 MHz 350 MHz channels 2+ EXT 4+ Ext 4+ ext 4+ Ext Funishing rate (realzstead) GSa / s 2 GSa / s Acquisition rate 120 wfm/s 120 wfm/s 120 wfm/s 120 wfm/s Storage depth 200 Mpts / ch 200 Mpts / ch 200 Mpts / ch 200 Mpts / ch
