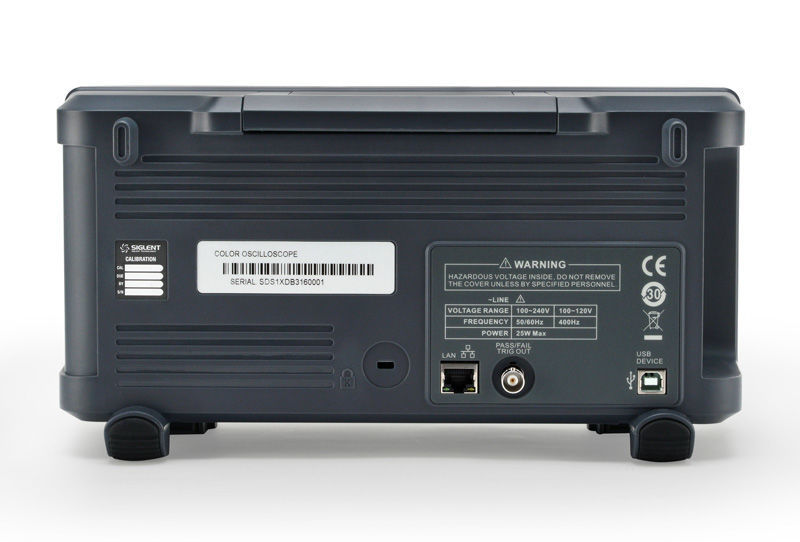

Siglent SDS1204X-E
200MHz four-channel oscilloscope

The Siglent SDS1204X-E storage oscilloscope has a bandwidth of 200 MHz and 4 channels. It has a maximum sampling rate of 1 GSa/s and a standard recording length of 14 Mpts. The user-friendly design of the control interface allows access to the most frequently required functions. Features 200 MHz bandwidth 4 channels Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Timeout (Dropout), and Pattern Serial bus triggering and - Decoding: IIC, SPI, UART, RS232, CAN and LIN Video trigger and supports HDTV Low background noise and voltage scales from 500µV/Div to 10V/Div 10 kinds of one-key key combinations, supports auto setup, standard, cursor, Measure, Roll, History, Display/Permanence, Clear Sweep, Zoom and Print Segmented acquisition mode (sequence) that divides the maximum record length into multiple segments (up to 80,000) depending on user-specified trigger conditions, with a very small dead time segment for Capture the qualification event. History Waveform Record (History) function, the maximum length of the recorded signal curve is 80,000 frame Automatic measurement function for 38 parameters, supports statistics, gating measurement, math measurement, history measurement and ref measurement 1 Mpts FFT Real measurements and calculations can be done all 14 Use Mpts to memory Preset key can be customized for user settings or factory defaults Security erase mode High speed hardware based pass/fail function Large 7 inch TFT LCD display with 800*480 resolution Multiple interface types: USB host, USB Device (USB-TMC), LAN (VXI-11), Pass / Fail, Trigger Out Supports SCPI remote control commands Multilingual display and embedded help Browser control / onboard website for software-free monitoring Bode plotting function controls external generator (SIGLENT SDG or SAG generators) Technical data Model overview

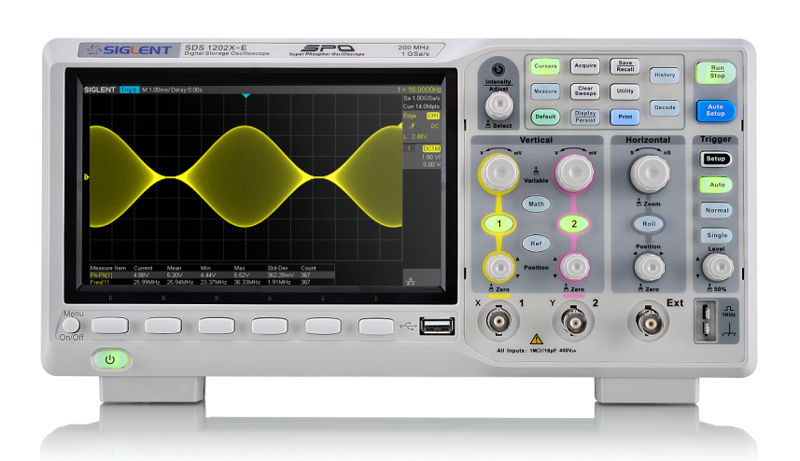

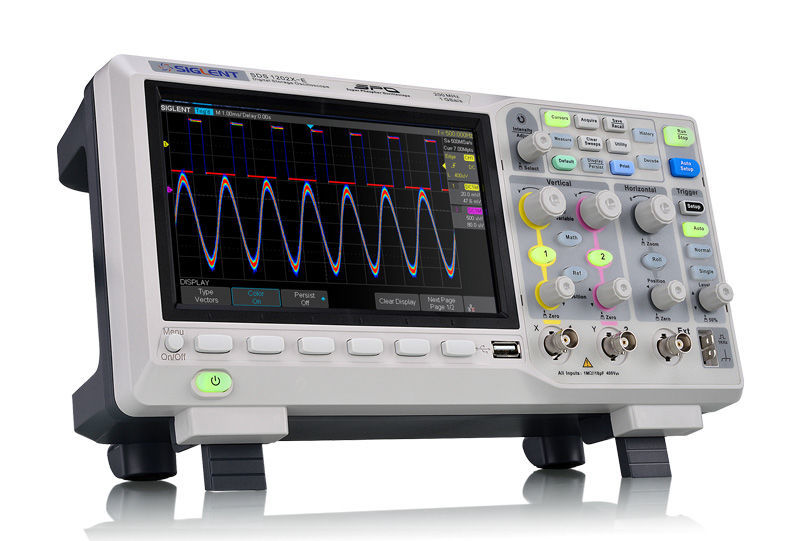

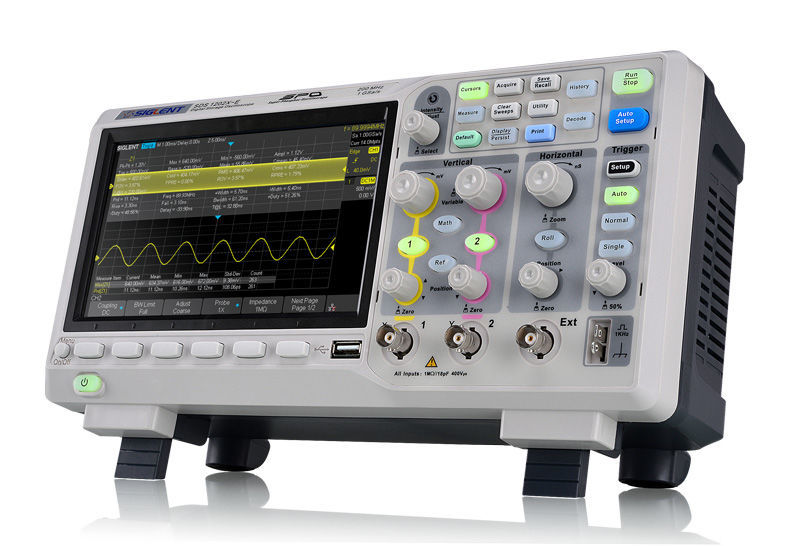

SDS1202X-E
SDS1104X-E
SDS1204X-E Bandwidth 200 MHz 100 MHz 200 MHz Sampling rate (max.) 1 GSa 1 GSa 1 GSa Signal acquisition rate 100000 wfms/s 100000 wfms/s 100000 wfms/s Memory deep 14 MPts 14 MPts 14 MPts Screen 17.78 cm / 7 inch (800x480) 17.78 cm / 7 inch (800x480) 17.78 cm / 7 inch (800x480) Channels 2 4 4 FFT support points 1 MPts 1 MPts 1 MPts Function generator No chargeable Paid option Logic analyzer option No Paid option Paid option Serial decoders Included Included Included
