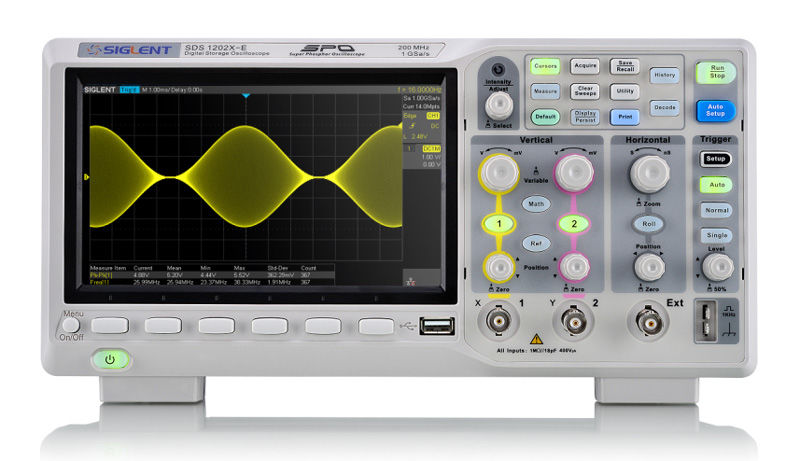

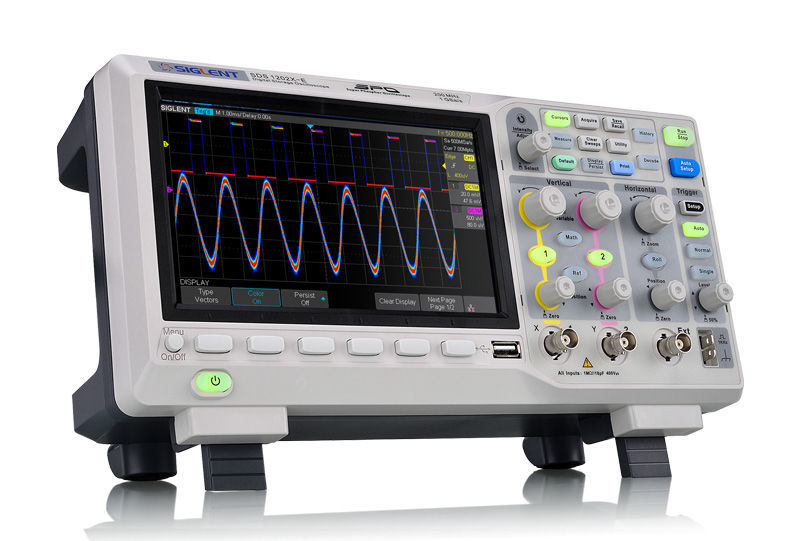

Siglent SDS1202X-E
200MHz dual channel oscilloscope

The SDS1202X-E is Siglent's most popular oscilloscope. With a bandwidth of 200 MHz, 2 channels and countless software functions, it is suitable for a wide range of applications. In the area of entry-level oscilloscopes, there is currently no better alternative to the SDS1202X-E oscilloscope, as the device delivers the best overall package on the market in terms of features and price. This is underlined again by the numerous excellent reviews from various electronics technicians, engineers and product testers. Features Intelligent triggers: edge, slope, pulse width, window, run, interval, timeout (dropout) and pattern Free serial bus triggering and decoding for I2C, SPI, UART, RS232, CAN and LIN Video trigger and HDTV support Low background noise and voltage scales from 500 µV / div to 10 V / div Configurable quick access function, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print Segmented capture mode (Sequence) that divides the maximum record length into multiple segments (up to 80,000) according to user-set trigger conditions, with a very small dead time segment to capture the qualifying event. Waveform recording (history), the maximum length of the recorded waveform is 80,000 frames Automatic measurement function for 38 parameters, supports statistics, gating measurement, mathematical measurement, history measurement and ref measurement Large 1 Mpts FFT function for a high number of support points Real measurements and mathematical calculations can use the entire 14 Mpts of memory High speed hardware based pass/fail function Large 7 inch TFT LCD display with 800*480 resolution Multiple interface types: USB host, USB device (USB TMC), LAN (VXI-11), Pass / Fail, Trigger Out Supports SCPI remote control commands Intuitive menu navigation and embedded help Browser control/onboard website for software-free monitoring (4-channel models only) Bode plot function controls external Generator (SIGLENT SDG or SAG generators, 4-channel models only) Technical data Device specification
Siglent SDS1202X-E Oscilloscope Screen 17.78 cm (17,8 cm ( 7 inch )) WVGA color LCD Resolution 800 × 480 pixels Ports USB host for connection of e.g. USB sticks for storing waveforms
USB device for connection to a PC
LAN for use in the network (LXI)
GPIB (IEE-488, General Purpose Interface Bus) via the USB-GPIB module (optionally available)
Pass/Fail -Signal output Dimensions 312 mm × 150 mm × 134 mm Weight 2.8 kg Channels 2 sampling rate 1 GSa/s Real time (1 channel) Bandwidth 200 MHz Sampling mode Normal sampling, peak value detection (Peak Detection)
and averaging (Average) Mathematical functions + , - , * , / , FFT (1 Mpoint) , d/dt , ?dt , v Supported FFT windows Rectangle, Hanning, Hamming, Blackman Signal decoding RS232/UART, I²C, SPI, CAN , LIN (standard option) input (signal) DC/AC coupling, CAT II 300 Vrms sampling rate (signal) up to 1 GSa/s real time time base (signal) 1 ns/div up to 100 s/div memory (signal) 14M measuring points ( total) A/D converter Resolution 8 bit Vertical base 500 µV/div to 10 V/div Trigger sources Channel triggering, EXT signal system and line/field frequencies
(video trigger mode) PAL, NTSC
720p/50, 20p/60, 1080p/50, 1080p/60, 1080i/50, 1080i/60, custom trigger functions edge, edge rise, pulse, video, window, pattern, interval, failure, runt, pattern, serial (I²C, SPI, RS232/UART, CAN, LIN) cursor measurement Manual mode, track mode, auto mode, voltage difference (?V) and
time difference (?T) between two cursors Automatic measurement Max, Min, Pk-Pk, Ampl, Top, Base, Mean, Cmean, StDev, Cstd, VRMS, Crms , FOV, FPRE, ROV, RPRE, Level@X, Period, Freq, +Wid, -Wid, Rise Time, Fall Time, Bwid, +Dut, -Dut, Delay, Time@Level, Phase, FRR, FRF, FFR , FFF, LRR, LRF, LFF, Skew Model overview
SDS1202X-E
SDS1104X-E
SDS1204X-E Bandwidth 200 MHz 100 MHz 200 MHz Sampling rate (max.) 1 GSa 1 GSa 1 GSa Signal acquisition rate 100000 wfms/s 100000 wfms/s 100000 wfms/ s Memory depth 14 MPts 14 MPts 14 MPts Screen 17.78 cm / 7 inch (800x480) 17.78 cm / 7 inch (800x480) 17.78 cm / 7 inch (800x480) Channels 2 4 4 FFT support points 1 MPts 1 MPts 1 MPts function generator No paid option paid option Logic analyzer No paid option paid option Serial decoders Included Included Included
