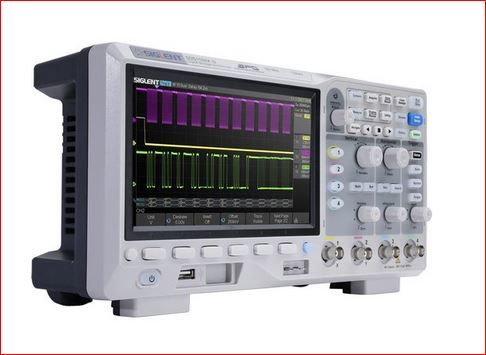

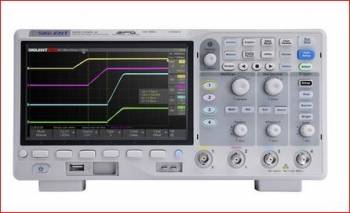

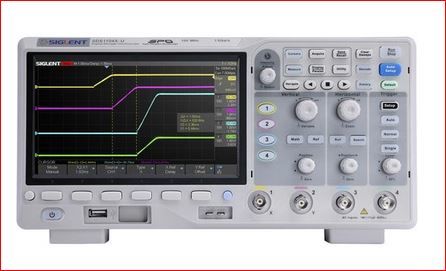

Siglent SDS1104X-U
100MHz four-channel oscilloscope

The SDS1104X-U series uses a new generation of SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The SDS1104X-U oscilloscope is available in 100 MHz bandwidth. It has a maximum sampling rate of 1 GSa/s and a maximum record length of 14 Mpts.Features 100 MHz bandwidth Real-time sampling rate up to 1 GSa/s 128 kpts FFT, supports peaks and markers The latest generation of SPO technology Signal acquisition rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode) Supports 256-level intensity gradation and color temperature display modes Record length up to 14Mpts and digital trigger system Intelligent trigger: edge, slope, pulse width, window, runt, interval, timeout (dropout), pattern Serial bus triggering and decoding (standard), supports IIC, SPI, UART, CAN, LIN protocols incl. video trigger, supports HDTV 10 kinds of One-key shortcuts, supports auto setup, default, cursor, measure, roll, history, view/keep, clear sweep, zoom. Automatic measurement function for 38 parameters, as well as measurement statistics, zoom, gating, math, history and reference functions History waveform recording function (the maximum length of the recorded waveform is 80,000 frames) Mathematical functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root) Large 7-inch TFT LCD display with 800 * 480 resolution Segmented acquisition (sequence) mode divides the maximum record length into multiple segments (up to 80,000) according to the trigger conditions set by the user Comprehensive display and trigger functions The SDS1104X-U also has a 256-level intensity display function and a color temperature display mode that are not found in other models in this class. SIGLENT's latest oscilloscope model supports multiple powerful trigger modes, including serial bus triggering. Serial decoding for IIC, SPI, UART, CAN and LIN bus types is included as standard.Powerful FeaturesThe XU models also include history waveform recording and sequential triggering, enabling advanced waveform recording and analysis. Another powerful addition is the new 128k point FFT math function, which gives the SDS1000X-U very high frequency resolution when observing signal spectra. The new digital design includes a hardware co-processor that delivers measurements quickly and accurately without slowing down front panel acquisition and response. The SDS1000X-U also supports search and navigation functions. The feature set and performance of SIGLENT's new SDS1000X-U are unmatched in this price range.Technical data Device specification
SDS1104X-U
SDS1104X-E Channels 4 4 Bandwidth 100 MHz 100 MHz Sampling rate 1 GSa/s (1 channel)
500 MSa/s (2 channels)
250 MSa/s (4 channels) 1 GSa/s (1 channel)
500 MSa/s (2 channels)
250 MSa/s (4 channels) Memory depth 14 MPts/CH (1 channel)
7 MPts/CH (2 channels)
3.5 MPts/CH (4 channels) 14 MPts/CH (1/2 channels)
7 MPts/CH (4 channels) Signal acquisition rate 100 000 wfm/s (Normal Mode)
400 000 wfm/s (Sequence Mode) 100 000 wfm/s (Normal Mode)
400 000 wfm/s (Sequence Mode) Vertical Resolution 8-bit
up to 11-bit in ERES mode 8-bit
up to 11-bit in ERES mode Serial Trigger < Decoder I2C, SPI, UART, CAN, LIN (standard) I2C, SPI, UART, CAN, LIN (standard) Bode Plot X ? Web Browser Remote Control X ?
