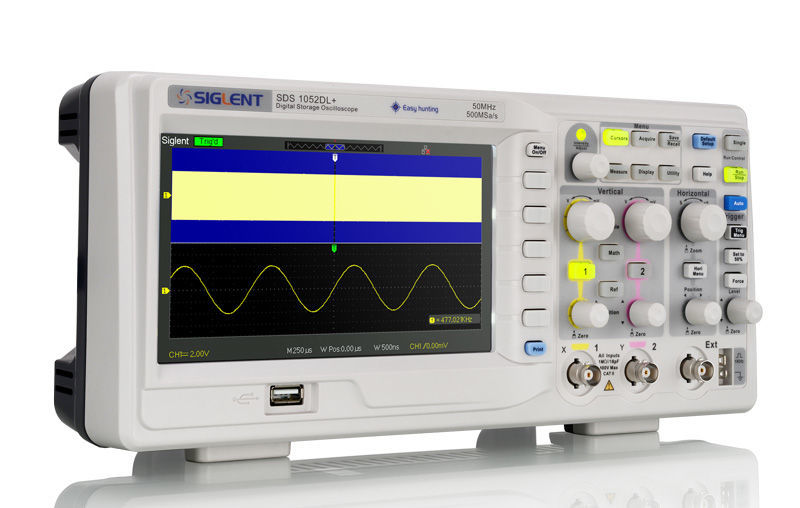

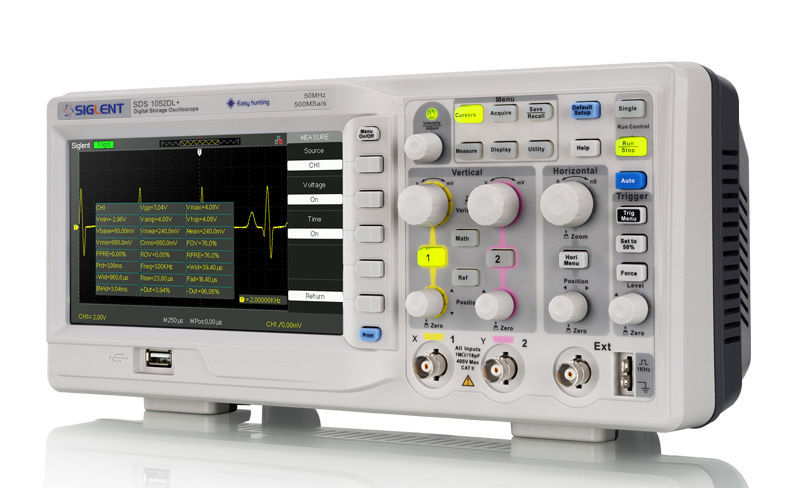

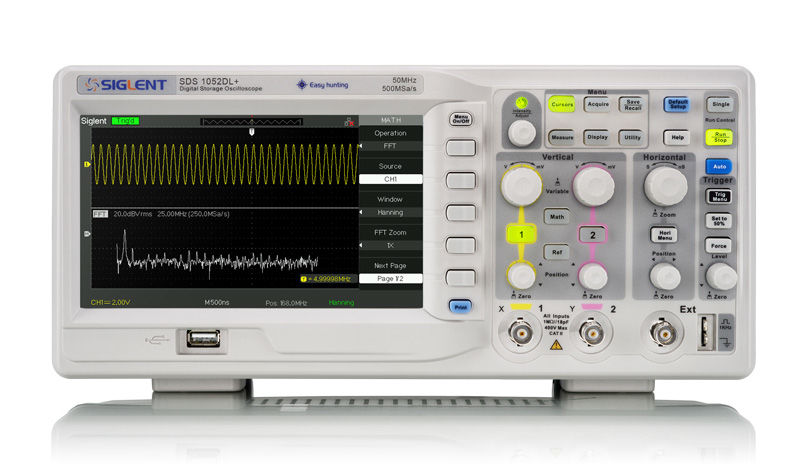

Siglent SDS1052DL
+ 50MHz dual channel oscilloscope
|
282,51 EUR |
|
|
( 336,19 EUR incl. VAT ) ≈ £242.40 | ≈ $327.43 plus delivery charges: 53,00 € |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2082113 |
|---|---|
| Mfg Part No: | SDS1052DL |
| Weight: | 5 kg |
Product information for Siglent SDS1052DL+:
The device offers the possibility of using 2 channels simultaneously. In addition, 1 external trigger channel is integrated into the device. The results are displayed as clear waveforms on the SDS1052Dl's 7-inch color TFT screen. The device also features backlit buttons for easy interpretation in low light conditions.
Multiple trigger modes are also included in the SDS1052DL+. Edge, pulse, slop, video and alternate trigger modes are available. The device also features a memory depth of 32kpts and a vertical sensitivity range of 2mV/div - 10V/div.
The SDS1052DL+ also features a built-in digital filter and a recorder function for storing test data. It also has USB and RS-232 ports for downloading this data to PC. The interface of the device is available in 12 different languages.Features Supports multilingual display and embedded help Screen saver from 1 minute to 5 hours Digital filter and waveform recording function Shortcut memory function button 7 inch TFT LCD display with a resolution of 800 * 480 Multiple Interfaces: USB host, USB device (USBTMC), LAN (VXI-11), Pass/Fail Technical data Device specification
SDS1102CML+
SDS1052DL+ Bandwidth 100 MHz 50 MHz Channels 2CH +Ext 2CH +Ext Real-time sampling rate 1 GSa/s 500 MSa/s Memory depth 32 K 2 Mpts Rise Time 3.5 ns 7 ns Imput Impedance 1MO?17pF 1MO?17pF Time Base Range 2.5ns/div-50s/div 10ns/div-50s/div Vertical Sensitivity 2mV-10V/div 2mV-10V/div Vertical Resolution 8 bit 8 bit trigger source CH1, CH2, Ext, Ext/5, AC Line CH1, CH2, Ext, Ext/5, AC Line trigger types Edge, Pulse, Video, Slope, Alternative Edge, Pulse, Video, Slope, Alternative Interfaces USB Host, USB Device, LAN, Pass/Fail USB Host, USB Device, LAN, Pass/Fail, RS232
Questions & answers
What is the delivery time of Siglent SDS1052DL+ 50MHz dual channel oscilloscope?
The article Siglent SDS1052DL+ 50MHz dual channel oscilloscope is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siglent SDS1052DL+ to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siglent SDS1052DL+ 50MHz dual channel oscilloscope always at the best possible price. We can give you a discount of 2% on Siglent SDS1052DL+ 50MHz dual channel oscilloscope if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
