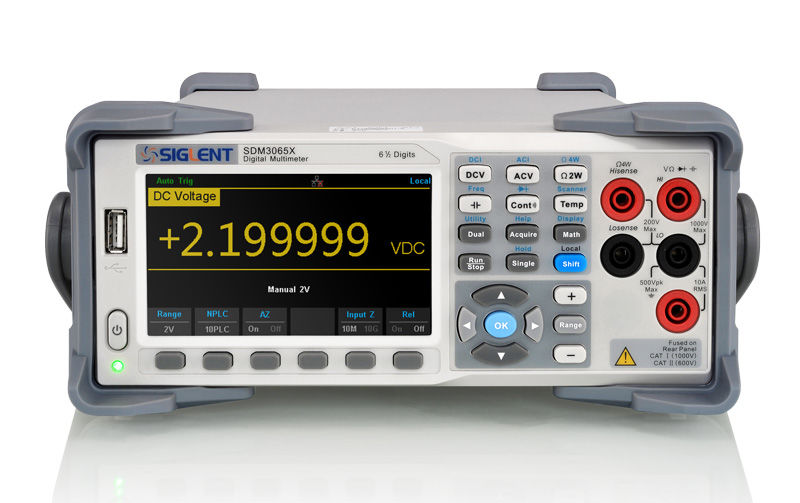

Siglent SDM3065X-SC
digital multimeter / incl. SC 1016 scanner card

The Siglent SDM3065X-SC-SC has a memory depth of 10k, a measurement speed of up to 10000 Sa/s, 1 GB Nand Flash and a scanner card. Siglent's SDM3065X-SC can be used to perform true RMS measurements of AC voltage and AC current. With its intuitive menu navigation and convenient functions, it makes it easier for users to carry out their measurement tasks and helps to achieve more precise measurement results. The SDM3065X-SC's 10,9 cm ( 4,3 inch ) 480*272 pixel display gives a good overview of all functions and offers a resolution of 6 1/2 digits (2,200,000 counts). The SDM3065X-SC is particularly suitable for the requirements of high-accuracy and high-precision application measurement.
FeaturesTrue 6½ digit measurement resolution (2,200,000 counts) 1 GB NAND flash size, mass storage configuration files and data files True RMS AC voltage and AC current measurement Standard interfaces: USB Device, USB Host, LAN (Optional accessory: USB-GPIB adapter) Supports dual display (Chinese and English menu) File management (support U-disc and local storage) Built-in cold junction compensation for thermocouple Comes with a simple, convenient and flexible control software for sensor measurements: EasyDMM Math function: Max, Min, Average, Standard deviation, dBm/dB, relative measurement, pass/fail histogram, trend graph, bar graph, etc. Hardware Details The SDM3065X / SDM3065X-SC is a 6 ½ digit DMM (2,200,000 count digital multimeter) with integrated dual display. The SDM3065X series is particularly well suited to the requirements of high-accuracy and high-precision application measurements. Technical data Model comparison
SDM3045X
SDM3055
SDM3055-SC
SDM3065X
SDM3065X-SC max. resolution 4½ digits 5½ digits 5½ digits 6½ digits 6½ digits max. display value 60,000 240,000 2,200,000 2,200,000 max. sampling rate 150 Sa/s 150 Sa/s 150 Sa/s max. 10,000 Sa/s max. 10,000 Sa/s memory depth 10k readings from historical records 10k readings from historical records 10k readings from historical records 10k readings from historical Records 10k readings from historical records Interfaces USB Client, USB Host, LAN USB Client, USB Host, LAN, GPIB(optional) USB Client, USB Host, LAN, GPIB(optional) USB Client, USB Host, LAN, GPIB(optional) USB Client, USB Host, LAN, GPIB(optional) DC Voltage range 200mV-1000V 200mV-1000V 200mV-1000V 200mV-1000V 200mV-1000V AC Voltage range 200mV-750V 200mV-750V 200mV-750V 200mV-750V 200mV-750V DC Current range 200µA-10A 200µA-10A 200µA-10A 200µA-10A 200µA-10A 200µA-10A Scanner Card No No Yes No Yes
