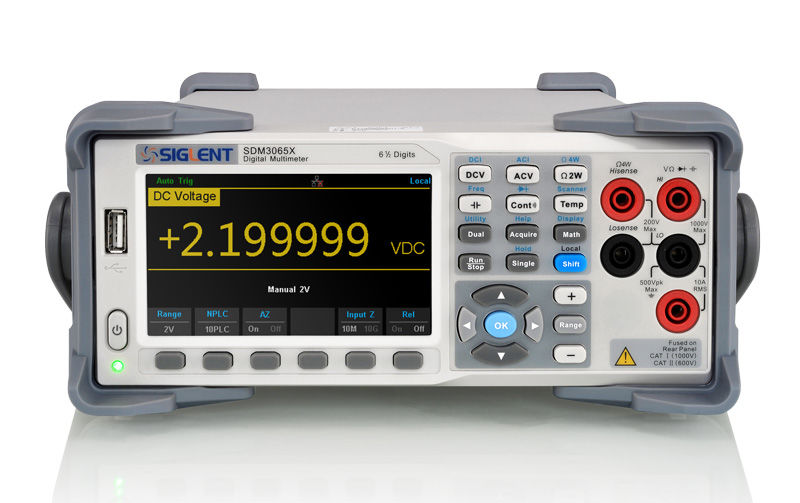

Siglent SDM3065X
Digital Multimeter / The SDM3065X-SC is a high quality digital multimeter with a memory depth of 10k.

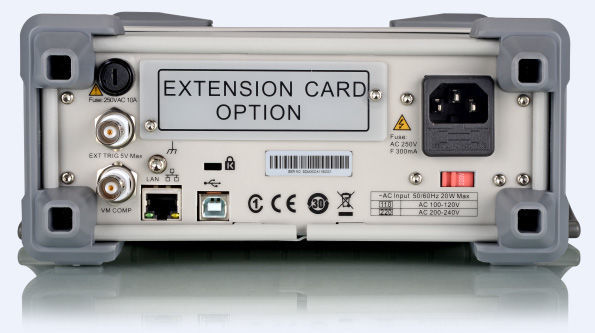

The Siglent SDM3065X has a memory depth of 10k, a measurement speed of up to 10000 Sa/s and 1 GB Nand Flash. Siglent's SDM3065X enables true RMS measurements of AC voltage and AC current. With its intuitive menu navigation and convenience function, it makes it easier for the user to carry out their measurement tasks and helps to achieve more precise measurement results. The display of the SDM3065X with 10,9 cm ( 4,3 inch ) 480*272 pixels provides a good overview of all functions and offers a resolution of 6 1/2 digits (2,200,000 counts). The SDM3065X is particularly suitable for the requirements of high-precision and high-precision application measurement. Features True 6½-digit measurement resolution (2,200,000 counts) 1 GB NAND flash size, mass storage configuration files and data files True RMS AC voltage and AC current measurement Standard interfaces: USB device, USB host, LAN (Optional accessories: USB-GPIB adapter) Supports dual display (Chinese and English menu) File management (support U disk and local storage) Built-in thermocouple cold terminal compensation Comes with simple, convenient and flexible sensor measurement control software: EasyDMM Mathematical function: Max, Min, Average, Standard Deviation, dBm/ dB, relative measurement, pass/fail histogram, trend chart, bar display etc. Technical data Model comparison
SDM3045X
SDM3055
SDM3055-SC
SDM3065X
SDM3065X-SC max. resolution 4½ digits 5½ digits 5½ digits 6½ digits 6½ digits max. display value 60,000 240,000 2 40,000 2,200,000 2,200,000 max. sampling rate 150 Sa/s 150 Sa/s 150 Sa/s max. 10000 Sa/s max. 10000 Sa/s Memory depth 10k readings from historical records 10k readings from historical records 10k readings from historical records 10k readings from historical Records 10k readings of historical records Interfaces USB Client, USB Host, LAN USB Client, USB Host, LAN, GPIB(optional) USB Client, USB Host, LAN, GPIB(optional) USB Client, USB Host, LAN, GPIB(optional) USB client, USB host, LAN, GPIB (optional) DC voltage measuring range 200mV-1000V 200mV-1000V 200mV-1000V 200mV-1000V 200mV-1000V AC voltage measuring range 200mV-750V 200mV-750V 200mV-750V 20 0mV-750V 200mV-750V DC Current measuring range 200µA-10A 200µA-10A 200µA-10A 200µA-10A 200µA-10A Scanner Card No No Yes No Yes
