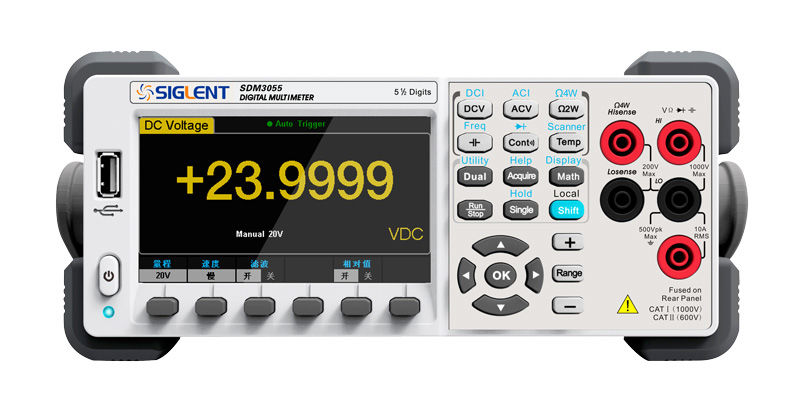

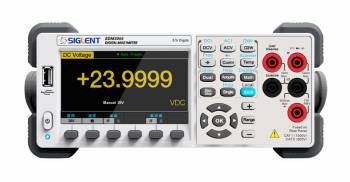

Siglent SDM3055
Digital Multimeter / The SDM3055 is a high quality digital multimeter with a memory depth of 10k.

Your rating:
Average rating
Rating for Siglent SDM3055 Digital Multimeter / The SDM3055 is a high quality digital multimeter with a memory depth of 10k.
( 0 / 5 ) 0 ratings
Siglent SDM3055Siglent SDM3055
Siglent SDM3055
This image may differ from the desired article.
478,33 EUR
( 569,21 EUR incl. VAT )
plus delivery charges
2025-11-28Delivery time on requestinfo_outline
1x Siglent SDM3055 Digital Multimeter / The SDM3055 is a high quality digital multimeter with a memory depth of 10k.
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:2082122
Mfg Part No: SDM3055
Weight:5 kg
All products of Siglent

Product information for Siglent SDM3055:

The Siglent SDM3055 has a memory depth of 10k, a measurement speed of up to 150 Sa/s and 1 GB Nand Flash. Siglent's SDM3055 can be used to perform true RMS measurements of AC voltage and AC current. With its intuitive menu navigation and convenience function, it makes it easier for the user to carry out their measurement tasks and helps to achieve more precise measurement results. The display of the SDM3055 with 10,9 cm ( 4,3 inch ) 480*272 pixels provides a good overview of all functions and offers a resolution of 5 1/2 digits (240,000 counts). Features Real 5½-digit measurement resolution (240,000 counts) Up to 150 rdgs/ s Measuring speed True RMS AC voltage and AC current measurement 1 GB NAND flash size, mass storage configuration files and data files Built-in cold terminal compensation for thermocouple temperature measurements With simple, convenient and flexible PC software: EasyDMM Standard interfaces: USB host, LAN (optional accessories USB GPIB adapter) Supports remote control operation via SCPI commands Compatible with commands from mainstream multimeters Technical data Model comparison
SDM3045X
SDM3055
SDM3055-SC
SDM3065X
SDM3065X-SC max. resolution 4½ digits 5½ digits 5½ digits 6½ digits 6½ digits max. display value 60 ,000 10000 Sa/s max Records 10k readings of historical records 10k readings of historical records Interfaces USB Client, USB Host, LAN USB Client, USB Host, LAN, GPIB(optional) USB Client, USB Host, LAN, GPIB(optional) USB Client, USB Host, LAN , GPIB(optional) USB Client, USB Host, LAN, GPIB(optional) DC voltage measuring range 200mV-1000V 200mV-1000V 200mV-1000V 200mV-1000V 200mV-1000V AC voltage measuring range 200mV-750V 200mV-750V 200mV -750V 200mV- 750V 200mV-750V DC current measuring range 200µA-10A 200µA-10A 200µA-10A 200µA-10A 200µA-10A Scanner Card No No Yes No Yes


Questions & answers

What is the delivery time of Siglent SDM3055 Digital Multimeter / The SDM3055 is a high quality digital multimeter with a memory depth of 10k.?

The article Siglent SDM3055 Digital Multimeter / The SDM3055 is a high quality digital multimeter with a memory depth of 10k. is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siglent SDM3055 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siglent SDM3055 Digital Multimeter / The SDM3055 is a high quality digital multimeter with a memory depth of 10k. always at the best possible price. We can give you a discount of 2% on Siglent SDM3055 Digital Multimeter / The SDM3055 is a high quality digital multimeter with a memory depth of 10k. if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
