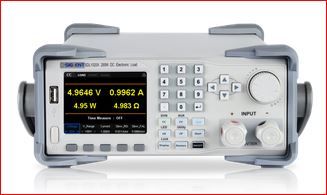

Siglent SDL1020X-E
150V / 30A 200W DC load 1 mV, 1 mA feedback

Siglent SDL1020X-E programmable DC electronic load features a 3.5 inch TFT LCD display, user-friendly interface and excellent performance features SDL1020X-E (single channel): DC 150V/30A, total power up to 200W 4 Static Modes / Dynamic Mode: CC/CV/CR/CP CC Dynamic Mode: Continuous, Pulsed, Switched CC Dynamic Mode: 25kHz, CP Dynamic Mode: 12.5kHz, CV Dynamic Mode: 0.5Hz Voltage and current measurement speed: up to 500kHz Adjustable current rise time range: 0.001A/us~2.5A/us Min. Readback resolution: 0.1mV, 0.1mA Short circuit, battery test, CR LED mode and factory test functions 4-wire SENSE compensation mode function List function supports editing up to 100 steps Program function supports 50 step groups OCP, OVP, OPP, OTP and LRV protection External analog control Voltage, current monitoring via 0-10V 3.5 inch TFT LCD display which can display multiple parameters and states simultaneously Built-in RS232/USB/LAN communication interface, USB GPIB module (optional) Waveform trend chart and user-friendly file storage and calling functions Included PC software: Supports SCPI, LabView driver Specifications Model Comparison
SDL1020X-E
SDL1020X
SDL1030X-E
SDL1030X Input power 200W 200W 300W 300W Measuring range 1mV/1mA 0.1mV/0.1mA (0-36V) 1mV/1mA 0.1mV/0.1mA (0-36V) Current fluctuation rate 0.001-2.5A/us 0.001-2.5A/us 0.001-2.5A/us 0.001-2.5A/us Display 3.5' TFT-LCD 3.5' TFT-LCD 3.5' TFT-LCD 3.5' TFT-LCD Interfaces RS232/USB/LAN/GBIP RS232/USB/LAN/GBIP RS232/USB/LAN/GBIP RS232/USB/LAN/GBIP
