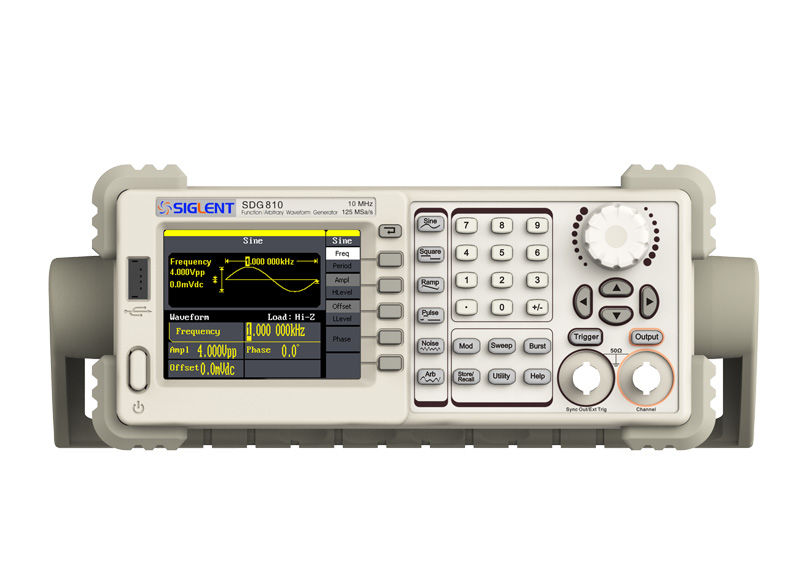

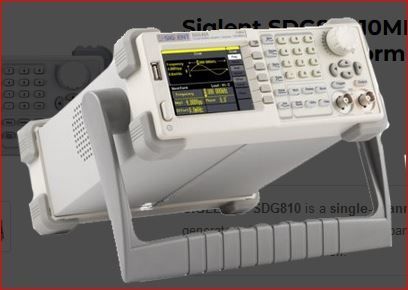

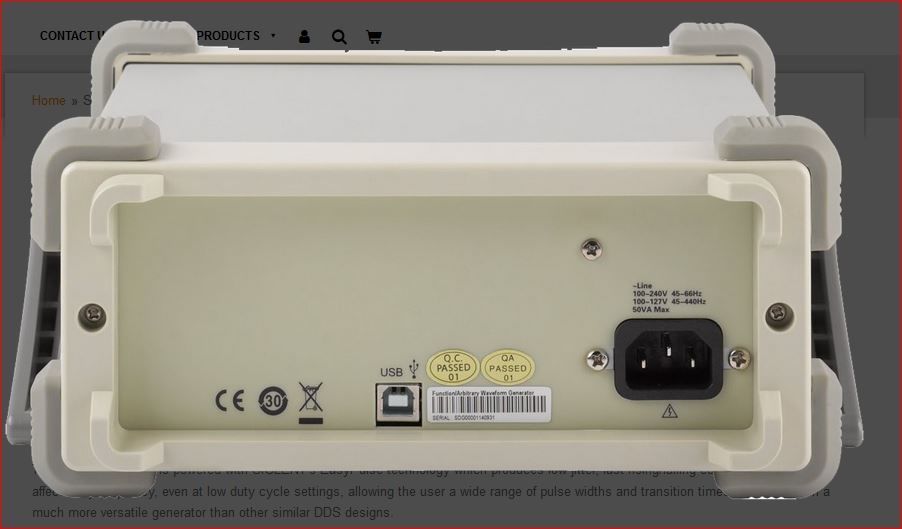

Siglent SDG810
10MHz Functional/Arbitrary Waveform Generator

The SDG810 function generator is used to generate high-quality output signals up to 10 MHz (sine) on one channel. In addition to the analog output, the devices contain a USB host and a USB device interface. The Siglent function generators have a very well thought-out and easy-to-use operation, which also offers extensive convenience functions for all tasks. The menu navigation is intuitive to use and all functions and parameters are easy to use through a graphical representation. Features Advanced DDS technology, 125 MSa/s sampling rate, 14 bit vertical resolution Single channel output, 5 standard waveforms, 46 integrated arbitrary waveforms (including DC) Full modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst Innovative EasyPulse technology, can output pulses with low jitter and fast rising/falling edges Standard interfaces: USB device, USB host, supported U disk storage 10 non-volatile storage locations for user's arbitrary waveforms Can be seamlessly connected to the SIGLENT digital storage oscilloscope Includes EasyWave, the powerful arbitrary waveform editing software Specifications Model comparison
SDG810
SDG830 Max. Frequency (Sine) 10MHz 30MHz Output Channels 1 1 Max. Sample Rate 125 MSa/S 125 MSa/S Wavelength 16 kpts 16 kpts Frequency resolution 1 µHz 1 µHz Vertical resolution 14 bits 14 bits Waveform Sine?Square?Ramp?Pulse?Gaussian white noise?Arbitrary waveform,46 kinds of built-in arbitrary waveforms Sine?Square? Ramp?Impulse?Gaussian white noise?Arbitrary waveform, 46 kinds of built-in arbitrary waveforms Sine wave 1µHz ~ 10MHz 1µHz ~ 30MHz Gaussian white noise >10MHz
bandwidth(-3dB) >30MHz
bandwidth(-3dB) Arbitrary waveform 1µHz ~ 5MHz 1µHz ~ 5MHz modulation function AM?FM?PM?DSB-AM?FSK?ASK?PWM?Sweep?Burst AM?FM?PM?DSB-AM?FSK?ASK?PWM?Sweep?Burst Standard configuration USB Host 10MHz) 4mVpp~20Vpp(= 10MHz), 4mVpp~10Vpp(>10MHz) Square wave 1µHz ~ 10MHz 1µHz ~ 10MHz Pulse 500µHz ~ 5MHz
500µHz ~ 5MHz Ramp/Triangular 1µHz ~ 300KHz 1µHz ~ 300KHz
