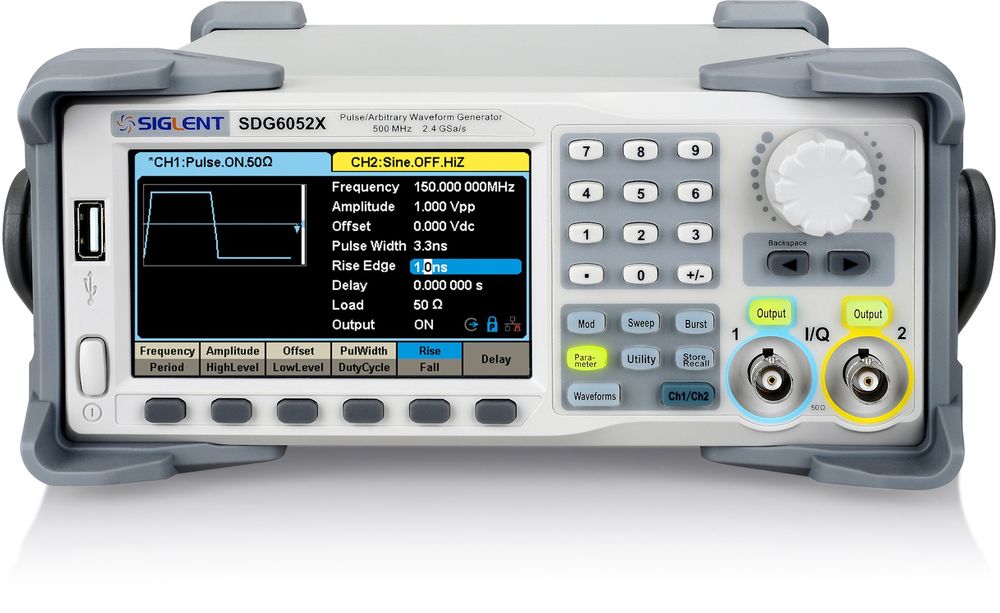

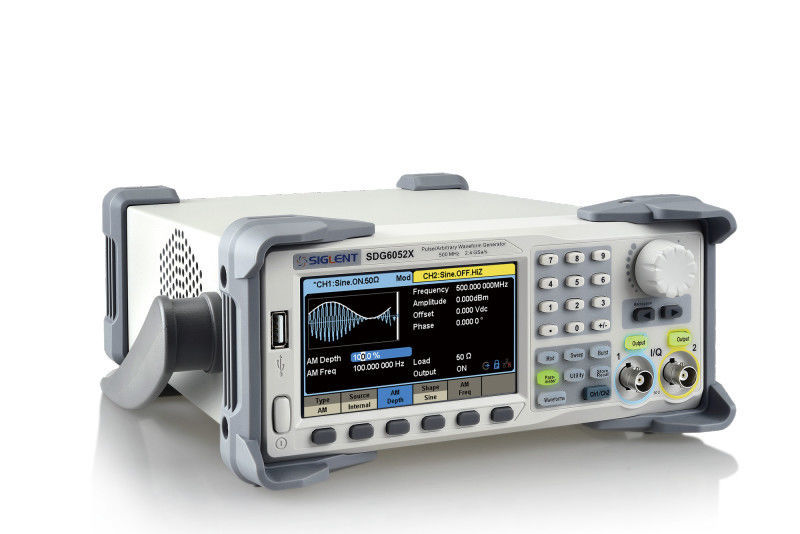

Siglent SDG6052X
500MHz Functional/Arbitrary Waveform Generator

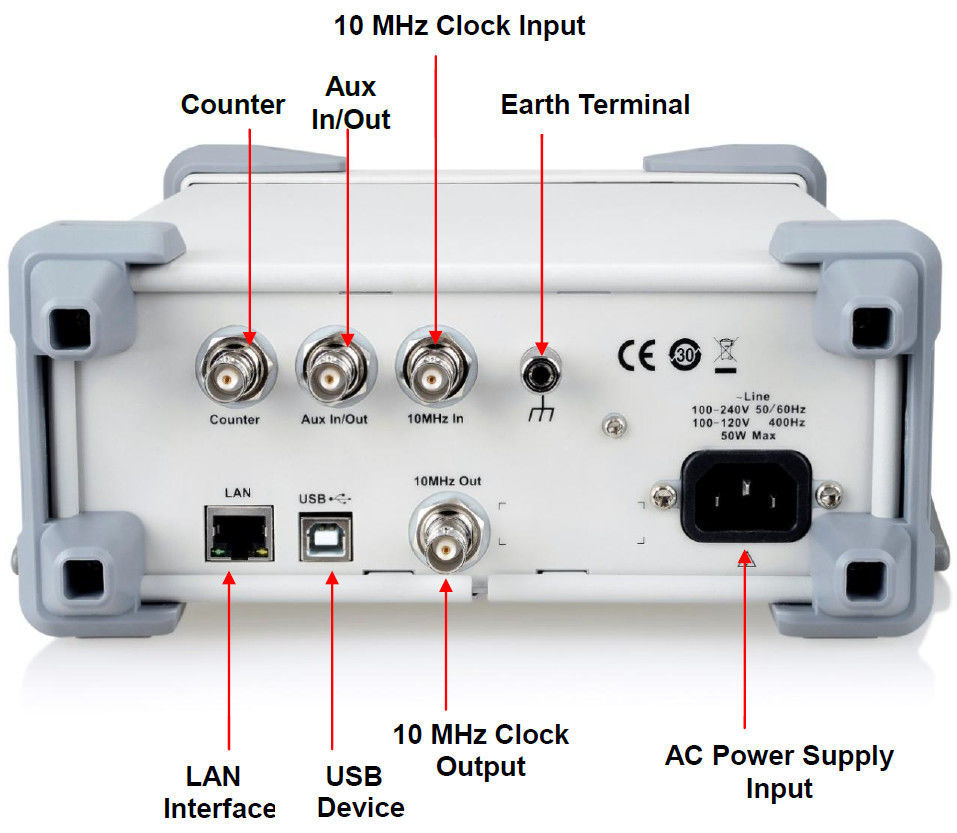

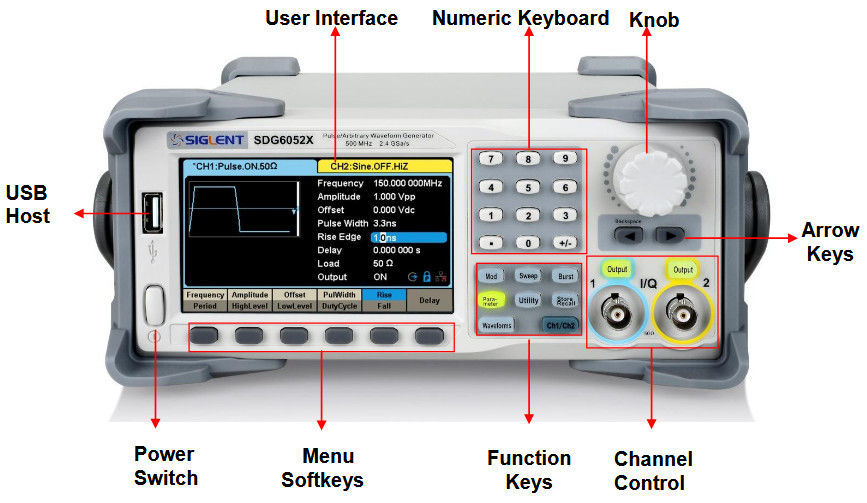

The SDG6052X is a dual-channel pulse/function generator with a bandwidth of 500 MHzFeatures Dual-channel, 500 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high-fidelity output with 80 dB dynamic range Powerful sampling system with 2.4 GSa/s sampling rate and 16 Bit of vertical resolution EasyPulse circuit reduces jitter and increases pulsed power Create baseband and IF-IQ modulated waveforms (optional) Sweep and burst function Harmonics function Signal curve combining function Channel coupling, copying and tracking function 196 integrated arbitrary signals High precision frequency counter Baseband and IF IQ signals support base modulation and any symbol rate between 250 Symb/s to 37.5 MSymb/s (optional) Standard interfaces include: USB host, USB device (USBTMC), LAN (VXI- 11, socket, Telnet). GPIB Optional (Part number USB-GPIB) 4.3-inch touchscreen display for easier operation Specifications Model comparison
SDG6022X
SDG6032X
SDG6052X Maximum output frequency 200 MHz 350 MHz 500 MHz Maximum sampling rate 2.4 GSa/s 2.4 GSa/s 2.4 GSa/s Vertical resolution 16 bit 16 bit 16 bit Signal length 20 Mpts 20 Mpts 20 Mpts Channels 2 2 2 Display 10,9 cm ( 4,3 inch ) TFT-LCD 10,9 cm ( 4,3 inch ) TFT-LCD 10,9 cm ( 4,3 inch ) TFT-LCD
