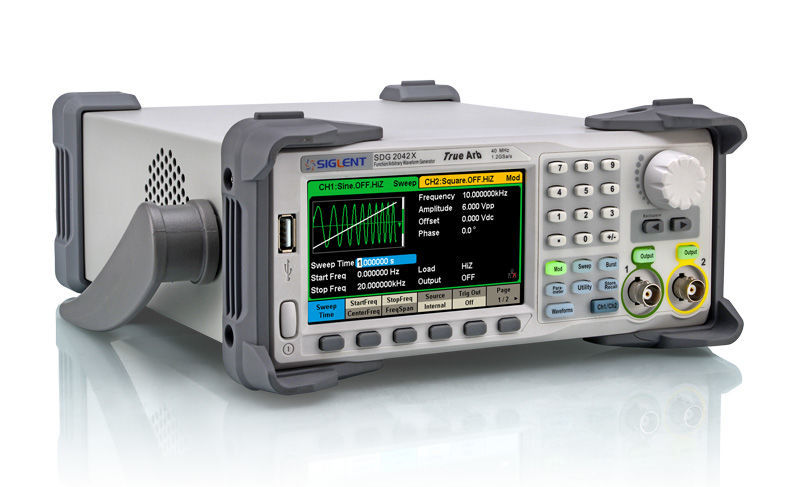

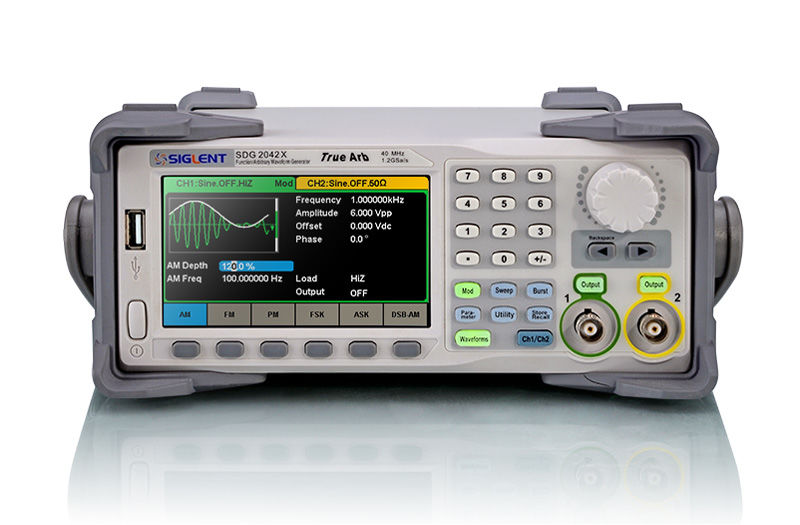

Siglent SDG2042X
40MHz Functional/Arbitrary Waveform Generator

Siglent's SDG2042XX is a dual-channel function generator with a bandwidth of 40 MHz. Features Dual channel, 40 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high-fidelity output with 80 dB dynamic range Powerful sampling system with 1.2 GSa/s sampling rate and 16 bits vertical resolution. No detail in your waveforms is lost Innovative TrueArb technology supports custom waveforms from 8 to 8 Mpts and custom sample rates from 1 µSa/s to 75 MSa/s Large touchscreen display Easily combine waveforms across a single output, including noise and arbitrary waveforms The innovative EasyPulse technology, capable of generating square or pulse waveforms with lower jitter, offers a wide range and extremely
high precision in adjusting pulse width and rise/fall times. Many analog and digital modulation types: AM, DSB -AM, FM, PM, PSK, FSK, ASK and PWM sweep and burst function, Harmonics mode supported High precision frequency counter Standard interfaces: USB device, USB host, LAN (VXI-11) and GPIB (optional) 4, 3-inch touchscreen display for easier operation Technical data Model comparison
SDG2042X
SDG2082X
SDG2122X Maximum output frequency 40 MHz 80 MHz 120 MHz Maximum sampling rate 1.2 GSa/s 1.2 GSa/s 1.2 GSa/s Vertical resolution 16 bit 16 bit 16 bit Signal length 8 pts - 8 Mpts 8 pts - 8 Mpts 8 pts - 8 Mpts Channels 2 2 2 Display 10,9 cm ( 4,3 inch ) TFT-LCD 10,9 cm ( 4,3 inch ) TFT-LCD 10,9 cm ( 4,3 inch ) TFT-LCD
