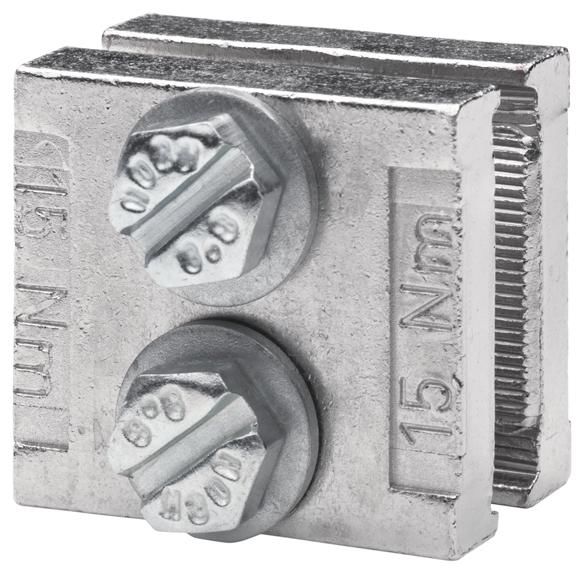

Siemens 8US19212BE00 SIEM 8US1921-2BE00 busbar system, 40.60mm busbar connector

Busbar system, accessories, bar center distance 40, 60mm, busbar connector, bar thickness: 5.10mm, width: 20-30mm, length 40mm, 8US busbar system for installing protective devices such as fuse switch disconnectors and circuit breakers - safe, space-saving, clear. The use of Siemens 8US busbar systems offers a wide range of options for installing rail-adaptable connection, switching and installation devices. The space-saving modular design and quick-assembly contacting ensure economical electrical equipment in today's distribution board construction. Assembly takes place on longitudinal beams, the bar spacing is 60 mm. The Siemens 8US busbar systems are characterized above all by: 1. Mechanical fastening and electrical contacting in one operation. 2. Worldwide approval and therefore worldwide application possibilities in mechanical and plant engineering. 3. Easy replacement of individual devices or entire combinations. 4. Installation time savings and cost reduction thanks to fully assembled consumer branches. 5. High operational reliability thanks to finger-safe cover of the adapters and device carriers. 6. Wide range of usable busbars for easy adaptation to currents up to 1,600 A. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, installation distributors as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.
Type: 8US1921-2BE00
