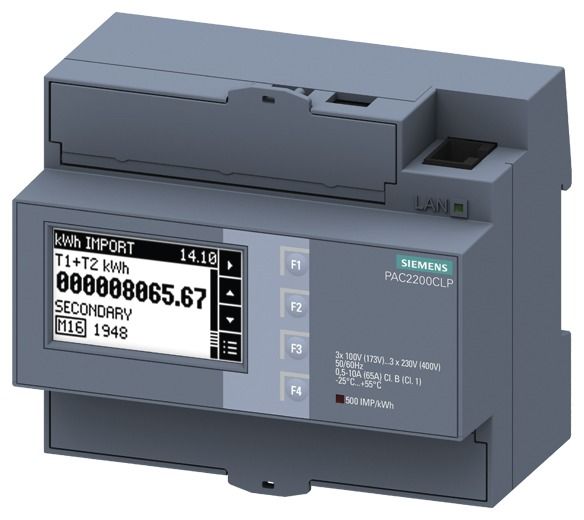

Siemens 7KM2200-2EA40-1JB1 SENTRON measuring device 7KM PAC2200

SENTRON measuring device PAC2200-CLP LL:400V, LN:230V, 65A direct DIN rail device, 6TE, 3-phase LAN interface, Modbus-TCP LC display, MID approval screw connection, self-supplied apparent / active / reactive energy certified load profile memory compliant with measurement and calibration law in accordance with PTB-A50.7 Energy meter SENTRON 7KM PAC2200 for calibrated measurement of energy consumption in single- and three-phase networks, e.g. B. in industrial plants, functional buildings, offices and apartments in multi-family houses, for billing purposes with a certified load profile (compliant with calibration law according to PTB-A50.7).The 7KM PAC 2200 energy measuring devices calibrated according to MID and PTB 50.7 (CLP) with an extended range of functions record the energy values for the feed-in, electrical outlets or individual consumers precisely, reproducibly and reliably via transformer or direct measurement up to 65 A. They not only provide comprehensive information about your electrical installation and energy distribution but also important measured values for assessing the system status. For further processing of the measured data, the devices can be very easily integrated into higher-level automation and energy management systems via Modbus TCP and PROFINET thanks to their diverse communication options.The 7KM PAC measuring devices are available in different versions, to suit the scope of your requirements.SENTRON PAC - specialists in measured value acquisition.
Type: 7KM2200-2EA40-1JB1
