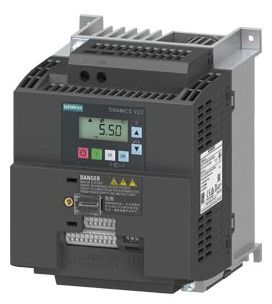

Siemens 6SL3210-5BB23-0BV1 SINAMICS V20, IP20, FSAD, B, 1 AC 200-240 V, 3.00 kW content_copy

SINAMICS V20 1AC 200-240 V -15/+10% 47-63 Hz 3 kW with 150% overload for 60 s integrated filter C1 I/O: 4 DI, 2 DQ, 2 AI, 1 AO Fieldbus: USS/Modbus with built-in BOP Protection IP20/UL unencapsulated Size: AD 136x176.5x160(WxHxD) Frequency converter SINAMICS V20. Simple. Robust. Efficient. For industrial applications and commercial applications in the voltage range 1AC 200 V to 240 V. SINAMICS V20 is characterized by short commissioning times, simple operation, robustness and cost-effectiveness. The converter can be operated straight out of the packaging without additional modules. To increase energy efficiency, the converter is equipped with an energy-optimized control method with automatic flux reduction. It also shows the current energy consumption and has other integrated energy-saving functions. The keep-running mode enables stable operation even under difficult and fluctuating network conditions. The converter is available in nine sizes in a power range from 0.12 kW to 30 kW for operation on single- and three-phase networks (1AC 200 V to 240 V, 3AC 380 V to 480 V). The SINAMICS V20 can be individually adapted to the requirements of the application using various options, such as a local Basic Operator Panel (BOP) or mobile SINAMICS V20 Smart Access Module, BOP interface, standard network cable, line filter, braking resistors, shielding, etc. It also enables simple system configuration with predefined macros in the converter and ready-made function blocks from the Totally Integrated Automation Portal (TIA Portal) for quick connection, for example, to a SIMATIC S7-1200 controller. The SINAMICS V20 basic converter is a technical and economical alternative to the Micromaster 420 frequency converter. SINAMICS - simply my drive.
Type: 6SL3210-5BB23-0BV1
