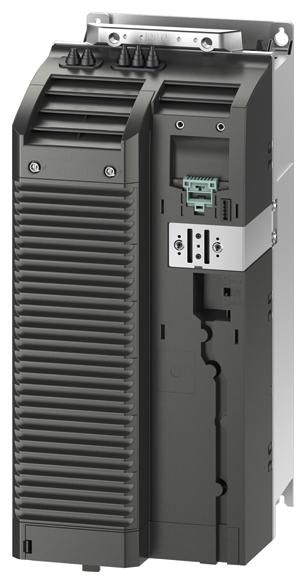

Siemens 6SL32101RE260UL0 SINAMICS G120 Power Module PM240P-2 unfiltered

SINAMICS G120 Power Module PM240P-2 unfiltered, 3AC380-480V+10/-20% 47-63Hz High overload power: 22kW at 150% 60S, 100% 240S, ambient temperature -20 to +50°C(HO), Low overload power: 30kW at 135% 3S, 110% 57S, 100% 240S, ambient temperature -20 to +40°C (LO) 472x 200x 237 (HxWxD), FSD protection class IP20 without control unit and operator panel released from CU firmware version V4.7 SP6 HF1 Power Module SINAMICS Power Module PM240P-2 protection class IP20 for industrial applications in the process industry for the SINAMICS G120P frequency converter. The power modules are available for use in the water/wastewater sector and for industrial applications. The new PM240P-2 power modules are based on a new hardware platform, which enables a higher power density. The PM240P-2 power modules are also suitable for use in safety-related applications. In conjunction with an external trip unit (e.g. SIRIUS 3SK1), the drive becomes a Safety Integrated Drive with the Safe Torque Off safety function with a maximum Safety Integrity Level of SIL 3. Another advantage of the power module is its robustness, as it can also be used in increased environmental conditions such as temperatures from -10° to 60° and in aggressive environments (pollutant resistance). In addition, there is increased energy efficiency with a higher output voltage (98 percent) thanks to an integrated DC link choke. This power module does not contain an integrated brake chopper and the permissible cable lengths are limited between the converter and the motor. Output chokes can be connected to allow longer cable lengths. The PM240P-2 Power Modules in frame sizes FSD to FSF are available with and without an integrated Class A line filter in a compact design in a three-phase voltage range from 380 V to 480 V and in a three-phase voltage range from 500 V to 690 V. The PM240P-2 Power Modules with an integrated Class A line filter are suitable for connection to TN networks. The Power Modules without an integrated line filter are suitable for connection to grounded TN/TT and ungrounded IT networks. Shield plates and shield connection kits are available for EMC-compliant wiring of the Control Units and Power Modules. SINAMICS - simply my drive.
Type: 6SL3210-1RE26-0UL0
